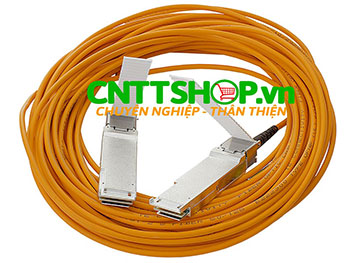

HPE 720211-B21 BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable

Name: 720211-B21
Brand: HPE
SKU: 720211-B21
Availability: InStock
Rating: 5 (7 reviews)

View Datasheet 720211-B21

Thông số kỹ thuật

Part Number	720211-B21
Description	HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable
Length	49.21 ft. (15 m)
Weight	0.57 lb., Fully loaded the cable with a QSFP+ transceiver at each end of the cable
Environment	Operating temperature: 32°F to 158°F (0°C to 70°C) Operating relative humidity: 5% to 95%, noncondensing Nonoperating/Storage temperature: -40ºF to 185ºF (-40ºC to 85ºC) Nonoperating/Storage relative humidity: 0% to 80%, noncondensing Altitude: Up to 10,000 ft. (3 km)
Electrical characteristics	1.5 watts maximum per transceiver end
Notes	Electrical Properties Cable Characteristic Impedance: Non-conductive Crosstalk between pairs: 26dB max Time delay: 1.57 nsec/ft o BER: 10-15 max Physical Properties Cable Diameter: 3 mm Minimum Cable Bend Radius: 25mm
