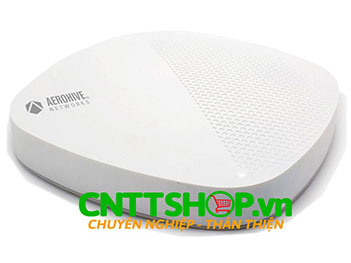

Aerohive AH-AP-630-AX-FCC AP630 Plenum 4x4:4 802.11ax Access Point

WI-FI

Wireless Frequency Range

• USA: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz, 5.725 ~ 5.85 GHz
• Europe: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
• Japan: 2.400 ~ 2.497 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
• China: 2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz

Channel Support

802.11 b/g/n/ax
• US/Canada: 11 (1 ~ 11)
• Europe: 13 (1 ~ 13)
• Japan: 11b: 14 (1~13 or 14th), 11g: 13 (1 ~ 13)
• China: 13 (1 ~ 13)
802.11 a/n/ac/ax
• US/Canada: 24 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108,112,116,120,124,128,132,136,140; 149,153,157,161,165)
• Europe: 19 non-overlapping channel (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
• Japan: 19 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
• China: 5 non-overlapping channels (149,153,157,161,165)

Modulation Technology

802.11 Legacy a/b/g
• DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
• DSSS (Direct Sequence Spread Spectrum) with DBPSK (Differential Binary Phase Shift Keying 1 Mbps), DQPSK (Differential Quaternary Phase Shift Keying 2 Mbps), and CCK (Complementary Code Keying 5.5 & 11 Mbps), and OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6, 9 Mbps. QPSK for 12, 18 Mbps; 16QAM for 24, 36 Mbps; 64QAM for 48, 54 Mbps)
802.11n
• OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac
• OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax
• OFDMA (1024-QAM)

Mounting

• Wall or ceiling mount
• TPM chip for added security

Interfaces

•2x 10/100/1000 Gigabit Ethernet
• USB support for future IoT use cases
• Console port for CLI access
• Built in BLE for iBeacon and beacon management applications

Radios

• Dual Radio AP, 2.4 GHz and 5 GHz, simultaneous dual band
• 2.4 GHz, 802.11b/g/n/ax, 4x4
• 5 GHz, 802.11 a/n/ac/ax, 4x4
• 160 MHz, 1024-QAM supported

Environmental

• Operating Temperature: 0 to 40° C
• Storage Temperature: -40 to 70° C
• Humidity: 10 to 95%
• MTBF: >500,000 Hours @ 25º C (estimate)
• RoHS: -2 Compliant

Power Consumption

• 802.3at PoE Power: Typical 15.4 W, Max 17.82 W

Physical

• Dimensions: 205mm x 205mm x 37mm
• Weight: 2.53lb (1.15kg)

Antenna

• 4x Dual Band, omnidirectional antenna plus 1x internal Bluetooth/ZigBee antenna
Peak Antenna Gain:
• 2.4 GHz omnidirectional, gain 4.8 dBi
• 5 GHz omnidirectional, gain 5.2 dBi
• Bluetooth/ZigBee omnidirectional, gain 4.2 dBi
