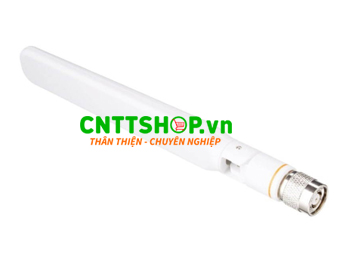

External Antenna Cisco AIR-ANT2524DW-RS
| AIR-ANT2524DW-RS Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật AIR-ANT2524DW-RS
| Parameter | Specifications |
| Antenna type | Dual-band dipole |
| Operating frequency range | 2400 to 2500 MHz 5150 to 5850 MHz |
| Nominal input impedance | 50 Ohms |
| VSWR | Less than 2:1 |
| Peak Gain @ 2.4. GHz | 2 dBi |
| Peak Gain @ 5 GHz | 4 dBi |
| Elevation plane 3dB beamwidth @2.4 GHz | 63 degrees |
| Elevation plane 3dB beamwidth @ 5 GHz | 39 degrees |
| Connector type | RP-TNC plug |
| Antenna length | 6.63 in. (168.5 mm) |
| Antenna width | 0.83 in (21 mm) |
| Radome length | 4.88 in. (124 mm) |
| Weight | 1.3 oz |
| Operating temperature | –4° to 140°F (–20°C to 60°C) |
| Storage temperature | –40°F to 185°F (–40°C to 85°C) |
| Environment | Indoor, office |
Bạn đang cần tư vấn về sản phẩm: AIR-ANT2524DW-RS ?
