- 2.4 GHz, gain 2 dBi

- 5 GHz, gain 4 dBi

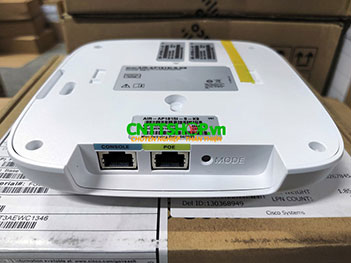

- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

- Management console port (RJ-45)

- Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

- Operating

- Temperature: 32° to 104°F (0° to 40°C)

- Humidity: 10% to 90% (noncondensing)

- Max. altitude: 9843 ft (3000 m) @ 40°C

- Nonoperating (storage and transportation)

- Temperature: -22° to 158°F (-30° to 70°C)

- Humidity: 10% to 90% (noncondensing)

- Max. altitude: 15,000 ft (4500 m) @ 25°C

- 1 GB DRAM

- 256 MB flash

- 710 MHz quad core

- 802.3af/at Ethernet switch

- Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

- 8.3W (maximum, on PoE)

- Torx security screw, included with the access point

- Mounting bracket: AIR-AP-BRACKET8= (available as spare)

- Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1

- Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385

- IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac

- Security: 802.11i, WPA2, WPA, 802.1X, AES

- Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)

- Multimedia: Wi-Fi Multimedia (WMM)

- Other: FCC Bulletin OET-65C, RSS-102

- Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

- 802.1X, RADIUS authentication, authorization and accounting (AAA)

- 802.11r

- 802.11i

- Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later

- Cisco Mobility Express

- 2x2 single-user/multiuser MIMO with two spatial streams

- Maximal ratio combining (MRC)

- 20-, 40-, and 80-MHz channels

- PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

- 802.11 Dynamic Frequency Selection (DFS)

- Cyclic shift diversity (CSD) support

- Authentication with 802.1X or MAC filtered

- Dynamic VLAN or per port

- Traffic locally switched or tunneled back to wireless LAN controller
