| Integrated antennas |
Flexible radio (either 2.4 GHz or 5 GHz)
- 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
- 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
Dedicated 5-GHz radio
- 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
|
| External antenna (sold separately) |
- 3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
- 3802p Series access points are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR‑ANT2513-P4M-N= antenna
- Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
|
| Smart Antenna Connector |
- Available on the 3802e Series and 3802p Series access points only
- Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
- Required when running the flexible radio as either a:
◦ Second 5-GHz serving radio
◦ Wireless Security Monitoring radio
|

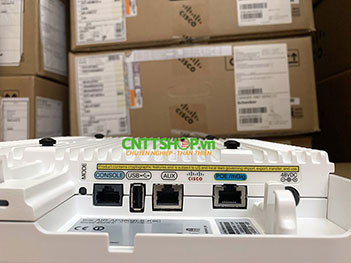

| Interfaces |
◦ 2 Ethernet ports
◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
◦ CAT 5e cabling
◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling
◦ 100/1000BASE-T autosensing (RJ-45 - AUX port)
◦ Management console port (RJ-45)
|
| Indicators |
- Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
| Dimensions (W x L x H) |
- Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm) |
| Weight |
- 4.6 lb (2.09 kg) |
| Environmental |
- Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
- Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
- Operating temperature: -4° to 122°F (-20° to 50°C)
- Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft.
|
| System |
- 1024 MB DRAM
- 256 MB flash
|
| Powering options |
- 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®)
- 802.3at power injector (AIR-PWRINJ6=)
- 50W power supply (AIR-PWR-50=)
|
| Power draw |
- 30W at the PSE (25.5W at the PD) with all features enabled except for the USB 2.0 port
- 34W at the PSE (31.1W at the PD) with the USB 2.0 port enabled
|
| Compliance |
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1
- Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385
- IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac
- Security: 802.11i, WPA2, WPA, 802.1X, AES
- Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)
- Multimedia: Wi-Fi Multimedia (WMM)
- Other: FCC Bulletin OET-65C, RSS-102
|
| Software and supported wireless LAN controllers |
- Cisco Unified Wireless Network Software Release 8.2.111.0 or later
- Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
- Cisco IOS® XE Software Release 16.3
- Cisco Catalyst 3850 Series and 3650 Series Switches
|
| 802.11n version 2.0 (and related) capabilities |
- 4x4 MIMO with three spatial streams
- Maximal ratio combining (MRC)
- 802.11n and 802.11a/g beamforming
- 20- and 40-MHz channels
- PHY data rates up to 450 Mbps (40 MHz with 5 GHz).
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- 802.11 dynamic frequency selection (DFS)
- Cyclic shift diversity (CSD) support
|
| 802.11ac Wave 1 capabilities |
- 4x4 MIMO with three spatial streams
- MRC
- 802.11ac beamforming
- 20-, 40-, and 80-MHz channels
- PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- 802.11 DFS
- CSD support
|
| 802.11ac Wave 2 capabilities |
- 4x4 MU-MIMO with three spatial streams
- MRC
- 802.11ac beamforming
- 20-, 40-, 80, 160-MHz channels
- PHY data rates up to 5.2 Gbps
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- 802.11 DFS
- CSD support
|
Bạn đang cần tư vấn về sản phẩm: AIR-AP3802I-S-K9C ?
Cảm ơn bạn đã quan tâm sản phẩm của CNTTShop.Sản phẩm Cnttshop phân phối khách hàng sẽ được hỗ trợ cấu hình cơ bản miễn phí qua teamview bạn nhé.
Chào anh/chị, bộ phát wifi Cisco AIR-AP3802I-S-K9C không có tính năng chống nước.
Theo hãng công bố thì Có thể chạy tối đa 100 bộ wifi Cisco AIR-AP3802I-S-K9C với nhau mà không cần dùng controller
Chào anh/chị, với os Mobility express có thể chạy tối đa 100 AP Cisco AIR-AP3802I-S-K9C mà không cần đến controller cứng.
Chào anh/chị, wifi Cisco AIR-AP3802I-S-K9C có thể kết nối được với controller Cisco 2504, tuy nhiên anh/chị vui lòng kiểm tra xem controller còn đủ license AP để thêm thiết bị không.
