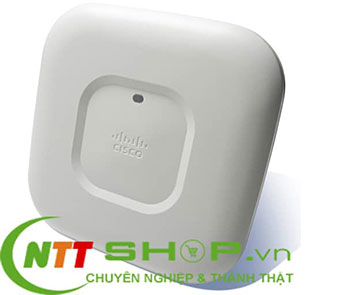

Cisco wifi AIR-CAP1702I-E-K9 Aironet wireless 1700 Access Point Dual-band, controller-based 802.11a/g/n/ac internal antennas.

-  2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

-  5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

-  2x10/100/1000BASE-T autosensing (RJ-45)

-  Management console port (RJ-45)

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

-  Non-operating (storage) temperature: −22° to 158°F (-30° to 70°C)

-  Non-operating (storage) altitude test: 25˚C, 15,000 ft.

-  Operating temperature: 32° to 104°F (0° to 40°C)

-  Operating humidity: 10% to 90% percent (non-condensing)

-  Operating altitude test: 40˚C, 9843 ft.

-  512 MB DRAM

-  64 MB flash

-  802.3af PoE

-  802.3at PoE+

-  Enhanced PoE

-  Cisco AP1700 power injectors (AIR-PWRINJ5=)

-  Cisco AP1700 local power supply (AIR-PWR-B=)

-  AP1700: 15W

-  Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1

-  Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385

-  IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac

-  Security: 802.11i, WPA2, WPA, 802.1X, AES

-  Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)

-  Multimedia: Wi-Fi Multimedia (WMM)

-  Other: FCC Bulletin OET-65C, RSS-102

Cisco Unified Wireless Network Software Release 8.0 or later

Cisco Autonomous AP IOS Software Release 15.3.3-JAB or later

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst^® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller; Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

-  3x3 MIMO with two spatial streams

-  Maximal ratio combining (MRC)

-  802.11n and 802.11a/g beamforming

-  20- and 40-MHz channels

-  PHY data rates up to 300 Mbps (40 MHz with 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 Dynamic Frequency Selection (DFS)

-  Cyclic shift diversity (CSD) support

-  3x3 MIMO with two spatial streams

-  MRC

-  802.11ac standard explicit beamforming

-  20-, 40-, and 80-MHz channels

-  PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 DFS

-  CSD support
