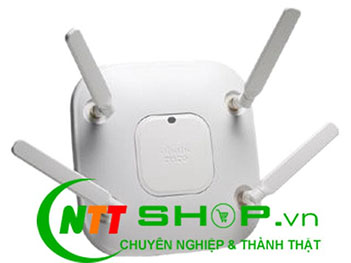

Bộ phát wifi AIR-CAP3602E-E-K9 Cisco Aironet wireless 3600 Dual-band controller-based 802.11a/g/n access points.
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Mô tả Cisco Aironet AIR-CAP3602E-E-K9:
Bộ phát wifi Cisco Aironet AIR-CAP3602E-E-K9 access point là bộ phát wifi chuẩn 802.11a/g/n với antena được thiết kế ở bên ngoài thuộc dòng Cisco Aironet wireless 3600 Access Point. Bạn có thể gắn cisco wireless trên bàn hoặc trên tường sử dụng bộ kit đi kèm. Cisco Aironet AIR-CAP3602E-E-K9 hỗ trợ cả 2 dải tần là 2.4 GHz 4x4 802.11a/g/n MIMO và 5 GHz 4x4 802.11a/g/n MIMO.
Công nghệ Cisco CleanAir® Express Spectrum Intelligence cung cấp tính năng chống nhiễu sóng DF và cung cấp khả năng phân tích quang phổ cơ bản trong khi đơn giản hóa các hoạt động trên các kênh 20, 40 MHz.
Cisco wireless AIR-CAP3602E-E-K9 cung cấp kết nối có dây và không dây cho các doanh nghiệp với tốc độ cao và độ bảo mật cao. AP cho phép nhân viên có thể truy cập dữ liệu, thoại, video và điện toán đám mây từ xa, phù hợp với các văn phòng công ty có số lượng laptop điện thoại di động hay các thiết bị không dây lớn và cần tốc độ truy cập cao.
Cisco AIR-CAP3602E-E-K9 Access Point sử dụng công nghệ mới 802.11n, cung cấp tốc độ lý thuyết lên tới 450Mbps ở dải tần 5GHz cho công suất và độ tin cậy cao hơn. Bên cạnh đó cisco wireless AIR-CAP3602E-E-K9 hỗ trợ công nghệ multiple-input multiple-output (MIMO) đa luồng cho phép truyền tải dữ liệu với nhiều sóng 802.11n giúp cải thiện trải nghiệm của khách hàng. Công nghệ Cisco ClientLink 2.0 được tích hợp giúp cải thiện hiệu năng kết nối đến các thiết bị di động, bao gồm các thiết bị 1, 2 và 3 luồng trên 802.11n, đồng thời cải thiện tuổi thọ pin trên các thiết bị di động như điện thoại thông minh và máy tính bảng.
View Datasheet Aironet 3600 series
Thông số kỹ thuật Cisco Aironet AIR-CAP3602E-E-K9:
Integrated antennas |
- 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360°
- 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°
|
Interfaces |
- 10/100/1000BASE-T autosensing (RJ-45)
- Management console port (RJ-45)
|
Indicators |
- Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
Dimensions (W x L x H) |
- Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm) |
Weight |
- 2.5 lb (1.13 kg) |
Environmental |
- Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
- Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft.
- Operating temperature: -4 to 131°F (-20 to 55°C)
- Operating humidity: 10 to 90 percent (noncondensing)
- Operating Altitude Test -40˚C, 9843 ft.
|
System |
- 256-MB DRAM
- 32-MB flash
|
Powering options |
- AP3600: 44 to 57 VDC
- Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
|
Compliance |
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1
- Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385
- IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac
- Security: 802.11i, WPA2, WPA, 802.1X, AES
- Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)
- Multimedia: Wi-Fi Multimedia (WMM)
- Other: FCC Bulletin OET-65C, RSS-102
|
Software |
Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:
- 7.2 or later for the Cisco Aironet 3600 Series Access Point
- 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point
- 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point
Cisco IOS XE Software Release:
- 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point
- 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point
- Wireless Security Module for the 3600 Series Access Point support
|
Supported wireless LAN controllers |
AireOS Wireless Controllers
- Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
Cisco IOS Wireless Controllers
- Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
|
802.11n version 2.0 (and related) capabilities |
- 4x4 multiple-input multiple-output (MIMO) with three spatial streams
- Maximal ratio combining (MRC)
- 802.11n and 802.11a/g beamforming
- 20- and 40-MHz channels
- PHY data rates up to 450 Mbps (40-MHz with 5 Ghz)
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- 802.11 dynamic frequency selection (DFS)
- Cyclic shift diversity (CSD) support
|
Quý khách có thể xem thêm các dòng cisco Aironet wireless access point series với các tính tương tự
Bạn đang cần tư vấn về sản phẩm: AIR-CAP3602E-E-K9 ?
