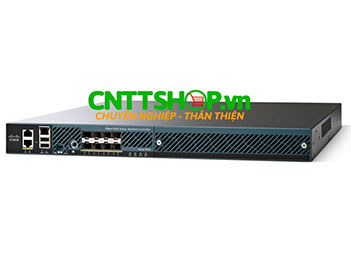

AIR-CT5508-12-K9 Cisco 5508 Series Wireless Controller for up to 12 APs

Cisco AIR-CT5508-12-K9 5500 Wireless Controller for 12 Cisco access points, Support up to 500 access points và 7000 Client, 8 (5508) 1000BaseT, 1000Base-SX and 1000Base-LH transceiver slots

Mã sản phẩm: AIR-CT5508-12-K9



CHI TIẾT

Cisco AIR-CT5508-12-K9 5500 Series Wireless Controller for up to 12 APs

Part Number           : AIR-CT5508-12-K9
List Price                  : $10,995

Bảo hành                 : 12 tháng
Made In                   : Asia

Bộ điều khiển không dây Cisco AIR-CT5508-12-K9 cung cấp điều khiển tập trung, quản lý và khắc phục sự cố cho việc triển khai quy mô lớn trong nhà cung cấp dịch vụ và triển khai khuôn viên lớn. Cisco AIR-CT5508-12-K9 cung cấp sự linh hoạt để hỗ trợ nhiều chế độ triển khai trong cùng một bộ điều khiển: ví dụ, chế độ tập trung cho khuôn viên trường, chế độ Cisco FlexConnect ™ cho các chi nhánh được quản lý qua mạng WAN và chế độ mesh (cầu nối) để triển khai trong các trường hợp khó khăn trong việc đi dây mạng.

View Datasheet

Cisco AIR-CT5508-12-K9 được tối ưu hóa cho hiệu suất cho các mã wifi 802.11ac Wave2, quy mô lớn và thời gian hoạt động của hệ thống nâng cao, cùng với nền tảng Cisco DNA, có khả năng mở rộng, linh hoạt, cho phép các mạng không dây thế hệ tiếp theo dành cho các doanh nghiệp có quy mô vừa và lớn.

Cisco AIR-CT5508-12-K9 5500 Series Wireless Controller for up to 100 APs

Thông số kỹ thuật Cisco AIR-CT5508-12-K9

Item

Specifications

Scalability and performance

Supports 12, 25, 50,100, 250, or 500 access points for business-critical wireless services at locations of all sizes

Wireless

IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11k, 802.11n, 802.11r, 802.11u, 802.11w, 802.11ac

Wired, switching, and routing

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q Vtagging, and IEEE 802.1AX Link Aggregation.

Data Request For Comments (RFC)

●  RFC 768 UDP
●  RFC 791 IP
●  RFC 2460 IPv6 (pass through Bridging mode only)
●  RFC 792 ICMP
●  RFC 793 TCP
●  RFC 826 ARP
●  RFC 1122 Requirements for Internet Hosts
●  RFC 1519 CIDR
●  RFC 1542 BOOTP
●  RFC 2131 DHCP
●  RFC 5415 CAPWAP Protocol Specification
●  RFC 5416 CAPWAP Binding for 802.11

Security standards

●  WPA
●  IEEE 802.11i (WPA2, RSN)
●  RFC 1321 MD5 Message-Digest Algorithm
●  RFC 1851 The ESP Triple DES Transform
●  RFC 2104 HMAC: Keyed Hashing for Message Authentication
●  RFC 2246 TLS Protocol Version 1.0
●  RFC 2401 Security Architecture for the Internet Protocol
●  RFC 2403 HMAC-MD5-96 within ESP and AH
●  RFC 2404 HMAC-SHA-1-96 within ESP and AH
●  RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV
●  RFC 2406 IPsec
●  RFC 2407 Interpretation for ISAKMP
●  RFC 2408 ISAKMP
●  RFC 2409 IKE
  RFC 2451 ESP CBC-Mode Cipher Algorithms
●  RFC 3280 Internet X.509 PKI Certificate and CRL Profile
●  RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec
●  RFC 3686 Using AES Counter Mode with IPsec ESP
●  RFC 4347 Datagram Transport Layer Security
●  RFC 4346 TLS Protocol Version 1.1

Encryption

●  WEP and TKIP-MIC: RC4 40, 104 and 128 bits (both static and shared keys)
●  AES: CBC, CCM, CCMP
●  DES: DES-CBC, 3DES
●  SSL and TLS: RC4 128-bit and RSA 1024- and 2048-bit
●  DTLS: AES-CBC
  IPSec: DES-CBC, 3DES, AES-CBC

Authentication, Authorization, and Accounting (AAA)

●  IEEE 802.1X
●  RFC 2548 Microsoft Vendor-Specific RADIUS Attributes
●  RFC 2716 PPP EAP-TLS
●  RFC 2865 RADIUS Authentication
●  RFC 2866 RADIUS Accounting
●  RFC 2867 RADIUS Tunnel Accounting
●  RFC 2869 RADIUS Extensions
●  RFC 3576 Dynamic Authorization Extensions to RADIUS
●  RFC 5176 Dynamic Authorization Extensions to RADIUS
●  RFC 3579 RADIUS Support for EAP
●  RFC 3580 IEEE 802.1X RADIUS Guidelines
●  RFC 3748 Extensible Authentication Protocol
●  Web-based authentication
●  TACACS support for management users

Management

●  SNMP v1, v2c, v3
●  RFC 854 Telnet
●  RFC 1155 Management Information for TCP/IP-Based Internets
●  RFC 1156 MIB
●  RFC 1157 SNMP
●  RFC 1213 SNMP MIB II
●  RFC 1350 TFTP
●  RFC 1643 Ethernet MIB
●  RFC 2030 SNTP
●  RFC 2616 HTTP
●  RFC 2665 Ethernet-Like Interface types MIB
●  RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions
●  RFC 2819 RMON MIB
●  RFC 2863 Interfaces Group MIB
●  RFC 3164 Syslog
●  RFC 3414 User-Based Security Model (USM) for SNMPv3
●  RFC 3418 MIB for SNMP
●  RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs
●  Cisco private MIBs

Management interfaces

●  Web-based: HTTP/HTTPS
●  Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port
●  Cisco Wireless Control System (WCS)

Interfaces and indicators

●  Uplink: 8 (5508) 1000BaseT, 1000Base-SX and 1000Base-LH transceiver slots
●  Small Form-Factor Pluggable (SFP) options (only Cisco SFPs supported): GLC-T, GLC-SX-MM, GLC-LH-SM
●  LED indicators: link
  Service Port: 10/100/1000 Mbps Ethernet (RJ45)
●  Service Port: 10/100/1000 Mbps Ethernet (RJ45) For High Availability for future use
●  LED indicators: link
●  Utility Port: 10/100/1000 Mbps Ethernet (RJ45)
●  LED indicators: link
●  Expansion Slots: 1 (5508)
●  Console Port: RS232 (DB-9 male/RJ-45 connector included), mini-USB
●  Other Indicators: Sys, ACT, Power Supply 1, Power Supply 2

Physical dimensions

●  Dimensions (WxDxH): 17.30 x 21.20 x 1.75 in. (440 x 539 x 44.5 mm)
●  Weight: 20 lbs (9.1 kg) with 2 power supplies

Environmental conditions

●  Temperature: Operating temperature: 32 to 104°F (0 to 40°C); Storage temperature: -13 to 158°F (‑25 to 70°C)
●  Humidity: Operating humidity: 10 95%, noncondensing. Storage humidity: up to 95%
●  Input power: 100 to 240 VAC; 50/60 Hz; 1.05 A at 110 VAC, 115W Maximum; 0.523 A at 220 VAC, 115W Maximum; Test Conditions: Redundant Power Supplies, 40C, Full Traffic
●  Heat Dissipation: 392 Btu/hour at 110/220 VAC Maximum

Regulatory compliance

CE Mark

Safety:

●  UL 60950-1:2003
●  EN 60950:2000
●  EMI and susceptibility (Class A)
●  U.S.: FCC Part 15.107 and 15.109
●  Canada: ICES-003
●  Japan: VCCI
●  Europe: EN 55022, EN 55024

AIR-CT5508-12-K9 Options

Part Number

Product Name

AIR-PWR-5500-AC=

5500 Series Wireless Controller Redundant AC Power Supply

AIR-FAN-5500=

5500 Series Wireless Controller Fan Tray

AIR-CT5500-RK-MNT

5500 Series Wireless Controller Spare mounting kit

AIR-CT5508-12-K9 License (e-Delivery Product Authorization Keys [PAKs])

Product Description

SWSS Service 8x5xNBD

L-LIC-CT5508-UPG

Primary upgrade SKU: Pick any number or combination of the following options under this SKU to upgrade one or many controllers under one product authorization key

CON-SNT-LCTUPG

L-LIC-CT5508-5A

5 AP Adder License for the 5508 Controller (eDelivery)

CON-ECMU-LICCT55A

L-LIC-CT5508-25A

25 AP Adder License for the 5508 Controller (eDelivery)

CON-ECMU-LCT25A

L-LIC-CT5508-50A

50 AP Adder License for the 5508 Controller (eDelivery)

CON-ECMU-LCT50A

L-LIC-CT5508-100A

100 AP Adder License for the 5508 Controller (eDelivery)

CON-ECMU-LCT100A

L-LIC-CT5508-250A

250 AP Adder License for the 5508 Controller (eDelivery)

CON-ECMU-LCT250A

AIR-CT5508-12-K9 License (Paper PAKs)

Part Number

Product Description

SWSS Service 8x5xNBD

Paper License

LIC-CT5508-UPG

Primary upgrade SKU: Pick any number or combination of the following options under this SKU, to upgrade one or many controllers under one product authorization key

CON-ECMU-LCTUPG

LIC-CT5508-5A

5 AP Adder License for the 5508 Controller

CON-ECMU-LICCT55A

LIC-CT5508-25A

25 AP Adder License for the 5508 Controller

CON-ECMU-LCT25A

LIC-CT5508-50A

50 AP Adder License for the 5508 Controller

CON-ECMU-LCT50A

LIC-CT5508-100A

100 AP Adder License for the 5508 Controller

CON-ECMU-LCT100A

LIC-CT5508-250A

250 AP Adder License for the 5508 Controller

CON-ECMU-LCT250A
