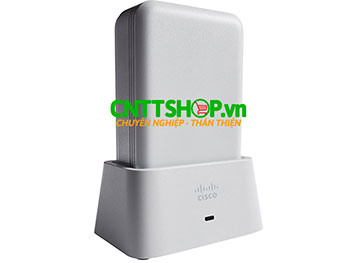

AIR-OEAP1810-E-K9 Cisco Aironet wireless 1810 Series Access Point

Cisco wifi AIR-OEAP1810-E-K9 wireless 1810 802.11ac Wave 2 OfficeExtend access point. Data rates up to 866.7 Mbps, 1x1000BASE-T PoE uplink port. Not include power.

Mã sản phẩm: AIR-OEAP1810-E-K9



CHI TIẾT

Cisco wifi AIR-OEAP1810-E-K9 Cisco Aironet wireless 1810 OfficeExtend Access Point 802.11ac Wave 2 OfficeExtend access point

Cisco Part Number     : AIR-OEAP1810-E-K9
Bảo hành                       : 12 tháng
List Price                         : $695
Stock                              : Liên hệ

Mô tả Cisco Aironet AIR-OEAP1810-E-K9:

Bộ phát wifi Cisco Aironet AIR-OEAP1810-E-K9 OfficeExtend access point là bô phát wifi chuẩn 802.11 a/b/g/n/ac (Wave 2) với antena được thiết kế ở bên trong. Cisco Aironet AIR-OEAP1810-E-K9 hỗ trợ cả 2 dải tần là 2.4 GHz 2x2 802.11b/g/n MU-MIMO và 5 GHz 2x2 802.11 a/n/ac (Wave 2) MU-MIMO.

View Datasheet

Cisco AIR-OEAP1810-E-K9 Access Point sử dụng công nghệ mới nhất 802.11ac Wave 2, hỗ trợ công nghệ multiple-input multiple-output (MIMO) cung cấp tốc độ lên tới 867Mbps cho công suất và độ tin cậy cao hơn.

Cisco wifi AIR-OEAP1810-E-K9 Cisco Aironet wireless 1810 OfficeExtend Access Point

Cisco wireless AIR-OEAP1810-E-K9 cung cấp kết nối có dây và không dây cho các doanh nghiệp với tốc độ cao và độ bảo mật cao. AP cho phép nhân viên có thể truy cập dữ liệu, thoại, video và điện toán đám mây từ xa, phù hợp với các văn phòng công ty có số lượng laptop điện thoại di động hay các thiết bị không dây lớn và cần tốc độ truy cập cao.

Thông số kỹ thuật Cisco Aironet AIR-OEAP1810-E-K9 Access Point:

Integrated antennas

●  2.4 GHz, gain 2 dBi
●  5 GHz, gain 5 dBi

Interfaces

●  One 10/100/1000BASE-T PoE uplink port
●  Management console port (RJ-45)
●  Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
◦   PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af
●  DC power connector

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
◦   For privacy, status LED is automatically turned off when the access point joins a controller
●  Per-port status for local Ethernet ports

Dimensions (W x L x H) ●  Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm)
Weight ●  Access point without mounting bracket or any other accessories: 1.2 lb (560 g)
Environmental

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,572m)
●  Operating temperature: 32° to 104°F (0° to 40°C)
●  Operating humidity: 10% to 90% percent (noncondensing)
●  Operating maximum altitude: 40°C, 9843 ft (3,000m)

System

●  512 MB DRAM
●  256 MB flash
●  1.4 GHz system dual-core CPU

Input power requirements

●  44 to 57V DC
●  Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz

Powering options

●  802.3af/at Ethernet switch
●  Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
●  Optional Cisco local power supply (AIR-PWR-D=)

Power draw

●  Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out
Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port.

Physical security ●  Kensington security slot
Accessories

●  Included with the access point:
◦   AIR-OEAP1810-CRD, cradle kit to place access point on a desk
◦   AIR-PWR-D, Cisco local power supply
●  Available as spares or sold separately:
◦   Cradle kit: AIR-OEAP1810-CRD= (spare), includes back cover and RJ-45 jumper cable
◦   Cisco local power supply: AIR-PWR-D= (spare)
◦   Spacer kit: AIR-AP1810W-KIT= (sold separately), spacer kit to mount the access point directly on a wall where standard junction boxes are not available. Includes spacer and RJ-45 jumper cable
◦   AIR-AP-BRACKET-W2= (sold separately), mounting bracket to install to single gang junction box or multiple international standards
◦   AIR-SEC-50= (sold separately): 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports



●  Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043,  IEC 60950-1, EN 60950-1
●  Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe)
●  IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac Draft 5
●  Security: 802.11i, WPA2, WPA, 802.1X, AES
●  Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)
●  Multimedia: Wi-Fi Multimedia (WMM)
●  Other: FCC Bulletin OET-65C, RSS-102

Authentication and security

●  Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
●  802.1X, RADIUS authentication, authorization and accounting (AAA)
●  802.11i

Software ●  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2 MR1 or later
Maximum clients ●  Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac

●  2x2 single-user/multiuser MIMO with two spatial streams
●  Maximal ratio combining (MRC)
●  20-, 40- and 80-MHz channels
●  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
●  802.11 Dynamic Frequency Selection (DFS)
●  Cyclic shift diversity (CSD) support

Ethernet ports

●  Authentication with 802.1X or MAC filtered
●  Dynamic VLAN or per port
●  Traffic locally switched or tunneled back to wireless LAN controller
