Cisco wifi AIR-SAP2602E-E-K9 Aironet wireless 2600 Access Point
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Mô tả Cisco Aironet AIR-SAP2602E-E-K9:

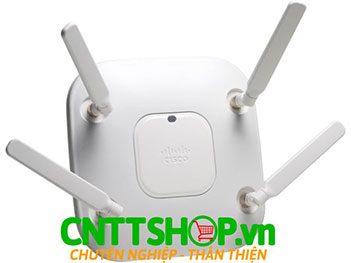

Bộ phát wifi Cisco Aironet AIR-SAP2602E-E-K9 access point là bô phát wifi chuẩn 802.11 a/g/n với antena được thiết kế ở bên ngoài thuộc dòng Cisco Aironet wireless 2600 Access Point. Bạn có thể gắn cisco wireless trên bàn hoặc trên tường sử dụng bộ kit đi kèm. Cisco Aironet AIR-SAP2602E-E-K9 hỗ trợ cả 2 dải tần là 2.4 GHz và 5 GHz sử dụng công nghệ MIMO.
Cisco AIR-SAP2602E-E-K9 Access Point sử dụng công nghệ mới 802.11n, cung cấp tốc độ lên tới 450Mbps ở dải tần 5GHz cho công suất và độ tin cậy cao hơn.

Cisco wireless AIR-SAP2602E-E-K9 hỗ trợ công nghệ multiple-input multiple-output (MIMO) đa luồng cho phép truyền tải dữ liệu với nhiều sóng 802.11ac giúp cải thiện trải nghiệm của khách hàng. Công nghệ beamforming được tích hợp giúp cải thiện hiệu năng kết nối đến các thiết bị di động, bao gồm các thiết bị 1 2 và 3 luồng trên 802.11n, đồng thời cải thiện tuổi thọ pin trên các thiết bị di động như điện thoại thông minh và máy tính bảng.
Cisco Aironet 2600 Series Datasheet
Thông số kỹ thuật Cisco Aironet AIR-SAP2602E-E-K9 Access Point:
Integrated antennas |
- 2.4 GHz, Gain 4 dBi, External omnidirectional, horizontal beamwidth 360°
- 5 GHz, Gain 4 dBi, External omnidirectional, horizontal beamwidth 360°
|
Interfaces |
- 10/100/1000BASE-T autosensing (RJ-45)
- Management console port (RJ-45)
|
Indicators |
- Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
Dimensions (W x L x H) |
- Access point (without mounting bracket): 8.69x8.69x2.11in. (22.1x22.1x5.4) |
Weight |
- 2.3 lbs (1.04 kg) (2.7 lbs for external) |
Environmental |
- Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
- Nonoperating (storage) Altitude Test: 25˚C, 15,000 ft.
- Operating temperature: -4 to 131°F (-20 to 55°C)
- Operating humidity: 10 to 90 % (noncondensing)
- Operating Altitude Test: 40˚C, 9843 ft.
|
System |
- 256 MB DRAM
- 32 MB flash
|
Powering options |
- 802.3af Ethernet Switch
- Cisco AP2600 Power Injectors (AIR-PWRINJ4=)
- Cisco AP2600 Local Power Supply (AIR-PWR-B=)
|
Power draw |
- AP2600: 12.95W
Note: When deployed using Power over Ethernet (PoE), the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W.
|
Physical security |
- Torx security screw, included with the access point
|
Accessories |
- Mounting bracket: AIR-AP-BRACKET-8= (available as spare)
- Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
|
Compliance |
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1
- Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385
- IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac
- Security: 802.11i, WPA2, WPA, 802.1X, AES
- Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)
- Multimedia: Wi-Fi Multimedia (WMM)
- Other: FCC Bulletin OET-65C, RSS-102
|
Software |
Cisco Unified Wireless Network Software Release 7.2.110 or later.
|
Supported wireless LAN controllers |
- Cisco 2500 Series, Cisco Wireless LAN Controller Module (WLCM) on Cisco Services Ready Engine (SRE) for Integrated Services Router Generation 2 (ISR G2), Cisco Wireless Services Module 2 (WiSM2), Cisco 5500 Series, Cisco Flex 7500 Series
|
802.11n version 2.0 (and related) capabilities |
- 3x4 multiple-input multiple-output (MIMO) with three spatial streams
- Maximal ratio combining (MRC)
- 802.11n and 802.11a/g beamforming
- 20- and 40-MHz channels
- PHY data rates up to 450 Mbps (40-MHz with 5 GHz)
- Packet aggregation: Aggregated MAC Protocol Data Unit (A-MPDU) (Tx/Rx), Aggregated MAC Protocol Service Unit (A-MSDU) (Tx/Rx)
- 802.11 dynamic frequency selection (DFS)
- Cyclic shift diversity (CSD) support
|
