| Processor and memory |
| Security processor |
1GHz single-core |
| Memory (RAM) |
512MB |
| Memory (Flash) |
128MB |
| Security features |
| Application proxies |
FTP, TFTP, SIP |
| Threat protection |
Intrusion Detection/Prevention (IDS/IPS) (Suricata basic rules) |
| Tunneling & encryption |
| IPsec site-to-site VPN tunnels |
30 (Recommended) |
| Encrypted VPN |
IPsec, SHA-1, SHA-256, IKEv2 |
| Encryption |
3DES, AES-128, AES-192, AES-256 |
| Key exchange |
Diffie-Hellman groups 2, 5, 14, 15, 16, 18 |
| Point to point |
Static PPP, L2TPv2 virtual tunnels |
| Management & authentication |
| Logging & notifications |
Syslog & Syslog v6, SNMPv2 & v3 |
| User interfaces |
Scriptable industry-standard CLI, Web-based GUI |
| Secure management |
SSHv1/v2, strong passwords |
| Management tools |
Allied Telesis Autonomous Management Framework (AMF)
Vista Manager EX |
| User authentication |
Internal user database |
| Networking |
| Routing (IPv4) |
Static |
| Routing (IPv6) |
Static |
| IP address management |
Static v4/v6, DHCP v4/v6 (server, relay, client), PPPoE |
| NAT |
Static, IPsec traversal, Dynamic NAPT |
| Hardware characteristics |
| Input power |
90 to 264V AC, 47 to 63Hz |
| Max power consumption |
13 Watts |
| LAN ports |
4 x 10/100/1000T RJ-45 |
| WAN port |
1 x 10/100/1000T RJ-45 |
| Other ports |
1 x USB, 1 x RJ-45 console |
| Product dimensions (H x W x D) |
44 mm (1.73 in) x 210 mm (8.26 in) x 210 mm (8.26 in) |
| Packaged dimensions (H x W x D) |
109 mm (4.29 in) x 265 mm (10.43 in) x 256 mm (10.08 in) |
| Product weight |
1.3 kg (2.87 lb) unpackaged, 1.9 kg (4.19 lb) packaged |
| Fanless |
Silent operation |
| Environmental specifications |
| Operating temperature range |
0°C - 40°C (32°F – 104°F) |
| Storage temperature range |
-25°C to 70°C (-13°F - 158°F) |
| Operating relative humidity range |
5% to 90% non-condensing |
| Storage relative humidity range |
5% to 95% non-condensing |
| Operating altitude |
3,000 meters maximum (9,843 ft) |
Switch
.png){kind=icon}
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: AT-AR1050V ?
Báo giá bộ định tuyến Allied Telesis AT-AR1050V CNTTShop phân phối mình đã gửi qua mail, bạn check ibox nhé

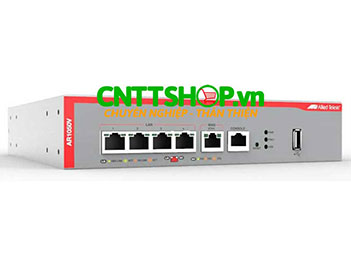

Thiết bị định tuyến AT-AR1050V Allied Telesis Secure VPN Router with 1 x GE WAN, 4 x 10/100/1000 LAN được bảo hành 12 tháng bạn nhé
