| Product Description |

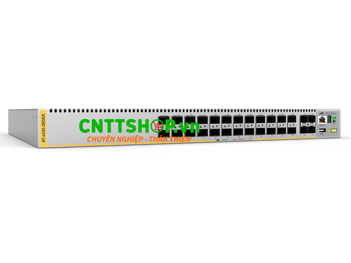

Allied Telesis AT x530-28GSX - switch - 24 ports - Managed - rack-mountable |
| Device Type |
Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance |
Stacking bandwidth: 40 Gbps
Switching capacity: 160 Gbps
Forwarding performance: 119 Mpps
Latency (100 Mbps): 12.20 µs
Latency (1 Gbps): 4.02 µs
Latency (10 Gbps): 3.11 µs |
| Capacity |
Virtual interfaces (VLANs): 4094
ARP table (IPv4): 4000
IPv4 routes: 13000
OSPF IPv4 routes: 64
BGP routes: 64
Link aggregation groups: 128
Packet buffer size: 1.5 MB |
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
10240 bytes |
| Routing Protocol |
OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, static IPv4 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, RSTP |
| Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, SMTP, NTP, DHCP, MIB |
| Features |
Flow control, BOOTP support, VLAN support, packet filtering, port mirroring, store and forward, sFlow, VRRP support, MSTP support, DHCP snooping, QoS, DHCP server, MLD snooping, PVST+, Cable Diagnostics Function, BFD, DHCP relay, Port Security, RSPAN, port based access control, DNS relay, DHCP client, GVRP, RRSTP, packet storm protection, CoS, MSDP, 802.1x authentication, ERPS, OpenFlow support, VCStack, LD-VCStack, AMF, VXLAN, Link Aggregation, Active Fiber Monitoring, Loop Guard, Voice VLAN, CFM, RA guard, storm protection, Guest VLAN, proxy ARP, EEE, BPDU Filter, VLAN Tagging, port trunking, LDF support, BPDU Guard, ARP spoofing, Q-in-Q tunnelling, Multicast routing, Web authentication, UDLD, LLDP-MED, RADIUS Server, AWC, AWC-CB, AWC-SC, LLDP, UFO, EPSR Enhanced Recovery, EPSRSLP, port bandwidth limit, remote mirroring, Auth-Fail VLAN, MAC address-based authentication, RADIUS proxy, ping polling, UDP broadcast helper |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bz |
| Power |
AC 100-240 V (50/60 Hz) 1 A |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
44.1 cm x 32.3 cm x 4.4 cm |
| Weight |
5.2 kg |
| Localisation |
Europe |
