| TECHNICAL SPECIFICATIONS |
| AP type |
Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO |
| Radio 5Ghz |
- Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
- Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices |
| Radio 2.4Ghz |
- Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices |
| Supported frequency bands (country-specific restrictions apply) |
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.825 to 5.875 GHz |
| Available channels |
Dependent on configured regulatory domain |
| Supported radio technologies |
- 802.11b: Directsequence spreadspectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequencydivision multiplexing (OFDM) |
| Supported modulation types |
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11n high-throughput (HT) support |
HT20/40 |
| 802.11ac very high throughput (VHT) support: |
VHT20/40/80/160 |
| Supported data rates (Mbps): |
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) |
| 802.11n/ac packet aggregation: |
A-MPDU, A-MSDU |
| Transmit power |
Configurable in increments of 0.5 dBm |
| Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): |
- 2.4 GHz band: +25 dBm per chain, +28dBm aggregate (2x2)
- 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4) |
| Maximum EIRP |
- 2.4 GHz band: 28 + Antenna Gain
- 5 GHz band: 28 + Antenna Gain + TxBF Gain |
| FLEXIBLE OPERATION AND MANAGEMENT |
| Controller-less (Instant) mode |
In controllerless mode, one AP serves as a virtual controller for the entire network. |
| Mobility Controller mode |
For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally managed traffic forwarding and segmentation, data encryption, and policy enforcement |
| Management options |
- Aruba Central (cloud-managed)
- Aruba AirWave |
| WI-FI ANTENNAS |
| Antenna |
- Four Nf connectors for external antenna operation
- Two Nf connectors for external antenna operation at 2.4 GHz |
| OTHER INTERFACES |
| Interfaces |
One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
One 1000BASE-X SFP Port |
| Bluetooth Low Energy (BLE) radio |
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity |
| Reset button |
Factory reset (during device power up) |
| Visual indicator (LED) |
For system and radio status |
| Serial console interface |
Micro USB |
| Kensington security slot |
Yes |
| POWER SOURCES AND POWER CONSUMPTION |
| Worst-case power consumption from the AP |
23 watts |
| Power over Ethernet (PoE+) |
802.3at-compliant |
| AC Power |
100-240 Volt 50/60Hz AC |
| MECHANICAL SPECIFICATIONS |
| Dimensions/weight |
- 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover
- 9.0” (W) x 9.4” (D) x 7.5” (H)
- 2.7 kg/6 lbs |
| ENVIRONMENTAL SPECIFICATIONS |
| Operating conditions |
- Temperature: -40° C to +65° C (-40° F to +149° F)
- Humidity: 5% to 95% noncondensing |
| Storage and transportation conditions |
- Temperature: -40° C to +70° C (-40° F to +158° F) |
| Operating Altitude |
3000m |
| Water and Dust |
IP66/67 |
| Salt Tolerance |
Tested to ASTM B117-07A Salt Spray 200hrs |
| Wind Survival |
Up to 165 Mph |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: JZ162A ?

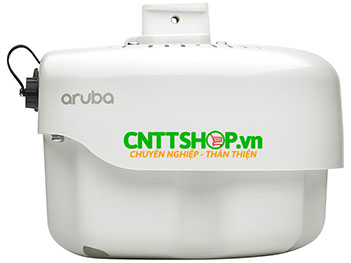

Báo giá bộ phát wifi Aruba AP-374 802.11n/ac Dual Radio 6xNf Connectors Outdoor AP đã được gửi vào mail, bạn vui lòng check mail nhé.
