AP type
|
Indoor, flexible radio
|
|
Spatial Stream
|
• 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices
• 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
|
|
Software-configurable
|
supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
|
|
SSID
|
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP
|
|
Frequency bands
|
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
|
|
Supported radio technologies
|
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
|
|
Supported modulation types:
|
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
|
Supported data rates (Mbps)
|
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
|
|
Transmit power
|
Configurable in increments of 0.5 dBm
|
|
Dimensions (unit, excluding mount accessories)
|
- 86mm (W) x 26.5mm (D) x 140mm (H)
- 225g
|
|
Environmental
|
• Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
|
|
Regulatory
|
• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2
|
|
Minimum Operating System Software
|
• ArubaOS™: 6.5.2.0/8.2.0.0
• InstantOS™: 6.5.3.0/8.2.0.0
|
|
Power
|
• The AP is powered through Power over Ethernet (PoE)
• An optional PoE power injector is sold separately
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
• Maximum (worst-case) power consumption: 7.4W
• Includes up to 100mW for an attached USB BLE module
• Maximum (worst-case) power consumption in idle mode: 3.9W
|
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: JY693A ?

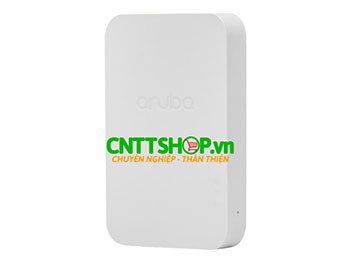

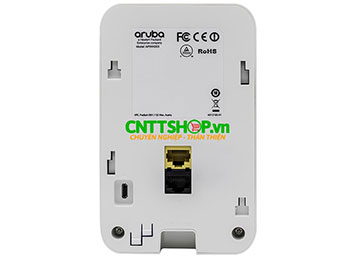

Giá bộ phát wifi Aruba AP-203H (RW) Flex-radio 802.11ac 2x2 Unified Hospitality AP with Internal Antennas đã được gửi vào mail, bạn vui lòng check mail nhé.
