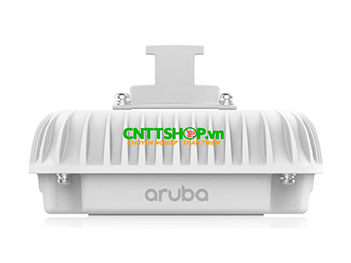

Aruba AP-387 802.11ac/ad Dual 5/60GHz Integrated Antenna Outdoor Radio

AP type

Outdoor hardened, dual radio, 60GHz 11ad and 5GHz 802.11ac 2x2 MIMO

Spatial Stream

60GHz 802.11ad 1x1 (2502.5 Mbps max rate) radio
-1 Spatial Stream for up to 2.5 Gbps
-Internal scanning antenna
»»+/- 45° Azimuth Scan
»»+/- 17° Vertical Scan
5GHz 802.11ac 2x2 MU-MIMO (867 Mbps max rate)
-Two spatial stream MIMO for up to 867 Mbps wireless data
-Internal directional antenna 9 dBi

Software-configurable

dual radio supports 5GHz (Radio 0) and 60GHz (Radio 1)

Frequency bands

-2.400 to 2.4835GHz (BLE)
-5.150 to 5.250GHz
-5.250 to 5.350GHz
-5.470 to 5.725GHz
-5.725 to 5.850GHz
-5.825 to 5.875GHz
-57 to 64GHz

Supported radio technologies

-802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
-802.11ad: Single carrier (SC)

Supported modulation types:

-802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
-802.11ad: BPSK, QPSK

Supported 11a/ac data rates (Mbps):

-802.11a 6, 9, 12, 18, 24, 36, 48, 54
-802.11n (5GHz): 6.5 to 600 (MCS0 to MCS15)
-802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

Transmit power

Configurable in increments of 0.5 dBm for 5GHz

Maximum EIRP

-60GHz band: 40 dBm EIRP max
-5GHz band: 387: 34 dBm EIRP

Maximum ratio combining (MRC)

5 GHz

Dimensions

-18 cm (W) x 18 cm (D) x 10.1 cm (H)
-1.198 kg

Environmental

Operating:
-Temperature: -40° C to +60° C (-40° F to +140° F)
-Humidity: 5% to 95% non-condensing
Storage and transportation:
-Temperature: -40° C to +70° C (-40° F to +158° F)
Operating Altitude: 3,000 m
Water and Dust
-IP66/67
Salt Tolerance
-Tested to ASTM B117-07A Salt Spray 200hrs
Wind Survival: Up to 165 Mph
Shock and Vibration ETSI 300-19-2-4

Regulatory

-FCC/ISED
-CE Marked
-RED Directive 2014/53/EU
-EMC Directive 2014/30/EU
-Low Voltage Directive 2014/35/EU
-UL/IEC/EN 60950
-EN 60601-1-1, EN60601-1-2

Minimum Operating System Software

8.4. AOS and 8.4 for Instant

Power

-Worst-case power consumption -13.5 W
-Idle power consumption 4.5W
-Power sources sold separately
-Power over Ethernet (PoE+): 802.3at-compliant
-Power over Ethernet (PoE): 802.3af with some operational restriction.
-Max conducted power per chain for 5GHz drops to 19 dBm
