| Datasheet Aruba R0X25A |
| Specifications |
| Description |

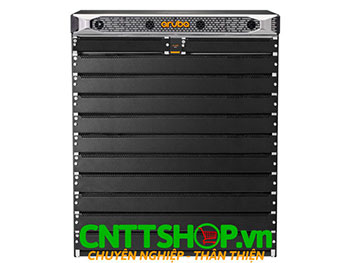

- 6410 Chassis Switch
- 2x Management Module Slot
- 4x Fan Trays Slot
- 10 open module slots
- Power supply units ordered separately.
- Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A
- Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
|
| Additional Ports And Slots |
- 1x RJ-45 console port
- 1x USB-C console port
- 1x OOBM
- 1x USB Type A host port
- 1x Bluetooth dongle to be used with CX Mobile App
|
| Power Supplies |
Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters.
Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
|

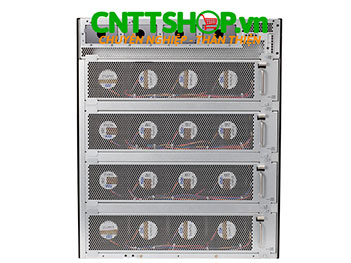

| Fan Tray |
Two field replaceable system fan trays |
| Dimensions |
17.5 (w) x 17.7 (d) x 20.8 (h) in
(44.26 x 44.85 x 52.88 cm)
|
| CPU |
Management Module: Quad Core ARM Cortex™ A72 @ 1.8GHz
Line Card: Dual Core ARM Cortex™ A72 @ 1.8GHz
|
| Memory And Flash |
Management Module: 16GB DDR4 ECC memory; 32GB eMMC Flash memory
Line Card: 4GB DDR4 memory
|
| Packet Buffer |
R0X38A-R0X43A Line Cards: 8MB packet buffer memory per line card
R0X44A-R0X45A Line Cards: 32MB packet buffer memory per line card
|
| Environment |
Operating temperature
- 32° to 113°F (0° to 45°C), up to 5,000 feet
- 32° to 104°F (0° to 40°C), 5,001 to 10,000 feet
- 1°C de-rating per 1,000 feet above 5,000 feet
Operating humidity: 15% to 95% relative humidity at 113°F (45°C), non-condensing
Non-operating temperature: -40° to 158°F (-40° to 70°C)
Non-operating humidity: 15% to 95% relative humidity at 149°F(65°C), non-condensing
Max operating altitude: Up to 10,000ft (3.048 Km)
Max non-operating altitude: Up to 10,000ft (3.048 Km)
|
| Primary airflow |
Front-to-back |
| Safety |
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; EN62368-1:2014; IEC 60950-1:2005 Ed.2; AM 1:2009+A2:2013; IEC 62368-1 Ed. 2; IEC 60825:2007 (Applies to products with lasers); UL 60950-1, CSA 22.2 No 60950-1; UL 62368-1 Ed. 2 |
| Emissions |
VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254; EN55032:2012 Class A; CISPR32:2012 Class A |
| Immunity |
Generic: Directive 2014/35/EU
EN: EN 55024:2010 +A1:2001 +A2:2003; ETSI EN 300 386 V1.3.3
ESD: EN 61000-4-2
Radiated: EN 61000-4-3
EFT/Burst: EN 61000-4-4
Surge: EN 61000-4-5
Conducted: EN 61000-4-6
Power Frequency Magnetic Field: IEC 61000-4-8
Voltage Dips And Interruptions: EN 61000-4-11
Harmonics: EN 61000-3-2, IEC 61000-3-2
Flicker: EN 61000-3-3, IEC 61000-3-3
|
