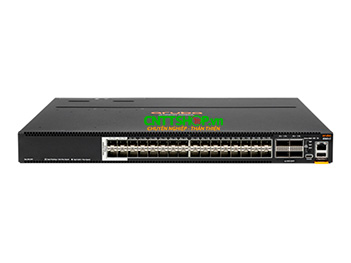

Switch Aruba R9G08A 8360-32Y4C

Datasheet Aruba R9G08A

Interface

- 12 ports of 50G

- 28 ports of 1GbE/10GbE/25GbE (SFP/ SFP+/SFP28)

 - 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28)

- (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)

Additional ports and slots

Power Supplies

2x field-replaceable and hot-swappable power supplies1

Fans

3x field-replaceable and hot-swappable fans2

Management

RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Physical characteristics

Physical Dimensions (HxWxD)

1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4

Full configuration weight

18.05 lb  8.19 kg

Memory and Processor

CPU

1.8 GHz 4-core 64-bit

Memory, Drive and Flash

16GB RAM, 32GB Flash/Storage

Packet Buffer

32MB

Performance

Switching Capacity

2.4Tbps

MAC Address Table Size

212,992

IPv4 Host Table

145,780

IPv6 Host Table

145,780

IPv4 Unicast Routes

606,977

IPv6 Unicast Routes

630,784

Maximum Number of Access Control List (ACL) Entries Ingress

IPv4 65,536, IPv6 16,384, MAC 65,536

Performance

Maximum Number of Access Control List (ACL) Entries Egress

IPv4 8,192, IPv6 2,048, MAC 8,192

Maximum VLANs

4,094

IGMP Groups

7,000

MLD Groups

7,000

IPv4 Multicast Routes

7,000

IPv6 Multicast Routes

7,000

Environment

Operating Temperature3

32°F to 113°F (0°C to 45°C) up to 5000 ft

Operating Relative Humidity

15% to 95% relative humidity at 113°F (45°C), non-condensing

Non-Operating Temperature

-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.)

Non-Operating/ Storage Relative Humidity

15% to 95% at 149°F (65°C) non-condensing

Maximum Operating Altitude

Up to 10,000ft (3.048Km)

Maximum NonOperating Altitude

Up to 15,000ft (4.6Km)

Primary Airflow

Power-to-Port (PwrToPrt) or Port-to-Power (PrtToPwr)

BTU/hr

1,450

Acoustics4

LWAd = 6.3 Bel  LpAm (Bystander) = 45.4 dB

Electrical Characteristics

Frequency

47-63 Hz

AC Voltage Current

7.1A for 100-127VAC  3.4A for 200-240VAC

Power Consumption

Max: 425W  Idle: 120W

Regulatory

Compliance

Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety)

RoHS

EN 50581:2012

Safety

EU

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013  EN62368-1, Ed.2:2014

North America

UL60950-1, CSA 22.2 No 60950-1

Worldwide

IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013  IEC 62368-1:2014

EMC

EN 55024:2010+A2016/CISPR24:2015  EN55032:2015/CISPR 32, Class A  EN55035:2017/CISPR 35  EN61000-3-2:2014, Class A  EN61000-3-3:2013  FCC CFR 47 Part 15:2010, Class A  ICES-003, Class A  VCCI Class A  CNS 13438  CNS 13438 Class A

Laser

Transceivers

EN60825-1:2014 / IEC 60825-1: 2014 Class 1  Class 1 Laser Products / Laser Klasse 1

Mounting

Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available5; air duct available for 4-post deployments and sold separately
