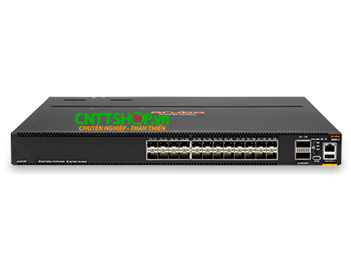

| Datasheet Aruba R9G16A |
| I/O ports and slots |
24x ports of 1GbE/10GbE (SFP/SFP+)
2x ports of 40GbE/100GbE (QSFP+/
QSFP28)
(optional 1GBASE-T SFP and
10GBASE-T SFP+ transceivers and
4x10G/25G breakout cables
supported)
|
| Additional ports and slots |
| Power Supplies |
2 field-replaceable and hot-swappable power supplies |
| Fans |
3 field-replaceable and hot-swappable fans |
| Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Physical characteristics |
Physical
Dimensions
(HxWxD) |
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4 |
Full configuration
weight |
17.8 lb
8.07 kg |
| Memory and Processor |
| CPU |
1.8 GHz 4-core 64-bit |
Memory, Drive and
Flash |
16GB RAM, 32GB Flash/Storage |
| Packet Buffer |
32MB |
| Performance |
| Switching Capacity |
880Gbps |
| IPv4 Host Table |
145,780 |
| IPv6 Host Table |
145,780 |
IPv4 Unicast
Routes |
606,977 |
IPv6 Unicast
Routes |
IPv4 65,536, IPv6 16,384, MAC 65,536 |
| Maximum VLANs |
4,094 |
| IGMP Groups |
7,000 |
| MLD Groups |
7,000 |
IPv4 Multicast
Routes |
7,000 |
IPv6 Multicast
Routes |
7,000 |
| Environment |
Operating
Temperature |
32°F to 113°F
(0°C to 45°C) up
to 5000 ft |
Operating Relative
Humidity |
15% to 95%
relative humidity
at 113°F (45°C),
non-condensing |
Non-Operating/
Storage Relative
Humidity |
15% to 95% at 149°F (65°C) non-condensing |
Maximum
Operating Altitude |
Up to 10,000ft (3.048Km) |
Maximum Non-
Operating Altitude |
Up to 15,000ft (4.6Km) |
| Primary Airflow |
Port-to-Power
(PrtToPwr) |
| Acoustics9 |
LWAd = 6.0 Bel
LpAm
(Bystander) =
42.6 dB |
| Electrical Characteristics |
| Frequency |
47-63 Hz |
AC Voltage
Current |
7.1A for 100-127VAC
3.4A for 200-240VAC |
Power
Consumption |
Max: 375W
Idle: 120W |
| Regulatory |
| Compliance |
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety) |
| RoHS |
EN 50581:2012 |
| Safety |
| EU |
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN62368-1, Ed.2:2014 |
| North America |
UL/CUL 69050-1: 2nd Edition
UL/CUL 63268-1:2014
UL60950-1, CSA 22.2 No 60950-1 |
| Worldwide |
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013
IEC 62368-1:2014 |
| EMC |
EN 55024:2010+A2016/CISPR24:2015
EN55032:2015/CISPR 32, Class A
EN55035:2017/CISPR 35
EN61000-3-2:2014, Class A
EN61000-3-3:2013
FCC CFR 47 Part 15:2010, Class A
ICES-003, Class A
VCCI Class A
CNS 13438
CNS 13438 Class A |
| Laser |
| Transceivers |
EN60825-1:2014 / IEC 60825-1: 2014 Class 1
Class 1 Laser Products / Laser Klasse 1 |
| Mounting |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post
mounting options available10; air duct available for 4-post deployments and sold separately |
