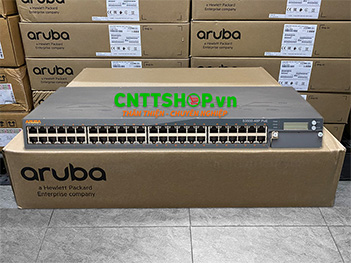

Aruba S3500-48P JW662A Mobility Access Switch
| Cisco Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
S3500-48P là thiết bị chuyển mạch di động cung cấp tới 48 cổng 10/100/1000BASE-T RJ45 cấp nguồn PoE+, có thể mở rộng kết nối Uplink quang bằng Module Uplink, 1 Slot Module nguồn 600W Autosensing 100-240 VAC. Nguồn điện dự phòng và các thành phần mô-đun, có thể thay thế nóng làm cho S3500-48P có tính khả dụng cao, trở nên lý tưởng cho các tủ đi dây mật độ cao.
Thông số kỹ thuật S3500-48P JW662A
| Datasheet S3500-48P JW662A | |
| Specifications | |
| Physical Interfaces | |
| Port | - 48x10/100/1000BASE-T PoE+ RJ-45 and uplink module slot - RJ-45/mUSB console port (RS-232) - Out-of-band 10/100/1000BASE-T management port - USB interface for software/configuration files |
| PoE feature support (P and PF models) |
- IEEE 802.3af: PoE (15.4 watts) - IEEE 802.3at: PoE+ (30 watts) - Pre-standard/Legacy PoE - Aruba efficient PoE (priority, guard-band and time range) |
| Common interface feature support | - Diagnostic LEDs (link/admin/duplex/PoE/speed/fault) - Diagnostic LEDs (link/admin/duplex/PoE/speed/fault) - LCD management display |
| Performance | |
| switching capacity | 176 Gbps |
| forwarding rate | 131 Mpps |
| Power Options | Autosensing 100-240 VAC, 600 watts |
| Layer 2 Features And Scaling | • MAC addresses per system: 12,000 • Jumbo frames: 9,216 bytes • Number of VLANS: 4,094 • Port- and MAC-based VLAN • IEEE 802.1Ab: Link-layer discovery protocol (LLDP) - Device discovery and advertisement - Voice VLAN support using LLDP-MED • Cisco discovery protocol (CDP) - Device discovery - Voice VLAN support • IEEE 802.1Q: VLAN tagging • GARP VLAN registration Protocol (GVrP) • IEEE 802.1D: Spanning tree protocol (STP) • IEEE 802.1w: rapid reconfiguration of spanning tree protocol (RSTP) • IEEE 802.1s: Multiple spanning trees protocol (MSTP) - Maximum number of supported instances: 64 • Rapid per-VLAN spanning tree plus (PVST+) • Spanning tree protocol features: - Portfast - - - Root guard Loop guard BPDU guard • Aruba loop protect • Link aggregation groups - Static - - - IEEE 802.3ad: Link-aggregation control protocol (LACP) Number of link aggregation groups: 64 Number of ports per aggregation group: 8 • Aruba hot Standby Link (hSL) • IEEE 802.3ah: Ethernet operations, administration and maintenance (OAM) • Layer 2 Generic routing Encapsulation (GrE) • Aruba AirGroup |
| Layer 3 Features And Scaling | • Unicast routes: 8000 • Routed VLAN Interface (rVI) • Loopback interface • Multinetting • Static routing • Open shortest path first (oSPF) v2 • Equal cost multi-path • Route filtering • DHCP server/client • DHCP relay (including Option 82) • Network time protocol (NTP) • Network address translation • IP directed broadcast |
| Security | • 802.1X • MAC authentication • Captive portal • RADIUS (device management, 802.1X, accounting) • RADIUS fail open • TACACS+ (device management, accounting) • LDAP (802.1X) • Digital certificates • Internal user database • Aruba ClearPass Policy Manager downloadable roles • Aruba Tunneled Node • Access control lists (ACLs) • Storm control • IPv6 router-advertisement (RA) guard • DhCP guard • MAC limiting • Site-to-site IPSEC VPN |
| Quality Of Service | • 802.1p • DSCP • IP precedence • QoS trust (802.1p/DSCP/auto) • QoS classification by ACL (L3/L4), user and interface • Policer classification by ACL (L3/L4), user and interface • Egress strict priority queuing • Eight hardware queues per port |
| Management And Monitoring | • Command line interface (serial, telnet, SShv2) • Graphical user interface (HTTP/HTTPs) • Aruba Central cloud-based network management • AirWave network management • DhCP auto-configuration • SNMP v1, v2c, v3 • IPv6 management • Port mirroring (single destination) • Remote monitoring (RMON) |
| Dimensions | H x W x D: 1.75” x 17.5” x 12.5” (4.4 cm x 44.5 cm x 30.5 cm) |
| Weight | 17.5 lbs (8 kg) |
| Environmental | • Operating temperature: 32°F to 122°F (0°C to 50°C) • Storage temperature: -40°F to 158°F (-40°C to 70°C) • Operating humidity: 5% to 95% non-condensing • Operating altitude: 10,000 feet (3,048 meters) • Acoustic noise: 42 dB with AC power supply |
| Safety Certifications | • UL-UL60950-1 (second edition) • C-UL to CAN/CSA 22.2 No.60950-1 (second edition) • TUV/GS to EN 60950-1, Amendment A1-A4, A11 • Cb-IEC60950-1, all country deviations |
| Electromagnetic Compatibility Certifications | FCC 47CFR Part 15, Class A • EN 55022 Class A • ICES-003 Class A • VCCI Class A • AS/NZS CISPR 22 Class A • CISPR 22 Class A • EN 55024 |
Bạn đang cần tư vấn về sản phẩm: JW662A ?
