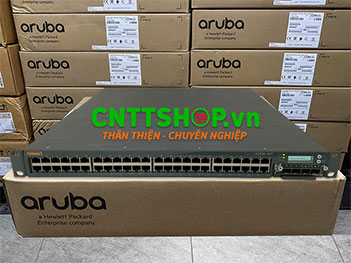

Switch mobility access Aruba S3500-48T JW664A
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Với thiết kế 48 Port RJ45 10/100/1000BASE-T, các module uplink quang, module nguồn và quạt có thể thay thế dễ dàng giúp thiết bị có tính linh hoạt và khả dụng cao trong việc mở rộng các kết nối tốc độ cao và khắc phục sự cố nhanh.

S3500-48T là thiết bị chuyển mạch và cũng có thể Được định cấu hình như một AP có dây, giúp quản trị viên mạng dễ dàng định cấu hình các chính sách VLAN, ACL và QoS tại mỗi thiết bị trong lớp truy cập. Các chính sách dành cho người dùng, thiết bị và ứng dụng được Bộ điều khiển di động xác định và thực thi trên các mạng có dây và không dây.
Thông số kỹ thuật Aruba S3500-48T (JW664A)
Datasheet S3500-48T JW662A |
Specifications |
Physical Interfaces |
Port |
- 48x10/100/1000BASE-T RJ-45 and uplink module slot
- RJ-45/mUSB console port (RS-232)
- Out-of-band 10/100/1000BASE-T management port
- USB interface for software/configuration files |
Common interface feature support |
- Diagnostic LEDs (link/admin/duplex/PoE/speed/fault)
- Diagnostic LEDs (link/admin/duplex/PoE/speed/fault)
- LCD management display |
Performance |
switching capacity |
176 Gbps |
forwarding rate |
131 Mpps |
Power Options |
Autosensing 100-240 VAC, 350 watts |
Layer 2 Features And Scaling |
• MAC addresses per system: 12,000
• Jumbo frames: 9,216 bytes
• Number of VLANS: 4,094
• Port- and MAC-based VLAN
• IEEE 802.1Ab: Link-layer discovery protocol (LLDP) - Device discovery and advertisement - Voice VLAN support using LLDP-MED
• Cisco discovery protocol (CDP) - Device discovery - Voice VLAN support
• IEEE 802.1Q: VLAN tagging • GARP VLAN registration Protocol (GVrP)
• IEEE 802.1D: Spanning tree protocol (STP) • IEEE 802.1w: rapid reconfiguration of spanning tree protocol (RSTP)
• IEEE 802.1s: Multiple spanning trees protocol (MSTP) - Maximum number of supported instances: 64
• Rapid per-VLAN spanning tree plus (PVST+)
• Spanning tree protocol features: - Portfast - - - Root guard Loop guard BPDU guard
• Aruba loop protect
• Link aggregation groups - Static - - - IEEE 802.3ad: Link-aggregation control protocol (LACP) Number of link aggregation groups: 64 Number of ports per aggregation group: 8
• Aruba hot Standby Link (hSL)
• IEEE 802.3ah: Ethernet operations, administration and maintenance (OAM)
• Layer 2 Generic routing Encapsulation (GrE)
• Aruba AirGroup |
Layer 3 Features And Scaling |
• Unicast routes: 8000
• Routed VLAN Interface (rVI)
• Loopback interface
• Multinetting
• Static routing
• Open shortest path first (oSPF) v2
• Equal cost multi-path
• Route filtering
• DHCP server/client
• DHCP relay (including Option 82)
• Network time protocol (NTP)
• Network address translation
• IP directed broadcast |
Security |
• 802.1X
• MAC authentication
• Captive portal
• RADIUS (device management, 802.1X, accounting)
• RADIUS fail open
• TACACS+ (device management, accounting) • LDAP (802.1X)
• Digital certificates
• Internal user database
• Aruba ClearPass Policy Manager downloadable roles
• Aruba Tunneled Node
• Access control lists (ACLs)
• Storm control
• IPv6 router-advertisement (RA) guard
• DhCP guard
• MAC limiting
• Site-to-site IPSEC VPN |
Quality Of Service |
• 802.1p
• DSCP
• IP precedence
• QoS trust (802.1p/DSCP/auto)
• QoS classification by ACL (L3/L4), user and interface
• Policer classification by ACL (L3/L4), user and interface
• Egress strict priority queuing
• Eight hardware queues per port |
Management And Monitoring |
• Command line interface (serial, telnet, SShv2)
• Graphical user interface (HTTP/HTTPs)
• Aruba Central cloud-based network management • AirWave network management
• DhCP auto-configuration
• SNMP v1, v2c, v3
• IPv6 management • Port mirroring (single destination)
• Remote monitoring (RMON) |
Dimensions |
H x W x D: 1.75” x 17.5” x 12.5” (4.4 cm x 44.5 cm x 30.5 cm) |
Weight |
15.9 lbs (7.2 kg) |
Environmental |
• Operating temperature: 32°F to 122°F (0°C to 50°C)
• Storage temperature: -40°F to 158°F (-40°C to 70°C)
• Operating humidity: 5% to 95% non-condensing • Operating altitude: 10,000 feet (3,048 meters)
• Acoustic noise: 42 dB with AC power supply |
Safety Certifications |
• UL-UL60950-1 (second edition)
• C-UL to CAN/CSA 22.2 No.60950-1 (second edition)
• TUV/GS to EN 60950-1, Amendment A1-A4, A11 • Cb-IEC60950-1, all country deviations |
Electromagnetic Compatibility Certifications |
FCC 47CFR Part 15, Class A
• EN 55022 Class A
• ICES-003 Class A
• VCCI Class A
• AS/NZS CISPR 22 Class A
• CISPR 22 Class A
• EN 55024 |
