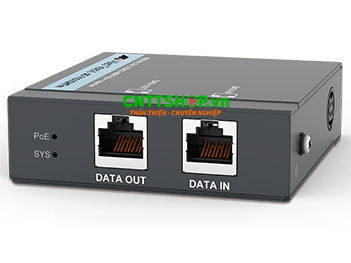

PoE injector 60W Allied Telesis AT-7101GHTm
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật Allied Telesis AT-7101GHTm
| Datasheet AT-7101GHTm | |
| Specifications | |
| Port | 1x Data in port 1x Data out port |
| PoE | Up to 60W (802.3bt) |
| Standards | IEEE 802.3 10T Ethernet IEEE 802.3u 100TX IEEE 802.3ab 1000T IEEE 802.3bz 2.5GBASE-T and 5GBASE-T IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3bt PoE++ |
| Extend PD reach | Up to 100 meters |
| Speed | Multi-Gigabit (10/100M/1/2.5/5Gbps) |
| LED Indicators | PoE x 1 Green light on: PoE power forward - Off: No PoE Power forward - Blinking: Boot up error SYS x 1 Green light on: Powering in - Off: Power down or No Power installed |
| Power Supply | Rated input voltage: 100VAC~240VAC Rated input frequency: 50~60 Hz Rated input current: 2A Output voltage: 54.5VDC PoE Output voltage Output current: 1.16A PoE Output current Output watt: 63W max. PoE Output watt Over current protection: Yes |
| Environmental Specifications | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 75°C (-40°F to 167°F) Operating humidity: 10 to 90% (non-condensing) Storage humidity: 5 to 90% (non-condensing) |
| Physical Specifications | Dimensions (W x D x H): 84 x 80 x 25 mm Weight: 500g |
Bạn đang cần tư vấn về sản phẩm: AT-7101GHTm ?
