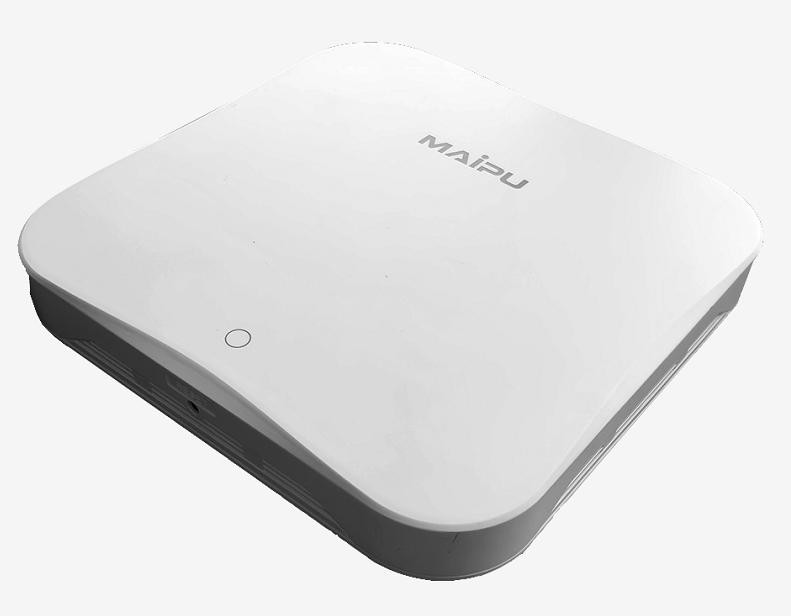

Product Model

IAP300-821-PE

Version

V2

Hardware Specification

Interface

2*10/100/1000Base-T Ethernet Ports

Other Interface

Console RJ45, 1 USB

PoE Power supply

Support 802.3af (LAN1)

RF standard

Support IEEE 802.11a/b/g/n/ac/ax MU-MIMO 2T2R MIMO (2*2:2)

RF transmission speed

1775Mbps (2.4GHz 2*2: 574Mbps, 5GHz 2*2: 1201Mbps)

RF working bandwidth

802.11ax: HT80

802.11ac: HT80, HT40, HT20

802.11n: HT40, HT20

RF transmission power (max.)

2.4G:20dbm+/-1.5db@1Mbps 5G:20dbm+/-1.5db@6Mbps

RF antenna

Inbuilt antenna, gain≥4dbi

Protection

IP40

Overall power consumption

＜13W

DC power supply

DC:12V±5%

Working temperature

0~45℃

Working humidity

10%~90%/RH, non-condensing

Altitude

≤5000m

Overall dimension (L * W * H)

180mm*180mm*31mm

Software specification

Recommend client devices

256

Multiple SSIDs

16*SSID

AP Working Mode

Fit Mode / Fat Mode

Network Features

Routing and Bridging mode, 802.1Q VLAN (4K), 802.1p Priority queue, DHCP Server, Layer 3 Interface (Static, PPPoE, DHCP), MAC based authentication Whitelist

(Note: FAT Working Mode)

Security

Security: OPEN, Portal, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise,

SSID

User isolation, Multiple SSID, SSID hide, Fair access time, Automatic channel selection, 5G prior access

AC Discovery

DHCP Option43, DHCP Option52, CAPWAP Broadcast

AP Remote Control

Force offline, limit the number of access users, restore the factory settings of the AP, restart the AP manually, restart the AP regularly, turn on / off the breathing lamp, Static configuration of AP power

AP Status Report

Traffic statistics, RF parameters, memory/CPU information, STA information

STA Management

5GHz prior, 2.4G/5GHz load balancing, based on user load, based on traffic load balancing, L2 roaming

Portal Authentication

Local Portal, External Portal, Portal whitelist, MAC Portal, Portal URL Redirection, Portal authentication free, Portal no-sense authentication

Anti-Flood Attack Detection

TCP Flood, UDP Flood, ICMP Flood, TCP Sync Flood, ARP Flood, Beacon Flood, etc.

Wireless QoS

AP Rate Limitation, BSS Total Bandwidth Limitation, BSS User Bandwidth Limitation, BSS Minimum Bandwidth Guarantee, BSS priority mapping

Wireless ACL

AP ACL, BYOD ACL, Time-Based ACL

Management

Access Controller Central Management, Web, Telnet, CLI, SNMP, ping/traceroute
