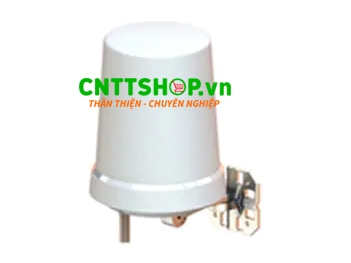

External Antenna C-ANT9102=
| C-ANT9102= Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Hình ảnh mô tả gắn ăng-ten C-ANT9102= trên bề mặt đứng
Thông số kỹ thuật C-ANT9102=
| Specifications | |||
| Antenna type | 8-element MIMO Dual-Band Polarization-Diverse Omnidirectional, Wall/Pole Mount | ||
| Operating frequency ranges | 2.4–2.484 GHz | 5.15–7.125 GHz | 2.4–2.484 GHz (IoT) |
| Nominal input impedance | 50 Ohms | 50 Ohms | 50 Ohms |
| Voltage Standing Wave Ratio (VSWR) | 2:1 | 2:1 | 2:1 |
| Peak gain | 4 dBi | 4 dBi | 4 dBi |
| Polarization | Vertical | Dual-Polarized (vertical and horizontal) |
Mixed |
| Azimuth plane (3-dB beamwidth) |
Omnidirectional | Omnidirectional | Omnidirectional |
| Elevation plane (3-dB beamwidth) |
60° | 30° | 60° |
| Length |
10.45 in (26.55 cm)
|
||
| Diameter | 8.03 in (20.4 cm) | ||
| Weight | 2.3 lbs (1043.26 g) | ||
| Cable | 2 ft (60.96 cm) | ||
| Connector | Octal DART | ||
| Environment | IP66 | ||
| Temperature range | -40°F to 158°F (-40° C to 70°C) | ||
Bạn đang cần tư vấn về sản phẩm: C-ANT9102= ?
