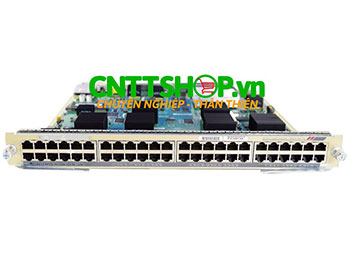

C6800-48P-TX-XL Cisco Catalyst 6800 48 Ports 1GE copper module with integrated DFC4-XL
Cisco C6800-48P-TX-XL Catalyst 6800 48 Ports 1GE copper module with integrated DFC4-XL
Cisco Part Number : C6800-48P-TX-XL
Cisco Spare Part Number : C6800-48P-TX-XL=
Bảo hành : 12 tháng
List Price : $25,000
Giá Bán : Liên hệ
Made In : Asia
Stock : Liên hệ
| View Datasheet C6800-48P-TX-XL |
Thông số kỹ thuật
|
Item |
Specification(s) |
|
Transceiver Type |
RJ-45 |
|
Ports/Interface/Connectors |
48-port, RJ-45, 100m, Category 5 cable |
|
Port Density/Chassis Model |
- 240 ports/C6807-XL
- 528 ports/6513E
- 384 ports/6509E
|
|
Maximum Frame Size |
Up to 9216 bytes/frame |
|
(Tx = Transmit, Rx = Receive) |
- Tx-1p3q8t; Rx‑2q8t
|
|
Scheduler |
Deficit Weighted Round Robin (DWRR) |
|
Size per Port |
- Rx-166KB
- Tx-1.17MB
|
|
Onboard Memory |
1GB Default
|
|
Standard protocols |
- IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, and IEEE 802.3ad
- 1000BASE-T, 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
|
|
Physical specifications |
- Occupies one slot in the Cisco Catalyst 6807-XL or one slot in the 6500 E-Series chassis
- Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)
|
|
Environmental conditions |
Temperature: - Operating temperature: 32 to 104°F (0 to 40°C)
- Storage temperature: -40 to 167°F (-40 to 75°C)
- Relative humidity 10 to 90% noncondensing
Operating altitude: - Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)
- Designed and tested for operation -500 to 10000 ft (-150 to 3000m)
|
|
NEBS criteria levels |
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
|
ETSI |
- ETS 300 019-2-1, Class 1.1 Storage
- ETS 300 019-2-2, Class 2.1 and 2.2 Transportation
- ETS 300 019-2-3, Class 3.1E Stationary Use
|
|
Regulatory Compliance |
EMC Compliance: - FCC Part 15 (CFR 47) Class A
- VCCI Class A with UTP, Class B with STP
- EN55022 Class A with UTP, Class B with STP
- CISPR 22 Class A with UTP, Class B with STP
- CE marking
- AS/NZS 3548 Class A with UTP, Class B with STP
Safety Compliance: - UL 1950
- CSA C22.2 No.950
- EN 60950
- IEC 950
- AS/NZS 3260
- IEC 825
- EN 60825
- 21CFR1040
|
|
Network management |
- ETHERLIKE-MIB (RFC 1643)
- IF-MIB (RFC 1573)
- Bridge MIB (RFC 1493)
- CISCO-STACK-MIB
- CISCO-VTP-MIB
- CISCO-CDP-MIB
- RMON MIB (RFC 1757)
- CISCO-PAGP-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-VLAN-BRIDGE-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- ENTITY-MIB (RFC 2037)
- HC-RMON
- RFC1213-MIB (MIB-II)
- SMON-MIB
|
|
Power Requirements |
- C6800-48P-TX-XL and C6800-48P-TX-XL-XL: 334.44 and 339.44 Watts respectively
- C6800-48P-TX-XL and C6800-48P-TX-XL-XL: 405 and 410 Watts respectively
|
|
Indicators |
- Status: green (operational), red (faulty), and orange (module booting)
- Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
|
