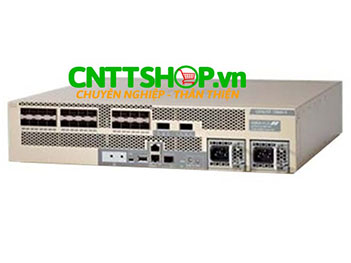

Cisco C6824-X-LE-40G Catalyst 6824-X-Chassis and 2 x 40G (Standard Tables)

Native Optics

SFP/SFP+ and QSFP

Number of 10G Ports

24 + 8 using breakout cable

Number of 40G Ports

2

Features

Full-feature L2/L3 with MPLS, VPLS, IPv4/IPv6 capabilities, 1M Netflow

Additional Hardware Features

Large buffers, SGT, MACSec, LISP, dual priority queues, two-level shaping, Instant Access

Switching Capacity

Up to 160 Gbps Full Duplex

Performance

Up to 120Mpps

Maximum Port Density per Chassis

24 x 10G native + 8 x 10G SFP using breakout cable or 2 x 40G native

Maximum Port Density (VSS)

46 x 10G native + 8 x 10G SFP using breakout cable or 2 x 40G native

Power Supply Compatibility

AC: 750W, DC: 750W

Reliability and Availability

Online Insertion and Removal (OIR)

OIR supported for redundant Power Supplies and fan tray

Physical dimensions (H x W x D)

Inches

3.5 x 17.35 x 21.52

Centimeters

8.89 x 44.07 x 54.66

Rack Units (RU)

2RU

Weight

Chassis with 2 Power Supplies and Built-In Fan

34.83 lbs/15.8 kgs

Input Voltage

100 to 240 VAC
-48 to -72 VDC

Safety

UL 60950 Second Edition

CAN/CSA-C22.2 No. 60950 Second Edition

EN 60950 Second Edition

IEC 60950 Second Edition

AS/NZS 60950

EMC

FCC Part 15 (CFR 47) Class A

VCCI Class A

EN55022 Class A

CISPR 22 Class A

CE marking

AS/NZS 3548 Class A

ETS300 386

EN55024

EN61000-6-1

EN50082-1

NEBS/ETSI

GR-1089-Core NEBS Level 3

ETS 300 019 Storage Class 1.1

ETS 300 019 Transportation Class 2.3

ETS 300 019 Stationary Use Class 3.1

ATIS Pb Free and Energy Efficiency

ATIS-0600020.2010 Pb Free circuit packs

ATIS-0600015-2009 General Energy Efficiency Requirements (TEER)

ATIS-0600015.03-2009 Switch and Router Energy Efficiency

ATIS-0600015.01-2009 Server Energy Efficiency

VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)

Network Management

ETHERLIKE-MIB (RFC 1643)

IP-MIB and IP-FORWARD-MIB for IPv6

IF-MIB (RFC 1573)

Bridge MIB (RFC 1493)

CISCO-STACK-MIB

CISCO-VTP-MIB

CISCO-CDP-MIB

RMON MIB (RFC 1757)

CISCO-PAGP-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-VLAN-BRIDGE-MIB

CISCO-VLAN-MEMBERSHIP-MIB

ENTITY-MIB (RFC 2037)

HC-RMON

RFC1213-MIB (MIB-II)

SMON-MIB

Operating Environment

Operating Temperature

32°F to 104°F (0 to 40°C)

Storage Temperature

-4 to 149°F (-20 to 65°C)

Thermal Transition

0.5°C per minute (hot to cold)
0.33°C per minute (cold to hot)

Relative Humidity

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) non-operating and storage: 5% to 95%

Operating Altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)

Cisco Catalyst 6840-X Power Supply AC-750W

C6840-X-750W-AC=

Cisco Catalyst 6840-X Power Supply DC-750W

C6840-X-750W-DC=
