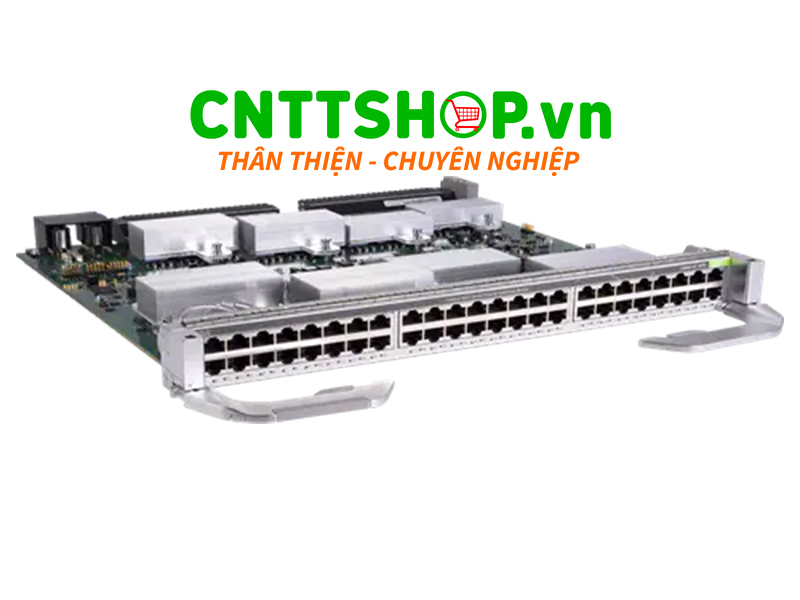

Line Card Cisco C9600-LC-48TX 48-port Multigigabit
| Cisco Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
- 48 ports nonblocking
- 10GE, 5GE, 2.5GE, 1GE, 100Mbps, 10Mbps multigigabit RJ45 Copper ports (Only 10 GE supported on C9600X-SUP-2)
- IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks
- Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1. This line card does not support MACsec with C9600X-SUP-2)
Thông số kỹ thuật C9600-LC-48TX
| Datasheet C9600-LC-48TX | |
| Specifications | |
| Type | Line Card |
| Ports | 48 ports nonblocking |
| Port Speed | 10GE, 5GE, 2.5GE, 1GE, 100M, 10M |
| Max rated power C9600X-SUP-2 | 315 W |
| Max rated power C9600-SUP-1 | 315 W |
| MTBF (Hours) | 543,000 |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab |
| Physical Dimensions (H x W x D) |
1.7 x 15.0 x 13.41 in. (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7 in. (to ejector) (4.32 x 38.1 x 39.88 cm) |
| Weight | 4.03 kg (8.88 lb) |
| Operating Temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Storage Temperature | -40° to 75° C (40° to 167° F) |
| Relative Humidity, Operating and Non-operating, Non-condensing |
10% to 95%, noncondensing |
| Altitude | -60 to 3000 m (-197 to 9843 feet) |
| Safety Conditions | Fiber optic lasers: Class 1 laser products |
| Safety Certifications | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic Emissions Certifications | ● EN55032:2015 ● EN61000-3-2:2014 ● EN55032:2012 ● NM EN 55032:2015 ● QCVN 118:2018/BTTTT ● ICES-003:2016:Iss:6 ● NM EN 61000-3-3:2015 ● NM EN 61000-3-2:2015 ● 47 CFR Part 15:2016 ● KN61000-3-3:2014 ● CISPR32:2012:Ed:1 ● EN300 386:2012:V1.6.1 ● KN61000-3-2:2014 ● CNS13438:2006 ● CISPR32:2015:Ed:2 ● KN32:2015 ● VCCI-CISPR 32:2016 ● EN61000-3-3:2013 ● CISPR24:2010+A1:2015 ● CISPR35:2016:Ed:1 ● EN55024:2010 ● EN55024:2010:A1 ● EN55035:2017 ● EN61000-6-1:2007 ● EN61000-6-2:2005 ● IEC61000-6-1:2016:Ed:3 ● IEC61000-6-2:2016:Ed:3 ● KN35:2015 ● NM EN 55024:2018 ● TCVN 7317:2003 |
| Restriction of Hazardous Substances (ROHS) Compliance | ROHS5 |
