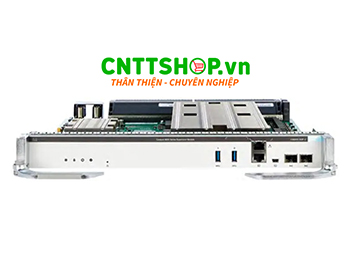

| Datasheet C9600X-SUP-2 |
| Specifications |
| System Switching Capacity |
Up to 25.6 Tbps (Based on 9606R chassis with 4 Line Cards operating at 2.4 Tbps) |
| Per-slot Switching Capacity |
Up to 6.4 Tbps
|
| ASICs |
1x Q200 |
| Forwarding Rate |
8 Bpps |
| DRAM |
32 GB |
| Flash |
16 GB |
| SSD capacity |
Up to 960 GB |
| VLAN IDs |
4,096 |
| PVST Instances |
4,096 |
| STP Virtual Ports (Port* VLANs) for PVST |
32,000 |
| STP Virtual Ports (Port* VALNs) for MST |
100,000 |
| Switched Virtual Interfaces (SVIs) |
4096 |
| Jumbo Frames |
9,216 |
| Total number of MAC Addresses |
Up to 256,000 (Varies based on selected flexible SDM ASIC template) |
| Total number of IPv4 Routes |
Up to 2,000,000 |
| Total number of Ipv6 Routes |
Up to 1,000,000 |
| Address Resolution Protocol (ARP) entries |
Up to 128,000 |
| Neighbor Discovery Protocol (NDP) entries |
Up to 128,000
|
| IGMP/MLD Snooping entries |
Up to 16,000 |
| Multicast Routes |
Up to 32,000 |
| QoS ACL Scale |
Up to 8,000 (Ipv4)
Up to 4,000 (Ipv6)
|
| Security ACL Scale |
Up to 8,000 (Ipv4)
Up to 4,000 (Ipv6)
|
| GRE Tunnels |
Up to 1,024 |
| MACsec sessions |
Up to 1,024 per PHY
|
| NetFlow entries (Ipv4/Ipv6) |
Up to 2,000,000 (sampled) |
| Packet Buffer |
80 MB (Shared Memory System) + 8 GB (High Bandwidth Memory) |
| Minimum software requirement |
Cisco IOS XE Software version 17.7.1 |
| Dimensions (H x W x D) |
1.7 x 15.0 x 13.41 in. (4.32 x 38.1 x 34.06 cm) to faceplate
1.7 x 15.0 x 15.7 in. (4.32 x 38.1 x 39.88 cm) to ejector
|
| Weight |
5.45 Kg (12.02 lb)
|
| Rack Units (RU) |
1 RU |
| Operating Temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet
-5° to 40° C (23° to 104° F) up to 10,000 feet
|
| Storage Temperature |
-40° to 70° C (40° to 158° F) |
| Relative Humidity, Operating and Non-operating, Non-condensing |
10% to 95%, noncondensing |
| Altitude |
-60 to 3000 m (-197 to 9843 feet) |
| Mean Time Between Failures (MTBF) (hours) |
C9600X-SUP-2: 305,880 |
| Line-card support |
C9600-LC-40YL4CD, C9600-LC-24C, C9600-LC-48YL, C9600-LC-48TX |
