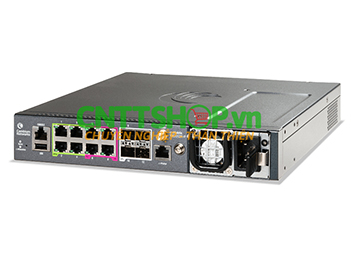

Switch Cambium cnMatrix TX2012R-P.
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
| Throughput | 96 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 1 Gbps Fiber Ports (SFP) | 0 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| PoE+ Enabled Ports 802.3af/at/bt | 8 |
| Low Voltage Passive PoE (24 V) | 4 |
| High Power 4 PPoE (up to 90 W) | 4 |
| Serial Console | Yes |
| USB | Yes |
| Rack Mount Kit | No (optional accessory) |
| Internal Fans | 2 |
| Reset Button | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 128 MB |
| DRAM | 512 MB |
| VLANs | 4K |
| Port Based VLANs | 4K |
| LACP/Trunking | 8 LAGs/8 links per LAG |
| QoS Priority Queues | 8 |
| PVRST | 32 |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| ARP Entries | 512 |
| Static Routes | 64 |
| Dynamic Routing | 512 |
| IGMP Multicast Groups | 256 |
| Policy Based Automation | Yes |
| Cambium Sync (via RJ45 ports) | 8 |
| Redunant Sync Sources | Yes |
| External Antenna Port | Yes |
| cnPulse Port | Yes |
| Removable Power Supply (CRPS) | 1 |
| Redundant Power Supplies | No |
| Power Supply | CRPS dependent |
| Max Switch Power (WITH TRAFFIC) | 38.88W |
| MTBF (hours) | 393648 |
| Unit Weight | 2.24 kg (4.98 lbs) |
| Unit Dimensions (H x L x W) | 4.4 x 25 x 26 cm (1.73 x 9.84 x 10.24 in) |
| Boxed Weight | 2.73 kg (6 lbs) |
| Boxed Dimensions (H x L x W) | 9.2 x 37.5 x 31.5 cm (3.62 x 14.76 x 12.4 in) |
| CPU Speed | 800 MHz |
| LEDs per port | Link/Activity, PoE |
| PoE Power Budget | CRPS dependent (see table) |
| 802.3af/at/bt PoE (54V) | Ports 1-8 |
| 24V Passive PoE - up to 15W | Ports 5-8 |
| 54V Passive PoE - up to 90W | Ports 1-4 |
| 54V Passive PoE - up to 30W | Ports 1-4 |
| PoE Max Power Per Port | 30W/90W |
| Rack Mountable | Not included |
| Wall Mountable | Yes (Optional Accessory) |
| Temperature Ranges | -10°C up to 65°C |
| Operating Humidity | 55°C at 95% RH |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
