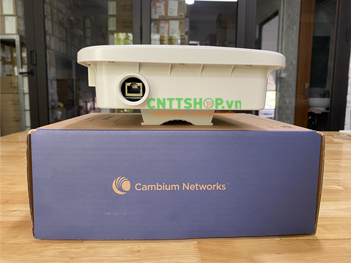

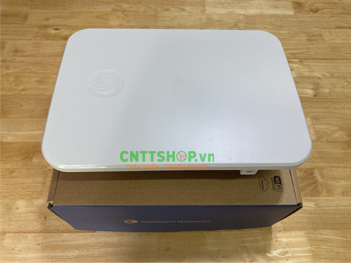

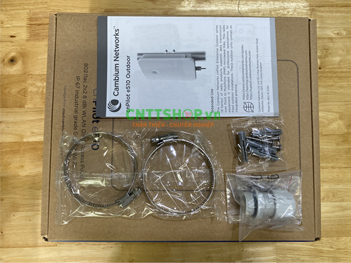

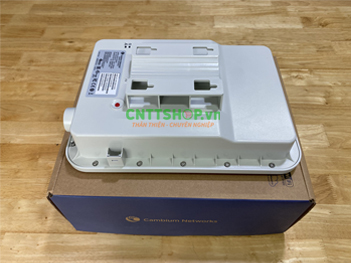

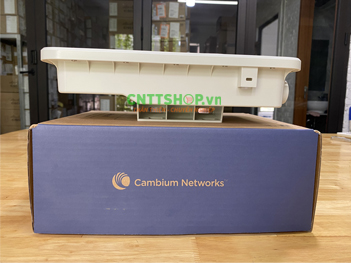

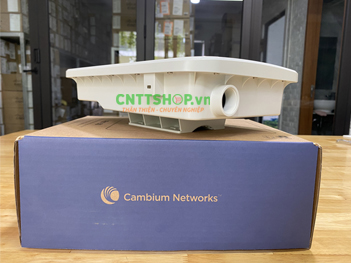

Cambium cnPilot e510 Outdoor Access Point 802.11ac wave 2.
Cambium Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Mô tả tổng quan
Bộ phát wifi chuyên dụng Cambium cnPilot E510 là sự lựa chọn hoàn hảo trong những môi trường có mật độ cao như sân vận động, vùng phủ sóng sự kiện, Wi-Fi công cộng trong môi trường nhiều nhiễu, các vùng phủ sóng hẹp như trong kho, hay khi cần các điểm truy cập WLAN được quản lý bởi bộ điều khiển.
cnPilot e510 Datasheet
Access point cnPilot E510 sử dụng công nghệ 802.11ac ,chống nước IP67, chịu tải lớn 256 user đồng thời, 16 SSID, mã hóa WPA-2, Vlan động, kênh DFS, Danh sách điều khiển truy cập (ACL), v.v.

Thông số kỹ thuật
Access Point Specifications |
Frequency Bands |
US-FCC:
2400 – 2484 MHz, 5150 – 5250 MHz
Industry Canada (ISEDC):
2400 – 2484 MHz, 5725 – 5850 MHz
EU-ETSI:
2400 – 2484 MHz, 5150 – 5250 MHz
ROW (individual country limits may apply. Consult DoC):
2400 – 2500 MHz, 5150 – 5850 MHz
|
Max Phy Rate |
2.4 GHz radio: 400 Mbps
5 GHz radio: 867 Mbps
|
Ethernet Ports |
One IEEE Gigabit Ethernet auto sensing
|
Antenna |
Integrated dual polarized, omni direction 8dBi (2.4GHz) 9dBi (5GHz) |
Max EIRP |
2.4 GHz: 32 dBm
5 GHz: 34.5 dBm
|
WLAN AND NETWORK SPECIFICATIONS |
Controller mode |
Controller-less standalone
AutoPilot heterogeneous network
Cloud managed cnMaestro
On-premises cnMaestro VM
|
WLAN |
256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
|
Captive Portal |
Hosted on cnMaestro Controller
On-AP hosted guest portal
Redirect to HTTP/RADIUS
Server DNS logging
|
Authentication |
Hotspot 2.0/Passpoint 2.0
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS
MAC authentication to local database or external RADIUS
|
Accounting |
RADIUS accounting, multiple AAA |
Scheduled WLAN |
On/off by day, week, time of day
|
Guest Access |
Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network
|
Time/Data Limit |
Time, Rate, Throughput limit per SSID. |
QoS |
WMM. |
Power |
T802.3af or 802.3at Powered Device Max 12.95w (802.3af)
|
Physical Environmental |
IP67 rated housing
Wind Resistance 224 kph 320mm x 215mm x 65mm 1100g
Kensington lock slot
Two multi-color status LEDs
-40C - + 65C ambient op temp
-40C - + 70C storage temperature 95% RH non-condensing
Overvoltage protection, category 1
|
LTE Filter |
LTE bands 38, 40 |
Certifications |
WiFi Alliance 80211a/b/g/n/ac,
Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC60950
EN50121-1 Railway EMC EN50121-4 Railway Immunity
IEC 61373 Railway Shock & Vibration |
Fast Roaming |
802.11r, OKC, Enhanced roaming. |
Mesh |
Multi-hop, either band |
Channel Selection |
autoTune: Manual, or automatic
Selectable off-channel scan
|
Auto Tx Power |
AutoRF: controller-less transmit power |
Network |
NAT, NAT logging firewall, DHCP server
L2, L3 or DNS based access control
VLAN Pooling, RADIUS attribute VID
VLAN per SSID per user
|
Band Steer Load Balance |
Yes |
Tunnel |
L2TP, L2oGRE, PPPoE |
Tools |
Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection |
Services |
NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
API |
RESTful management and statistics API Presence location APIs |
Bạn đang cần tư vấn về sản phẩm: PL-E510X00A-RW ?
Chào anh/chị, bộ phát wifi Cambium PL-E510PXXA-RW có khả năng chịu tải tối đa 256 user theo thông số của nhà sản xuất đưa ra, tuy nhiên thực tế được khuyến khích dùng cho dưới 100 user.
