| Spectrum and Interface |
| Channel Width |
20 | 40 | 80 MHz |
Proprietary
Physical Layer |
4x4 MUMIMO/OFDM |
Channel
Spacing |
Configurable in
5 MHz increments |
| Frequency Range |
Wide Band Operation
4910 - 5970 MHz |
MAC Layer
(Media Access Control) |
Cambium Proprietary |
| Ethernet Interfaced |
100/1000 BaseT, rate auto
negotiated, 802.3at compliant &
Aux SFP port |
Supported Powering
Methods |
56 V PoE (included), standard
802.3at PoE Supply, or CMM5
with 56 V and 5 pin to 7 pin
cross over cable adapter |
Protocols
Used |
IPv4/IPV6 , UDP, TCP, IP, ICMP,
SNMPv2c, HTTPs, STP, SSH, IGMP
Snooping |
| Network Management |
HTTPS, SNMPv2c, SSH |
| VLAN |
802.1Q with 802.1p priority |
| Performance |
| Subscribers per Sector |
Up to 120 |
| ARQ |
Yes |
Nominal Receive Sensitivity
(w/FEC) @20 MHz Channel |
MCS 0 , -92
MCS 8 supported by Wi-Fi -68 |
Nominal Receive Sensitivity
(w/FEC) @40 MHz Channel |
MCS0, -89
MCS9, -64 |
Nominal Receive Sensitivity
(w/FEC) @80 MHz Channel |
MCS0, -86,
MCS9 - 61 |
Modulation Levels
(Adaptive) |
MCS 0 (BPSK) to
MCS 9 (256 QAM-5/6) |
| GPS Synchronization |
Yes, via Internal GPS or
Cambium Sync |
QoS
(Quality of Service) |
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support DSO DFS |
| Link Budget |
Transmit Power
Range |
0 to +32 dBm
(combined, to regional EIRP limit)
(1 dB interval) |
| Antenna |
Sector Antenna Available
Part # C050910D301A
Optional Smart Antenna for UL
Beamforming part #C050900D020A |
| Physical |
| Surge Supression |
1 Joule Integrated |
| Environmental |
IP55 |
| Temperature |
-30°C to 55°C (-22°F to 131°F) |
| Weight |
0.7 kg (1.5 lbs) without bracket |
Dimensions
(Dia x Depth) |
22.2 x 12.4 x 4.5 cm
(8.75 x 4.9 x 1.75 in)
without brackets |
Power
Consumption |
25 W Maximum |
| Input Voltage |
44 V to 59 V |
Sector Antenna
Connection |
4 x 50 ohm,
RP (Reverse Polarity) SMA |
Beamforming Antenna
Connection |
2 x 50 ohm, RP (Reverse Polarity) SMA,
DC Coupled (powering antenna) |
GPS Antenna
Connection |
1 x 50 ohm,
RP (Reverse Polarity) SMA |
| Encryption |
128-bit AES (CCMP mode) |
| Certifications |
| FCCID |
Z8H-89FT0024 |
Industry
Canada Cert |
109W-0024 |
| CE |
See Cambium Website for
Declaration of Conformity |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}

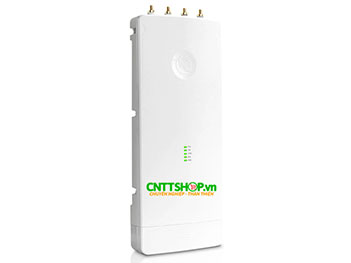

ePMP 3000
