| Spectrum |
| Channel Width MHz |
20 | 40 | 80 |
| Proprietary Physical Layer |
Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing |
Configurable in 5 MHz increments |
| Frequency Range |
4910 - 5970 MHz |
MAC Layer
(Media Access Control) |
Cambium Proprietary |
| Ethernet Interfaced |
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used |
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management |
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ |
| VLAN |
802.1Q with 802.1p priority |
| Performance |
| ARQ |
Yes |
Nominal Receive
Sensitivity (w/FEC)
@20 MHz Channel |
MCS 0 = -87 dBm to
MCS 8 (256 QAM-3/4)
= -63 dBm (per chain) |
Nominal Receive
Sensitivity (w/FEC)
@40 MHz Channel |
MCS 0 = -85 dBm to
MCS 9 (256 QAM-5/6)
= -59 dBm (per chain) |
Nominal Receive
Sensitivity (w/FEC)
@80 MHz Channel |
MCS 0 = -82 dBm to
MCS 9 (256 QAM-5/6)
= -56 dBm (per chain) |
Modulation Levels
(Adaptive) |
MCS 0 (BPSK) to
MCS 9 (256 QAM-5/6) |
Transmit Power
Range |
0 to +27 dBm
(combined, to regional
EIRP limit) (1 dB interval) |
QoS
(Quality of
Service) |
Three level priority
(Voice, High, Low) with
packet classification
by DSCP, COS, VLAN
ID, IP & MAC Address,
Broadcast, Multicast and
Station Priority, MIR/CIR*
support |
| Physical |
Surge
Supression* |
1 Joule Integrated |
| Environmental |
IP55 |
| Temperature |
-30°C to 60°C
(-22°F to 140°F) |
| Weight |
2.4 kg (5.3 lb)
Includes mounting
bracket |
| Wind Survival |
180 km/hour
(112 mi/hour) |
Dimensions
(Dia x Depth) |
47 x 31 cm
(18.5 x 12.2 in)
with mounting bracket
attached |
Pole Diameter
Range |
2.5 - 3 in (6.4 - 7.6 cm)
with included clamp |
Power
Consumption |
12 W
(Up to 15 W in extreme
cold temperatures when
heater is activated.) |
| Input Voltage |
30 V |
| Encryption |
128-bit AES (CCMP mode) |
| Antenna Specifications |
| Frequency Range |
4910 to 5970 MHz |
| Antenna Type |
Dish |
| Peak Gain |
25 dBi |
3 dB Beamwidth
Azimuth |
6º to 10º |
3 dB Beamwidth
Elevation |
6º to 10º |
Front-To-Back
Isolation |
25 dB |
Cross
Polarization |
25 dB |
Switch
.png){kind=icon}
.png){kind=logo}

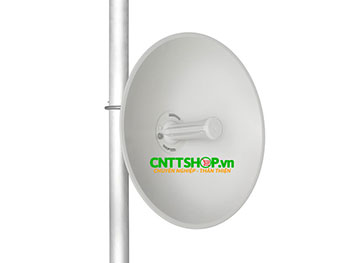

Force 300-25
