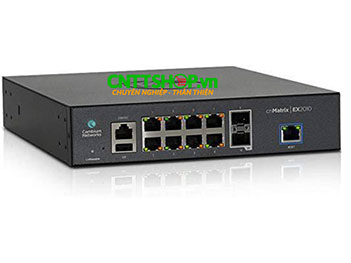

Switch Cambium EX2010 MX-EX2010xxA-E with 8x 1GbE, 2x SFP port

Thiết bị chuyển mạch thông minh Cambium Network cnMatrix EX2010 MX-EX2010xxA-E với 8 cổng 1 GbE, 2 cổng quang SFP với kết nối nhanh, tự động chuyển đổi MDI/MDIX, tương thích nhiều thiết bị đầu cuối. Switch Cambium EX2010 MX-EX2010xxA-E giúp việc đơn giản hóa việc các kết nối cnPilot ™ WLAN tạo sự đồng bộ trong giải pháp quản trị cnMaestro ™.

✓ Mã sản phẩm: MX-EX2010xxA-E

✓ Tình trạng: Còn Hàng

MX-EX2010xxA-E Datasheet

Switch Cambium Network cnMatrix MX-EX2010xxA-E

Name: MX-EX2010xxA-E
Brand: Cambium
SKU: MX-EX2010xxA-E
Availability: InStock
Rating: 5 (45 reviews)

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thông số kỹ thuật:

Throughput	20 Gbps
Forwarding Rate in Mpps (64 Byte Packets)	120
10/100/1000 Ports	8x RJ45
Uplink Ports	2x SFP
Serial Console	1x RJ45
USB	1
Out-of-Band Management Port	Yes
Rack Mount Kit	Optional
Internal Fans	Fanless
Reset Button	Yes
MAC Address Table Size	16K
Flash Storage	128 MB
DRAM	512 MB
VLANs	4K
Port Based VLANs	4K
LACP/Trunking	8 LAGs/8 links per LAG
QoS Priority Queues	8
PVRST	32
Ingress/Egress ACL	128
Static ARP Entries	512
ARP Entries	512
Static Routes	64
Dynamic Routing	512
Policy Based Automation	Yes
Quality of Service	ACL mapping and marking of ToS/DSCP (COS) ACL mapping marking of 802.1p ACL mapping to priority queue DiffServ support Honoring DSCP and 802.1p (CoS) Traffic shaping/metering Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP
Traffic Management	ACL-based inbound rate limiting policies Broadcast, multicast and unknown unicast rate limiting Inbound rate limiting per port Outbound rate limiting per port/queue
Security	802.1x authentication MAC authentication* DHCP snooping RADIUS authentication/authorization Radius/Tacacs/Tacacs+ Authentication, Authorization, and Accounting (AAA) Secure shell Secure copy (SCP)* Local username/password
Layer 2 Feature Set	802.1s multiple spanning tree VLAN, Port, Protocol, 802.1q 802.1d 802.1x authentication Auto MDI/MDIX BPDU Guard, Root Guard IGMP Snooping v1/v2/v3*, Fast Leave LLDP/LLDP MED IGMP Proxy Static MAC Flow Control per port Per VLAN STP (PVST/PVRST) Port Mirroring: port based, ACL based, VLAN based Port Isolation/Private VLAN Edge Link Aggregation Groups (Static/LACP) Rate Limiting/Storm Control Jumbo frame (9k) DHCP Snooping BPDU filtering Broadcast/Multicast/Unlearned Unicast (Storm Control) DoS Protection Ping/TraceRoute/ICMPv6
Layer 3 Feature Set	Inter-VLAN Routing Static ARPs Static Routes DHCP Relay Dynamic Routing – RIPv1/v2 Dynamic Routing – OSPFv2 Route Redistribution
Management	cnMaestro (cloud management) Industry standard Command Line Interface (CLI) DHCP Client Embedded web management (HTTP/HTTPS) Embedded DHCP server USB file management and storage Out-of-Band Ethernet Management SSH / SSH v2 SNMP v1/v2/v3 DHCP relay Simple Network Time Protocol (SNTP) Local/remote system logging Policy Based Automation Display log messages multiple terminals TFTP/SFTP Telnet client/server IPv6 management Password management Autoinstall support for firmware images and config files
Security	Source/Destination IP address TCP/UDP Source/Destination port IP Protocol Type Type of Service (ToS) or differentiated services (DSCP) field Source/Destination MAC address EtherType IEEE 802.1p user priority VLAN ID RFC 1858—Security Considerations for IP Fragment Filtering
Power Supply	100-240 VAC
Max Switch Power	9.88 W
MTBF (Hours)	806,354
Weight	1.6 kg (3.5375 lb)
Dimensions	21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in)
CPU Speed	800 MHz
Temperature Ranges	0°C to 50°C (32°F to 122°F)
Operating Humidity	55° at 95% RH
Storage Temperature	-40°C to 70°C (-40°F to 158°F)

Xem thêm: phân phối cambium
