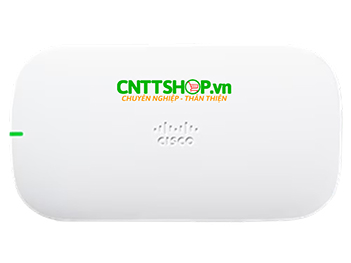

| Datasheet wifi 6 Cisco CBW151AXM-E |
| Specification |
| Authentication and security |
● Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication
● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● Segmentation via VLANs (up to 16)
● 802.11r and 802.11i
● Guest network can also authenticate against a Social Login account: Google and Facebook |
| Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system |
| Maximum # of Access Points |
● 50
● Recommended up to 25 |
| Max # of Mesh Extenders |
● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops |
| Management Compatibility |
● A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity
● CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard version 2.4.1 and higher |
| 802.11ax |
● 2x2 downlink MU-MIMO with two spatial streams
● Uplink/downlink OFDMA
● Target wake time (TWT)
● Basic Service Set (BSS) coloring
● Maximal Ration Combining (MRC)
● 802.11ax beamforming
● 20-, 40-, 80-channels
● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive); Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support
● WPA3 support |
| 802.11ac |
● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
● 20-, 40-, and 80-MHz channels
● DFS |
| Data rates supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| |
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
| |
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) |
| |
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) |
| |
802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11) |
| Available transmit power settings |
2.4 GHz
Up to 20 dBm
5 GHz
Up to 20 dBm |
| Integrated antennas |
● 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
● 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) |
● CBW151AXM-x-NA: 6.7 x 3.6 x 2.1 in. (170.2 x 91.5 x 53.4 mm)
● CBW151AXM-x-EU: 6.7 x 3.6 x 2.7 in. (170.2 x 91.5 x 68.6 mm)
● CBW151AXM-x-UK: 6.7 x 3.6 x 2.4 in. (170.2 x 91.5 x 61 mm)
● CBW151AXM-x-AU: 6.7 x 3.6 x 2.2 in. (170.2 x 91.5 x 55.9 mm) |
| Weight |
● CBW151AXM-x-NA: 10 oz (285 g)
● CBW151AXM-x-EU: 10.3 oz (291 g)
● CBW151AXM-x-UK: 10.6 oz (300 g)
● CBW151AXM-x-AU: 10.2 oz (289 g) |
| Environmental |
● Operating
◦ Temperature: 32° to 104°F (0° to 40°C)
◦ Humidity: 10% to 90% (noncondensing)
◦ Maximum altitude: 9843 ft (3000 m) at 40°C
● Nonoperating (storage and transportation)
◦ Temperature: –22° to 158°F (–30° to 70°C)
◦ Humidity: 10% to 90% (noncondensing)
◦ Maximum altitude: 15,000 ft (4500 m) at 25°C |
| System |
● 1 GB DRAM, 256 MB flash
● 1GHz quad core processor |
| Powering options |
● 100-240V 50/60Hz AC Power |
| Power draw |
● 8.3W |
| Physical security |
● Kensington lock slot |
| Warranty |
Cisco Business 3-year limited hardware warranty
Free software updates, no service contract required |
