| Item |
Specification |
802.11ac Wave
1 and 2
capabilities |
- 1562I: 3 x 3 MIMO with three spatial streams
- 1562E/D 2 x 2 MIMO with two spatial streams
- Multi- and single-user MIMO
- Maximal ratio combining (MRC)
- 802.11ac beamforming (transmit beamforming)
- 20-, 40-, and 80-MHz channels
- PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
- Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
- 802.11 dynamic frequency selection (DFS)
- Cyclic-shift-diversity (CSD) support |
802.11n (and
related)
capabilities |
- 1562I: 3 x 3 MIMO with three spatial streams
- 1562E/D: 2 x 2 MIMO with two spatial streams
- MRC
- 20- and 40-MHz channels
- PHY data rates up to 450 Mbps
- Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
- - 802.11 DFS
- CSD support |
Data rates
supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
Frequency
band and 20-
MHz operating
channels
(regulatory
domains) |
A:
2.412 to 2.462 GHz, 11 channels
5.280 to 5.320 GHz, 3 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
B:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.240 GHz, 4 channels
5.260 to 5.320 GHz, 4 channels
5.500 to 5.720 GHz, 12 channels
5.745 to 5.825 GHz, 5 channels
C:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
D:
2.412 to 2.462 GHz, 11 channels
5.745 to 5.865 GHz, 7 channels
E:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
F:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.805 GHz, 4 channels
G:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
-H:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
-I:
2.412 to 2.472 GHz, 13 channels
-K:
2.412 to 2.462 GHz, 11 channels
5.280 to 5.320 GHz, 3 channels
5.500 to 5.620 GHz, 7 channels
5.745 to 5.805 GHz, 4 channels
-L:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.620 GHz, 7 channels
5.745 to 5.865 GHz, 7 channels
-M:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.805 GHz, 4 channels
-N:
2.412 to 2.462 GHz, 11 channels
5.745 to 5.825 GHz, 5 channels
-Q:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.700 GHz, 11 channels
-R:
2.412 to 2.472 GHz, 13 channels
5.260 to 5.320 GHz, 4 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
-S:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.700 GHz, 11 channels
5.745 to 5.825 GHz, 5 channels
-T:
2.412 to 2.462 GHz, 11 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
-Z:
2.412 to 2.462 GHz, 11 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels |
Maximum
number of
nonoverlapping
channels |
2.4 GHz
- 802.11b/g:
◦ 20 MHz: 3
- 802.11n:
◦ 20 MHz: 3
◦ 40 MHz: 1 (hardware capable)
5 GHz
- 802.11a:
◦ 20 MHz: 27
- 802.11n:
◦ 20 MHz: 27
◦ 40 MHz: 13
- 802.11ac:
◦ 20 MHz: 27
◦ 40 MHz: 13
◦ 80 MHz: 6
|

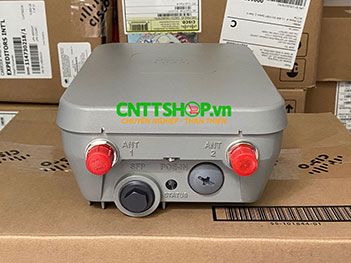

| Interfaces |
- WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
- SFP port (fiber or electrical)
- Management console port (RJ-45)
- Multicolor LED
- DC power input
- Reset button |
| Uplink options |
Ethernet, SFP, and wireless mesh (future availability) |
Dimensions
(L x W x D) |
1562I: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
1562D: 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm)
1562E:: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) |
| Weight |
1562I: 5.6 lb (2.5 kg)
1562D: 5.7 lb (2.6 kg)
1562E: 5.6 lb (2.5 kg) |
| Environmental |
Operating temperature:
- –40 to 65°C (–40 to 149°F) ambient air with no solar loading
- –40 to 55°C (–40 to 131°F) ambient air with solar loading
Storage temperature: –40 to 85°C (–40 to 185°F)
Humidity: 5 - 95%, non-condensing
Wind resistance:
- Up to 100-mph sustained winds
- Up to 165-mph wind gusts |
Environmental
ratings |
- IEC 60529 IP67
- NEMA Type 4X
- Icing protection NEMA 250-2008
- Corrosion NEMA 250-2008 (600 hours)
- Solar radiation EN 60068-2-5 (1200 W/ m2)
- Vibration MIL-STD-810 |
Powering
options |
- AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
- 44–57 VDC input
- Universal Power of Ethernet (UPoE), 802.3at
- Cisco power injectors:
AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)
AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)
AIR-PWRINJ6= (indoor, 802.3at) |
Power
consumption |
1562I 32 W (3x3:3, full power)
1562D/E 25 W |
