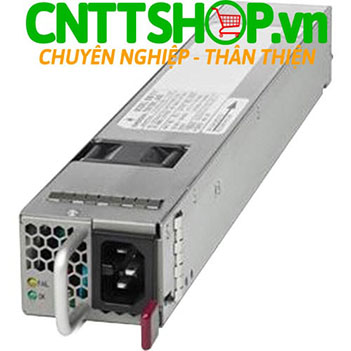

Cisco C4KX-PWR-750AC-F Catalyst 4500-X 750W AC Back-to-Front Cooling Power Supply

AC-input type

Autoranging input with power factor correction (PFC)

AC-input voltage

100 to 240 VAC (115/230 VAC nominal) single-phase

AC-input current

•11 A @ 100 VAC (max)
•6 A @ 200 VAC (max)

AC-input frequency

47 to 63 Hz (50/60 Hz nominal)

Branch circuit requirement

Each chassis power supply should have its own dedicated, fused-branch circuit:

•For North America—15 A
•For International—Circuits should be sized to local and national codes
•All AC power supply inputs are fully isolated.
•Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.

Power supply output capacity

750 W

Power supply output

•12 VDC @ 62 A
•3.3 VDC @ 3 A

Output holdup time

16 ms minimum (20 ms @ 60% load)

BTU (total output)

1122 BTU/hour (nominal)
1365 BTU/hour (max)

AC-input power supply dimensions
(H x W x D)

1.57 x 2.15 x 14.28 in
(3.99 x 5.46 x 36.27 cm)

Weight

2 lb (0.91 kg)

Shipping box dimensions, spare power supply
(H x W x D)

4.38 x 7.13 x 20.13 in
(11.13 x 18.11 x 51.13 cm)

Shipping weight

3.7 lb (1.68 kg)

WS-C4500X-16SFP+

Catalyst 4500-X 16 Port 10GE IP Base, Front-to-Back Cooling, No P/S

WS-C4500X-24X-IPB

Catalyst 4500-X 24 Port 10GE IP Base, Front-to-Back Cooling, No P/S

WS-C4500X-24X-ES

Catalyst 4500-X 24 Port 10GE Enterprise Services, Front-to-Back Cooling, No P/S

WS-C4500X-32SFP+

Catalyst 4500-X 32 Port 10GE IP Base, Front-to-Back Cooling, No P/S

WS-C4500X-40X-ES

Catalyst 4500-X 40 Port 10GE Enterprise Services, Front-to-Back Cooling, No P/S

WS-C4500X-F-16SFP+

Catalyst 4500-X 16 Port 10GE IP Base, Back-to-Front Cooling, No P/S

WS-C4500X-F-32SFP+

Catalyst 4500-X 32 Port 10GE IP Base, Back-to-Front Cooling, No P/S
