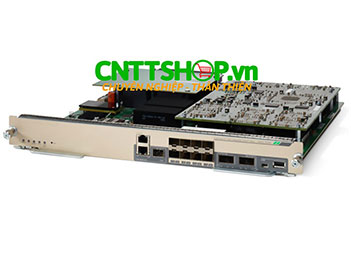

C6800-SUP6T Cisco Catalyst 6800 Series Supervisor Engine 6T

Card điều khiển giám sát Cisco C6800-SUP6T Catalyst 6800 Series Supervisor Engine 6T for Switch Cisco 6807-XL 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E
Mã sản phẩm: C6800-SUP6T
Tình trạng: Còn hàng
Check Giá List

Cisco C6800-SUP6T Catalyst 6800 Series Supervisor Engine 6T

Cisco Part Number              : C6800-SUP6T
Cisco Spare Part Number    : C6800-SUP6T=
Bảo hành                              : 12 tháng
List Price                              : $34,000
Giá Bán                                 : Liên hệ

Made In                                : Asia
Stock                                    : Liên hệ

Card điều khiển giám sát Cisco C6800-SUP6T được thiết kế để mang lại hiệu suất cao hơn, khả năng mở rộng tốt hơn và các tính năng hỗ trợ phần cứng nâng cao. Cisco C6800-SUP6T Supervisor Engine 6T tích hợp cấu trúc chuyển đổi 6 Terabit cho phép hiệu suất cao trên Cisco Catalyst 6807-XL.

View Datasheet C6800-SUP6T

Cisco C6800-SUP6T có khả năng cung cấp chuyển tiếp hiệu suất cao cho các dịch vụ Lớp 2 và Lớp 3. Bộ tính năng phong phú của Cisco C6800-SUP6T hỗ trợ các ứng dụng hiện có như IP forwarding, Layer 2 and Layer 3 Multiprotocol Label Switching (MPLS) VPNs, VPLS, MACSEC trong khi hỗ trợ các tính năng mới như Instant Access, SGT, Hardware-Enabled BFD Offload và In-band Span
Cisco C6800-SUP6T Catalyst 6800 Series Supervisor Engine 6T

Thông số kỹ thuật

Attribute

C6800-SUP6T

MAC entries

128K

Routes

256K (IPv4)

128K (IPv6)

ACL entries

64K shared for QoS and security

NetFlow entries

512K per PFC4/4XL

Multicast routes

Up to 128K (IPv4)

Up to 128K (IPv6)

IPv4 routing

In hardware

Up to 780 Mpps*

IPv6 routing

In hardware

Up to 390 Mpps*

Layer 2 bridging

In hardware

Up to 780 Mpps

Jumbo frame support

Up to 9216 bytes

(for bridged and routed packets)

VLAN

4K

Bridge domains

16K

MPLS

MPLS in hardware to support use of Layer 3 VPNs and Ethernet over (EoMPLS) tunneling

Up to 8192 VRFs, with a total of up to 256K forwarding entries per system

Logical interfaces

128K

EtherChannel hash

8 bits

VPLS

In hardware (up to 390 Mpps)

Generic Routing Encapsulation (GRE)

In hardware (up to 390 Mpps)

Network Address Translation (NAT)

Hardware assisted

Onboard memory

4 GB

Ingress buffers

1.25 MB per 10-Gb port in 2:1 mode

2.5 MB per 10-Gb port in 1:1 mode

(10 MB per port ASIC)

Egress buffers

250 MB per 10-Gb port in 2:1 mode

1 GB per 40-Gb port in 2:1 mode

500 MB per 10-Gb port in 1:1 mode

2 GB per 40-Gb port in 1:1 mode

(2 GB per fabric interface and replication engine (FIRE) ASIC)

Chassis compatibility

-  6500 E-Series: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E
-  6800 Series: Cisco Catalyst 6807-XL

Switch fabric

-  6-Tbps crossbar switch fabric with 28 fabric channels

Line card compatibility

-  C6800-8P40G, C6800-8P40G-XL
-  C6800-8P10G, C6800-8P10G-XL
-  C6800-16P10G, C6800-16P10G-XL
-  C6800-32P10G, C6800-32P10G-XL
-  C6800-48P-SFP, C6800-48P-SFP-XL
-  C6800-48P-TX, C6800-48P-TX-XL
-  WS-X6904-40G-2T, WS-X6904-40G-2TXL
-  WS-X6908-10G-2T, WS-X6908-10G-2TXL
-  WS-X6824-SFP-2T, WS-X6824-SFP-2TXL
-  WS-X6848-SFP-2T, WS-X6848-SFP-2TXL
-  WS-X6848-TX-2T, WS-X6848-TX-2TXL
-  WS-X6816-10T-2T, WS-X6816-10T-2TXL
-  WS-X6816-10G-2T, WS-X6816-10G-2TXL
-  With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-A, WS-F6k-DFC4-AXL)
-  WS-X6704-10GE
-  WS-X6724-SFP
-  WS-X6748-SFP
-  WS-X6748-GE-TX
-  With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-E, WS-F6k-DFC4-EXL)
-  WS-X6716-10GE
-  WS-X6716-10T

Service Modules

No Service Modules are supported

Supported IA clients

-  C6800IA-48TD – 48-port data-only IA
-  C6800IA-48FPD – 48-port PoE/PoE+
-  C6800IA-48FPDR – 48-port PoE/PoE+
-  WS-C3560CX-12PD-S – 12-port PoE, 8-port PoE+
-  WS-C3560CX-8XPD-S – 8-port PoE

Slot requirements

Occupies the Supervisor slots as follows:

-  3-slot E-chassis – slots 1 and 2
-  4-slot E-chassis – slots 1 and 2
-  6-slot E-chassis – slots 5 and 6
-  7-slot 6807-XL chassis – slots 3 and 4
-  9-slot V-E chassis – slots 5 and 6
-  9-slot E-chassis – slots 5 and 6
-  13-slot E-chassis – slots 7 and 8

Software compatibility

-  Cisco IOS ® Software Release 15.3(1)SY and future releases

Software packages

-  IP Services
-  Advanced Enterprise

Mgmt0

-  RJ45/SFP replaces the Connectivity Management Processor (CMP)

DRAM

-  4-GB DDR3

NVRAM

-  4 MB

Bootdisk

-  4 GB (eUSB)

Disk 0

-  USB type A host drive

USB console port

-  USB type B mini

Management LED

-  Blue Beacon LED

Uplink ports

-  8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports
-  2 x 40-Gb QSFP ports

Reliability and availability

-  Stateful Switchover + Nonstop Forwarding (SSO+NSF)
-  Fast Software Upgrade (FSU)
-  Enhanced Fast Software Upgrade (EFSU) – (Single Box, 2 Supervisors)
-  In-Service Software Upgrade (ISSU) – (VSS, VS4O)
-  Online Insertion and Removal (OIR) hot swap of power supplies, modules, fan trays, supervisors

Physical specifications

-  (H x W x D): 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm)
-  Weight: 11.64 lbs

Power consumption

341 W maximum

ECC

-  ECC protection support

Environmental conditions

-  Operating temperature: 32 to 104°F (0 to 40°C)
-  Storage temperature: -40 to 167°F (-40 to 75°C)
-  Relative humidity: 10 to 90 percent, noncondensing

Software Part Numbers cho Supervisor C6800-SUP6T

Software Part Number

Description

SP6TAEK9-15301SY

Cisco CAT6800-S6T IOS ADV ENT SERV FULL ENCRYPT

SP6TAEK9N-15301SY

Cisco CAT6800-S6T IOS ADVANCED ENTERPRISE SERVICES NPE

SP6TISK9-15301SY

CAT6800-S6T IOS IP SERV LAN ONLY FULL ENCRYPT

SP6TISK9N-15301SY

CAT6800-S6T IOS IP SERV LAN ONLY NPE
