| Software |
● Cisco Unified Wireless Network Software Release 8.10.x or later
● Cisco IOS ® XE Software Release 16.12.1 with AP Device Pack, or later |
| Supported wireless LAN controllers |
● Cisco Catalyst 9800 Series Wireless Controllers
● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities |
● 4x4 MIMO with four spatial streams
● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g
● 20- and 40-MHz channels
● PHY data rates up to 1.72 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support |
| 802.11ac |
● 8x8 downlink MU-MIMO with eight spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, 80-, and 160-MHz channels
● PHY data rates up to 4.8 Gbps (160 MHz with 5 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support |
| 802.11ax |
● 8x8 uplink/downlink MU-MIMO with eight spatial streams
● Uplink/downlink OFDMA
● TWT
● BSS coloring
● MRC
● 802.11ax beamforming
● 20-, 40-, 80-, and 160-MHz channels
● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support |
| Integrated antenna |
● 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
● 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |

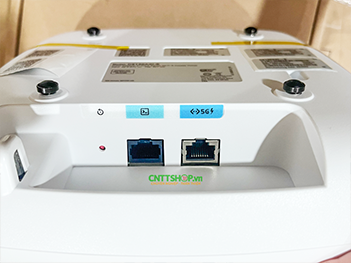

| Interfaces |
● 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3az
● Management console port (RJ-45)
● USB 2.0 at 4.5W (enabled via future software) |
| Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) |
● 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
| Weight |
● 3.2 lb. (1.45 kg) |
| Input power requirements |
● 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE ®)
● Cisco power injector, AIR-PWRINJ6=
● 802.3af PoE
● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Environmental |
● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)
● Operating temperature: -4° to 122°F (-20° to 50°C)
● Operating humidity: 10% to 90% (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.(3000 m) |
| System memory |
● 2048 MB DRAM
● 1024 MB flash |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: C9130AXI-S ?
Chào bạn,
Theo thông số của hãng thì bộ phát wifi Cisco 9130AXI-S hỗ trợ tối đa 500 user, tuy nhiên trong môi trường thực tế do có nhiều dịch vụ chạy kèm nên số lượng client đồng thời sẽ thấp hơn nhiều.
Bạn có thể tham khảo tại link:
https://www.cisco.com/c/en/us/products/wireless/access-point-controller-comparison.html?product_id=46
Bộ phát Wifi Cisco C9130AXI-S bảo hành 12 tháng bạn nhé.
CNTTShop chuyên phân phối wifi Cisco với giá tốt nhất thị trường, đã báo giá 10 bộ phát wifi Cisco C9130AXI-S Cisco Catalyst 9130 Series Access Point WiFi 6, indoor, internal antennas, bạn check mail nhé
Nguồn AIR-PWRINJ6= có dùng được cho wifi Cisco C9130AXI-S Cisco Catalyst 9130 Series Access Point WiFi 6 bạn nhé.
Mình đã gửi báo giá 10 bộ wifi Cisco C9130AXI-S qua mail, bạn vui lòng kiểm tra mail nhé.
