C9606R Switch Cisco Catalyst 9600 Series 6 Slot Chassis
Thiết bị mạng Switch Cisco C9606R Catalyst 9600 Series 6 Slot Chassis, 2 Supervisor engine slots, 4 Line-card slots, 4 power supply Slot
- Danh mục sản phẩm cisco 9600 series
- Scenario
- Switch Type
- Số Cổng
- Routing/Switching
- Downlink Ports
- Uplink Ports
- Management
- Configurations
- Features

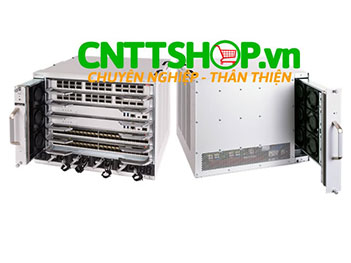

Switch Cisco C9606R Catalyst 9600 Series 6 Slot Chassis
| Cisco Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Mô tả tổng quan
Switch Cisco C9606R là nền tảng truy cập chuyển mạch doanh nghiệp module hàng đầu của Cisco được xây dựng để bảo mật, IoT( internet of think) và đám mây. Các thiết bị chuyển mạch này tạo thành khối xây dựng cơ bản cho SD-Access - kiến trúc doanh nghiệp dẫn đầu của Cisco.
Switch Cisco C9606R cung cấp khả năng bảo vệ đầu tư chưa từng có với kiến trúc khung có khả năng hỗ trợ lên đến 2.4 Tbps trên 1 slot băng thông hệ thống.
Tính năng của Switch Cisco C9606R
|
Feature |
Cisco Catalyst 9606R chassis |
|
Total number of slots |
6 |
|
Line-card slots |
4 |
|
Supervisor engine slots |
2 |
|
Dedicated supervisor engine slot numbers |
3 and 4 |
|
Supervisor engine redundancy |
Yes |
|
Supervisor engines supported |
C9600-SUP-1 |
|
Maximum bandwidth scalability per line-card slot |
6.4 Tbps Hardware 2.4 Tbps Per Slot With C9600-SUP-1 |
|
Number of power supply bays |
4 |
|
Minimum number of power supplies |
2 (Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V) |
|
Power supplies supported |
2000W AC, 2000W DC |
|
Number of fan-tray bays |
1 |
|
Dimensions |
35.43 x 44.2 x 40.9 cm 13.95 x 17.4 x 16.1 in. |
|
Rack Units (RU) |
8 |
|
Chassis weight with 2 power supplies (AC) and fan tray |
31.31 kg (69.03 lb) |
|
Input voltage |
AC: 90V to 264V, 47 to 63 Hz AC DC: -40V to -72V |
|
Operating temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
|
Storage temperature |
-40° to 75° C (40° to 167° F) |
|
Relative humidity, operating and nonoperating, noncondensing |
10% to 95%, noncondensing |
|
Altitude |
-60 to 3000 m (-197 to 9843 feet) |
|
Mean Time Between Failures (MTBF) (hours) |
C9606R chassis: 4,113,900 C9606 fan tray: 452,570 |
|
Chassis weight (without fan tray, without PSU) |
25.36 kg (55.90 lb) |
|
Weight of fan tray |
3.56 kg (7.85 lb) |
|
Weight of individual PSUs |
AC PSU: 1.2 kg (2.65 lb) DC PSU: 1.28 kg (2.82 lb) |
|
Safety certifications |
- IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences
- AS/NZS 60950.1.2011
- CAN/CSA-C22.2 No. 60950-1-07
- GB 4943-95
- EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences
- NOM-019-SCFI-1998
- UL 60950-1, Second Edition
|
|
EMI and EMC compliance |
47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
Cisco C9600-SUP-1 Catalyst 9600 Series Supervisor 1 Module Card for C9606R List Price: Updating...
Cisco C9600-SUP-1/2 Catalyst 9600 Series Redundant Supervisor 1 Module for C9606R List Price: Updating...
Cisco C9600-LC-48YL Catalyst 9600 Series 48-Port 25GE/10GE/1GE Line Module Card for Switch Cisco C9606R List Price: Updating...
Cisco C9600-LC-24C Catalyst 9600 Series 24-Port 40GE/12-Port 100GE Expansion Line Module Card for Switch Cisco C9606R List Price: Updating...
Cisco C9600-PWR-2KWAC Catalyst 9600 Series 2000W AC Power Supply for switch Cisco C9606R List Price: Updating...
Cisco C9600-PWR-2KWDC Catalyst 9600 Series 2000W DC Power Supply for switch Cisco C9606R List Price: Updating...
Cisco C9606-FAN Catalyst 9600 Series C9606 Chassis Fan Tray
List Price: Updating...
Cisco C9K-F2-SSD-240GB Catalyst 9600 Series 240GB SSD Storage for Switch Cisco C9606R List Price: Updating...
Cisco C9K-F2-SSD-480GB Catalyst 9600 Series 480GB SSD Storage for Switch Cisco C9606R List Price: Updating...
Giấy phép bản quyền C9600-DNA-A Cisco C9600 DNA Advantage Term License List Price: Updating...
Giấy phép bản quyền C9600-DNA-A-3Y Cisco C9600 DNA Advantage 3 Year License List Price: Updating...
