| Feature |
| 802.11ac Wave 1 and 2 capabilities with MU‑MIMO technology |
The IEEE 802.11ac standard delivers improved experience in typical environments, and more predictable performance for advanced applications such as 4K or 8K video, high-density high-definition collaboration apps, all-wireless offices, and Internet of Things (IoT). Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. |
| Simplified management |
Deploy and configure multiple Cisco Business Wireless access points and mesh extenders easily without a physical controller, using Cisco Business Mobile app. Optional multisite remote management is available through Cisco FindIT Network Management. |
| Mesh technology support |
Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business. |
| Flexible deployment |
Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more. |
| Specification |
| Authentication and security |
Wi-Fi Protected Access 2 (WPA2 ); WPA3 is coming in a future release
802.1X, Remote Authentication Dial-In User Service (RADIUS); Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i
Guest network can also authenticate against: Google and Facebook
|
| Maximum clients |
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system |
| Maximum # of access points |
50
Recommended up to 25
|
| Ma Max # of mesh extenders |
Maximum number of associated Cisco Business mesh extenders: 25 per access point, up to 8 hops |
| 802.11ac |
4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps
802.11ac beamforming
20, 40, 80 MHz channels
Dynamic Frequency Selection (DFS)
|
| Integrated antenna |
2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional
5 GHz, peak gain 5 dBi, internal antenna, omnidirectional
|
| Ethernet ports |
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
|

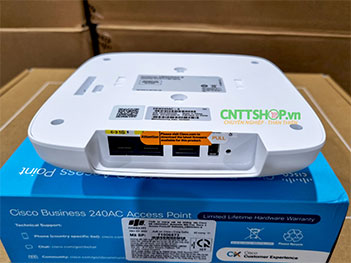

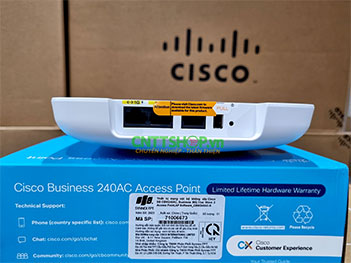

| Interfaces |
2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
RJ-45 console port (not functional)
USB 2.0 (not functional)
|
| Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) |
Access point (without mounting brackets): 7 x 7 x 1.5 in |
| Weight |
0.94 lb (0.43 kg) |
| Powering options |
802.3af/at Ethernet switch, a Cisco Business Switch with PoE is recommended
Optional Cisco Business Power over Ethernet injector (CB-PWRINJ-xx)
|
| Power draw |
13.2W |
| Environmental |
Nonoperating (storage) temperature: —22° to 158°F (—30° to 70°C)
Nonoperating (storage) altitude test: 25˚C, 15,000 ft
Operating temperature: 32° to 122°F (0° to 50°C)
Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft
|
