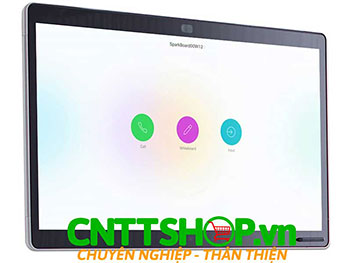

Cisco Webex Board 55S CS-BOARD55S-G-K9
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị hội nghị truyền hình Cisco Webex Board 55S CS-BOARD55S-G-K9 là một hệ thống video conference all-in one trên màn hình LED 4K 55 inch độ phân giải cao. Với camera 4K tích hợp, micrô và màn hình cảm ứng điện dung, Cisco CS-BOARD55S-G-K9 mang đến sự thông minh, phong cách và khả năng sử dụng cho các phòng họp, từ nhỏ đến lớn.
Cisco Webex Board 55S Datasheet
Cisco Webex Board 55S CS-BOARD55S-G-K9 cung cấp các dịch vụ kết nối thông qua dịch vụ Cisco Webex, Cisco Webex Teams hoặc Meetings, để bạn có thể tham gia các cuộc họp và trình chiếu các nội dung của mình. Webex Board 55S được thiết kế cho cuộc trò chuyện trong không gian nhỏ tối đa năm người.

Thông số kỹ thuật của Cisco CS-BOARD55S-G-K9
Type
|
Specifications
|
Software
|
For cloud deployments - Cisco Webex Room OS, provisioned and updated by Cisco Webex
For on-premises deployments – CE9.8 or later
|
Components
|
Fully integrated unit is delivered with:
- Multi-touch 55-inch LED display
- 4K camera
- 12-microphone array
- Speakers
- White boarding pen |
Display
|
- Edge LED LCD – 55-inch 4K, 350 nits, 16:9
- Viewing angle: +- 89 degrees (all directions)
- Number of colors: 1.07 billion (10 bit)
- Contrast: 1:4000
- Response time: 5.5 ms |
User interface
|
- Control the Webex Board from the touch screen
- Capacitive touch screen with protective glass and optical bonding
- Multi-touch
- Optionally use Cisco Touch 10 control unit |
Inputs and outputs
|
- HDMI input
- Home button
- 3.5-mm mini jack audio out (line out)
- USB-C (future use)
- USB micro (service) |
Camera overview
|
- Fixed lens, infinite focus
- F-value: 2.8
- 4Kp60
- Horizontal Field Of View (HFOV): 83 degrees
- Vertical Field Of View (VFOV): 55 degrees
- Camera mounted tilted: -25 degrees |
Audio system
|
- 12-element microphone array (with intelligent voice tracking)
- Integrated voice-optimized speakers |
Network
|
- Ethernet (RJ-45) 100/1000 Mbps
- Wi-Fi 802.11a/b/g/n; 802.11ac (2.4 and 5 GHz)
- Bluetooth ready
- IPv4 Dynamic Host Configuration Protocol (DHCP)/static
- IPv6 (both static and stateless address auto-configuration)
- Network Time Protocol (NTP)
- HTTP Proxy support (for signaling, not media)
- Inspecting TLS Proxy supported
- Cisco Discovery Protocol (CDP)
- 802.1X network authentication (Passphrase or X.509 client certificate)
- 802.1Q virtual LAN
- 802.1p (Qos and Class of Service [CoS]) |
User controls
|
- Control Cisco Webex Board directly from the touchscreen or using the Cisco Webex Teams or Meetings app
- Optionally use Cisco Touch 10 control unit |
Language support
|
- English, Spanish, German, French, French Canadian, Portuguese, Japanese, Czech, Danish, Dutch, Norwegian, Swedish, Latin American Spanish, Italian, Finnish, Polish, Turkish
- Additional languages to be supported in future software release |
System management
|
- For cloud deployments - Cisco Webex Board is managed in the administrator Webex Control Hub, giving system status and overview, activation, configuration, metrics, and troubleshooting
- For on-premises deployments, Webex Board can be managed with Cisco UCM or Expressway |
System requirements for cloud deployments
|
- Cisco Webex Board is connected to the Cisco Webex cloud service using RESTful APIs. Communication with other Webex Boards, Webex Teams apps, or other third-party solutions is provided through Cisco Webex
- Communication with Cisco Webex uses the H.264 codec for video and the OPUS codec for audio
- Real-time media (voice, video, and screen sharing) is encrypted using the Secure Real-Time Transport Protocol (SRTP); end-to-end encryption uses Advanced Encryption Standard (AES) 128, AES 256, SHA1, SHA256, and RSA |
Bandwidth requirements
|
For Webex deployments
Minimum bandwidth:
- 720p30 from 768 Kbps
- 1080p30 from 1.72 Mbps
Maximum bandwidth:
- Transmit: 4.3 Mbps
- Receive: 10 Mbps
For on-premises deployments
Minimum bandwidth:
- 720p30 from 768 kbps
- 1080p30 from 1472 kbps
Maximum up to 6 Mbps point to point
|
Audio features
|
Microphone array with intelligent voice tracking capabilities
- High-quality 20-kHz audio
- Acoustic echo cancellation
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization |
Presentation capabilities
|
1 HDMI input for local presentation or sharing in meetings
- Supports formats up to a maximum 4K (3840 x 2160) (HDMI)
- Frame rate of 60 fps for up to 1080p and 30 fps for 2160p (HDMI)
- Extended Display Identification Data (EDID)
- Audio over HDMI |
Live video resolutions (encode/decode) – main video and presentation sharing
|
Main video:
- Up to 1920 x 1080@30 (HD1080p)
Presentation sharing:
- Up to 1920 x 1080@30 (HD1080p) |
Bạn đang cần tư vấn về sản phẩm: CS-BOARD55S-G-K9 ?
bộ chân CS-BOARD55-FS= dùng cho bộ hội họp trực tuyến Cisco CS-BOARD55S-G-K9 Cisco Webex Board 55S phải đặt hàng bạn nhé
CNTTShop có sẵn cable HDMI CAB-PRES-2HDMI-GR dùng cho bộ hội nghị truyền hình Cisco Webex CS-BOARD55S-G-K9 nhé bạn. Báo giá cable đã được gửi vào mail, bạn vui lòng kiểm tra để biết thông tin.
Bộ hội nghị truyền hình Cisco Webex CS-BOARD55S-G-K9 có thể kết nối với bộ hội nghị truyền hình Cisco Webex CS-KIT-MINI-K9 thông qua IP WAN (hoặc VPN), kết nối giữa 2 điểm cầu thì không cần mua license nhé bạn.
Dạ Camera tích hợp trên thiết bị Cisco Webex Board 55S CS-BOARD55S-G-K9 là 4K, 60p, f/2.8, góc thu hình chiều ngang rộng 83 độ, góc dọc rộng 55 độ ạ.
Thông tin chi tiết của thiết bị họp trực tuyến Cisco Webex Board 55S CS-BOARD55S-G-K9 đã được trả lời qua mail của bạn, bạn vui lòng check mail nhé.
