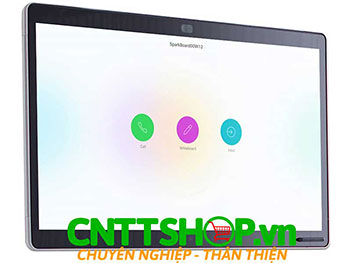

Cisco Webex Board 70 CS-BOARD70-K9
| Cisco Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị hội thảo trực tuyến Cisco CS-BOARD70-K9 mang đến trải nghiệm hội nghị truyền hình hàng đầu trong ngành mà khách hàng mong đợi từ Cisco. Cisco Webex Board 70 CS-BOARD70-K9 phù hợp mọi không gian họp với màn hình LED 4K 70 inch độ phân giải cao, camera 4K và micrô tích hợp, mang đến sự thông minh, phong cách và khả năng sử dụng cho các phòng họp, từ nhỏ đến lớn.
Cisco Webex Board 70 Datasheet
Webex Board 70 CS-BOARD70-K9 không chỉ đẹp và dễ sử dụng, nó còn có giá cả phải chăng và dễ cài đặt và triển khai được thiết kế cho các phòng họp trực tuyến từ 8 đến 10 người.
Thông số kỹ thuật của Cisco CS-BOARD70-K9
|
Type
|
Specifications
|
|
Software
|
Cisco Webex Board OS, provisioned by Cisco Webex
|
|
Components
|
Fully integrated unit is delivered with:
- Multi-touch 70-inch LED display
- 4K camera
- 12-microphone array
- Speakers
- White boarding pen |
|
Display
|
- Edge LED LCD – 70-inch 4K, 300 nits, 16:9
- Viewing angle: +- 88 degrees (all directions)
- Number of colors: 1.07 billion (10 bit)
- Contrast: 1:4000
- Response time: 6 ms |
|
User interface
|
- Capacitive touch
- Protective glass with optical bonding
- Multi-touch |
|
Inputs and outputs
|
- HDMI input
- Home button
- 3.5-mm mini jack audio out (line out)
- One USB 3.0 (for serviceability) |
|
Camera overview
|
- Fixed lens, infinite focus
- F-value: 2.8
- 4Kp60
- Horizontal Field Of View (HFOV): 83 degrees
- Vertical Field Of View (VFOV): 55 degrees
- Camera mounted tilted: -25 degrees |
|
Audio system
|
- 12-element microphone array (with intelligent voice tracking)
- Integrated voice-optimized speakers |
|
Network
|
- Ethernet (RJ-45) 100/1000 Mbps
- Wi-Fi 802.11a/b/g/n; 802.11ac (2.4 and 5 GHz)
- IPv4 Dynamic Host Configuration Protocol (DHCP)/static
- Network Time Protocol (NTP)
- HTTP Proxy support (for signaling, not media) |
|
User controls
|
- Control Cisco Webex Board directly from the touchscreen or using the Cisco Webex Teams app |
|
Language support
|
- English, Spanish, German, French, French Canadian, Portuguese, Japanese, Czech, Danish, Dutch, Norwegian, Swedish, Latin American Spanish, Italian, Finnish, Polish, Turkish
- Additional languages to be supported in future software release |
|
Physical dimensions (H x W x D)
|
- 40.7 x 64.1 x 2.4 in (1034 x 1627 x 61 mm) |
|
Weight
|
- 141.8 lb (64.3 kg) |
|
Physical dimensions and weight of packaging (H x W x D)
|
Main unit
- Consolidated package size: 47.5 x 73.8 x 9.6 in (1207 x 1875 x 245 mm)
- Weight: 141.8 lb (64.3 kg)
- Shipping weight (including packaging): 159.4 lb (72.3 kg)
Wall mount
- Consolidated package size: 10.1 x 66 x 3.6 in (256 x 1675 x 92 mm)
- Weight: 13.2 lb (6 kg)
- Shipping weight: 15.4 lb (7 kg)
Floor stand
- Consolidated package size: 60 x 47 x 6.7 in (1524 x 1186 x 172 mm)
- Weight: 33 lb (15 kg)
- Shipping weight: 37.5 lb (17 kg)
Wall Stand
- Consolidated package size: 64.7 x 45.8 x 4.6 in (1643 x 1164 x 116 mm)
- Weight: 28.7 lb (13 kg)
- Shipping weight: 39.7 lb (18 kg)
Cisco Webex Board and the selected mounting option will be shipped in a consolidation pack on a pallet. The dimensions above describe each of the individual boxes within the consolidation packaging.
|
|
Power
|
- Autosensing power supply
- 100 to 240 VAC, 50 to 60 Hz
- Power consumption:
+ Sleep: 55W
+ Idle or in-use: 240W |
|
System management
|
Cisco Webex Board is managed in the administrator portal in Cisco Webex, giving system status and overview, activation, configuration, metrics, and troubleshooting.
|
|
Operating temperature and humidity
|
- 0° to 35°C (32° to 95°F) at relative humidity 10% to 90% (noncondensing) |
|
Approvals and compliance
|
- Directive 2014/35/EU (Low-Voltage Directive)
- Directive 2014/30/EU (EMC Directive) – Class A
- Directive 2014/53/EU (Radio Equipment Directive)
- Directive 2011/65/EU (RoHS)
- Directive 2002/96/EC (WEEE)
- NRTL approved (Product Safety)
- FCC CFR 47 Part 15B (EMC) – Class A
- FCC Listed (Radio Equipment) |
|
System requirements
|
- Cisco Webex Board is connected to Cisco Webex using RESTful APIs. Communication with other Webex Boards, Webex Teams apps, or other third-party solutions is provided through Cisco Webex platform
- Communication with Cisco Webex uses the H.264 codec for video and the OPUS codec for audio
- Real-time media (voice, video, and screen sharing) is encrypted using the Secure Real-Time Transport Protocol (SRTP); end-to-end encryption uses Advanced Encryption Standard (AES) 128, AES 256, SHA1, SHA256, and RSA |
|
Bandwidth requirements
|
Minimum bandwidth:
- 720p30 from 768 Kbps
- 1080p30 from 1.72 Mbps
Maximum bandwidth:
- Transmit: 4.3 Mbps
- Receive: 10 Mbps |
|
Video inputs
|
1 HDMI for local presentation or sharing in meetings
Supports formats up to maximum 4K (3840 x 2160)
Frame rate of 60 fps for up to 1080p and 30 fps for 2160p
Extended Display Identification Data (EDID)
|
|
Presentation capabilities
|
- Local presentation up to 4K
- Audio over HDMI |
|
Live video resolutions (encode/decode)
|
Main video:
- Up to 1920 x 1080@30 (HD1080p)
Presentation sharing:
- Up to 1920 x 1080@30 (HD1080p) |
|
Audio features
|
- High-quality 20-kHz audio
- Acoustic echo cancellation
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization
- Microphone array with intelligent voice tracking capabilities |
