Software compatibility
|
- Cisco Collaboration Endpoint Software Version 9.4 or later, or Cisco Webex Room OS |
|
Default components in Webex Room 70 G2
|
- Cisco Webex Codec Pro for Room 70 G2
- Cisco Webex Quad Camera
- Loudspeakers
- Cisco Touch 10 control unit
- Mounting option – Floor stand or wall mount
- 2x Cisco Table Microphone (with Euro block plug)
- 2x presentation cable (HDMI – HDMI), LAN cable, and power cable |
|
Displays
|

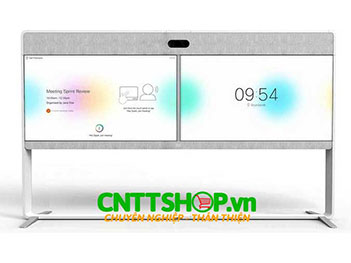

Cisco Webex Room 70D G2
- 2x 70-inch TFT-LCD monitor, edge-lit LED
- Resolution: 3840 x 2160 (16:9)
- Contrast ratio: Typical 4000:1
- Viewing angle:
+ +/- 88 degrees (typical)
+ +/- 70 degrees (minimum)
- Response time: Typical 6 ms
- Brightness:
+ 230 cd/m2 @ 7,200K (default)
+ 260 cd/m2 @ 10,000K |
|
Optional hardware components
|
- Additional Table Microphone, Ceiling Microphone |
|
Bandwidth
|
- Up to 6 Mbps point to point |
|
Minimum bandwidth for resolution/frame rate
|
- 720p30 from 768 kbps
- 720p60 from 1152 kbps
- 1080p30 from 1472 kbps
- 1080p60 from 2560 kbps |
|
Firewall traversal
|
- Cisco Expressway ™ technology
- H.460.18, H.460.19 firewall traversal |
|
Video standards
|
- H.264, H.265, H.263 for TANDBERG MXP interop only (check admin guide) |
|
Video inputs
|
- Two HDMI inputs support formats up to maximum 1080p60
- Three HDMI inputs support formats up to maximum UHD (3840 x 2160) @ 30 fps including HD1080p60
- One 3G-SDI/HD-SDI input supports formats up to maximum 1080p60
- Extended Display Identification Data (EDID)
- Consumer Electronics Control (CEC) 2.0 |
|
Video outputs
|
- Two HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60) (one or two in use for embedded screens)
- One HDMI output supports formats up to 3840 x 2160@30 fps (4Kp30)
- Consumer Electronics Control (CEC) 2.0 |
|
Encode and decode
|
- Video stream: Full HD 1080p60
- Content stream: 4K 2160p15 |
|
Audio standards
|
- G.711, G.722, G.722.1, G.729AB, 64 kbps and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS |
|
Audio features
|
- High-quality 20 kHz audio
- Eight separate acoustic echo cancellers
- Eight-port audio mixer
- Eight assignable equalizers
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization |
|
Audio inputs
|
- Eight microphones, 48V phantom powered, Euroblock connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
- Three HDMI, digital: stereo PC/DVD input |
|
Audio outputs (external)
|
- Six balanced line level outputs, Euro block connector
- Three HDMI outputs (one or two in use for embedded screens)
- HDMI input #1 supports Audio Return Channel (ARC). Audio output to Quad Camera |
|
Audio system
|
- Integrated full-range multichannel and bass speakers
- Frequency response: 45 Hz to 20 kHz
- Max output level SPL 104dB @ 1m |
|
Speaker tracking
|
- 6-element microphone array for accurate speaker tracking |
|
Dual stream
|
- H.239 (H.323) dual stream
- Binary Floor Control Protocol (BFCP) (SIP) dual stream
- Supports resolutions up to 3840 x 2160p15 (4Kp15) and 1080p60 |
|
Wireless sharing
|
- Cisco Webex client (up to 3840 x 2160p5)
- Cisco Intelligent Proximity client (up to 1920 x 1080p5) |
|
Multipoint support
|
- 5-way embedded SIP/H.323 conferencing capability with MultiSite option |
|
MultiSite features (embedded multipoint) (optional upgrade)
|
- Adaptive SIP/H.323 MultiSite
+ 3-way resolution up to 1080p30 + content up to 4Kp15
+ 4-way resolution up to 720p30 + content up to 4Kp15
+ 5-way resolution up to 720p30 + content up to 4Kp15
- Full individual audio and video transcoding
- H.323/SIP/VoIP in the same conference
- Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
- Best impression (automatic continuous presence layouts)
- Encryption and dual stream from any site |
|
Protocols
|
- H.323
- SIP
- Webex |
|
Embedded encryption
|
- H.323 and SIP point to point
- Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
- Automatic key generation and exchange |
|
IP network features
|
- DNS lookup for service configuration
- Differentiated services (Quality of Service [QoS])
- IP-adaptive bandwidth management (including flow control)
- Automatic gatekeeper discovery
- Dynamic playout and lip-sync buffering
- H.245 Dual-Tone Multi-frequency (DTMF) tones in H.323
- DTMF tones in SIP, RFC 4733
- Date and time support using Network Time Protocol (NTP)
- Packet loss-based downspeeding
- Uniform Resource Identifier (URI) dialing
- TCP/IP
- Dynamic Host Configuration Protocol (DHCP)
- 802.1X network authentication
- 802.1Q Virtual LAN
- 802.1p (QoS and class of service [CoS])
- Cisco Media Assure and ClearPath |
|
Call control
|
- Cisco Collaboration Cloud/Webex
- Cisco Unified Communications Manager (UCM)
+ Native registration with UCM
+ Requires UCM Version 10.5.2 or later with device pack for Room 70 G2
- Cisco Video Communication Server (VCS)
+ Native registration with VCS
- Third-party H.323 gatekeepers and standards-based SIP proxies |
|
Cisco TelePresence Management Suite (TMS)
|
- Support for Room 70 G2 beginning with version TMS 15.6.2 (available December 2018) |
|
IPv6 network support
|
- Single call stack support for both H.323 and SIP
- Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
- Support for both static and automatic IP configuration, stateless address auto configuration, and DHCPv6 |
|
Security features
|
- Management using HTTPS and SSH
- IP administration password
- Password to access administration features on Touch controller
- Disable IP services
- Network settings protection |
|
Certificate management
|
- Certificate Authority Proxy Function (CAPF) support for additional security
- Manufacturer-Installed Certificates (MIC)
- Locally Significant Certificates (LSC)
- X.509 digital certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported |
|
Network interfaces codec medium
|
- One Ethernet (RJ-45) 10/100/1000 for LAN
- Two Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
- Two Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE). One dedicated for direct pairing with Cisco Touch 10
- Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN
- 2x2 Multiple Input and Multiple Output (MIMO) |
|
Other interfaces
|
- 2x USB A port, USB-B, uUSB, factory reset pinhole |
|
Power
|
- Autosensing power supply
- 100-240 VAC, 50/60 Hz
- Dual-screen system: Average 470 W *
- Single-screen system: Average 258 W *
* Power consumption under normal operating conditions as defined in IEC 60950-1
|
|
Operating temperature and humidity
|
- 0° to 35° C (32° to 95° F) ambient temperature
- 20% to 90% relative humidity (RH)
- Max operating altitude: 3000 meters (9842 ft.) |
|
Storage and transport temperature
|
- -20° to 60° C (-4° to 140° F) at RH 10% to 90% (noncondensing) |
|
Dimensions
|
- Webex Room 70D G2 with floor stand:
+ Width: 124.76 in (3169 mm)
+ Height: 75.59 in (1920 mm)
+ Depth: 36.22 in (920 mm)
+ Weight, monitor module: 390.22 lb (177 kg)
+ Weight, floor stand: 77.16 lb (35 kg)
+ Weight: 471.79 lb (214 kg)
- Webex Room 70D G2 with wall mount:
+ Width: 124.76 in (3169 mm)
+ Height: 49.53 in (1258 mm)
+ Depth: 5.91 in (150 mm)
+ Weight, monitor modules: 390.22 lb (177 kg)
+ Weight, wall mount: 88.18 lb (40 kg)
+ Weight: 485.02 lb (220 kg)
- Webex Room 70S G2 with wall mount:
+ Width: 62.83 in (1596 mm)
+ Height: 49.53 in (1258 mm)
+ Depth: 5.91 in (150 mm)
+ Weight, monitor module: 196.21 lb (89 kg)
+ Weight, wall mount: 57.32 lb (26 kg)
+ Weight: 253.53 lb (115 kg) |
|
Camera overview
|
- 5K Ultra HD camera
- Supports up to 60 fps
- 15.1 MP image sensor
- 1/1.7 CMOS
- 5x digital zoom (3 tele-lenses each with a 50° horizontal field of view)
- f/2.0 aperture
- 83° horizontal field of view; 51.5° vertical field of view
- Auto-framing (audio + face detect)
- 5120 x 2880 pixel resolution
- Auto focus, brightness, and white balance
- Focus distance 1 meter to infinity |
