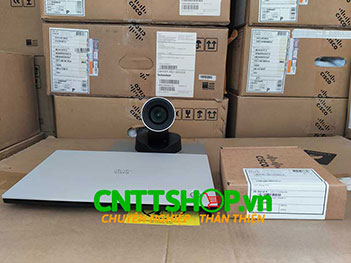

Cisco Video Conference SX20 CTS-SX20N-12X-K9
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị hội nghị truyền hình Cisco SX20 CTS-SX20N-12X-K9 có Kiểu dáng đẹp, nhỏ gọn, cho phép Chuyển đổi màn hình phẳng thành không gian họp độ phân giải cao 1080p. Cisco SX20 cung cấp độ phân giải lên tới 1080p60 - tương thích với video dựa trên tiêu chuẩn mà không mất tính năng
Cisco SX20 Datasheet
Các tính năng nổi bật của Cisco SX20:
- Đa phương tiện và thuyết trình có thể được chia sẻ chỉ bằng một nút bấm
- Hỗ trợ Cisco Intelligent Proximity để chia sẻ nội dung với thiết bị di động và chia sẻ không dây từ máy Mac và PC
- Hỗ trợ Switched Conferencing (SVC) cho bố cục nâng cao
- Dễ dàng điều khiển các thiết bị ngoại vi trong phòng như đèn, vách ngăn phòng, rèm cửa, trực tiếp từ bộ điều khiển Cisco Touch 10 (tùy chọn) thông qua API tùy chỉnh (yêu cầu bộ xử lý hệ thống điều khiển bên thứ ba bên ngoài)
- API cơ bản khả dụng qua IP (Telnet hoặc Secure Shell Protocol [SSH]) hoặc qua RS-232 với bộ điều hợp USB
- Màn hình kép
- Chia sẻ nội dung độ phân giải cao lên đến độ phân giải 1080p30
- Trải nghiệm tham gia cuộc họp được đơn giản hóa với một nút bấm (OBTP) cho các thiết bị được lên lịch trong các cuộc họp của Cisco Webex, cho dù đã đăng ký tại chỗ hoặc trên đám mây

Thông số kỹ thuật chi tiết của CTS-SX20N-12X-K9
Product delivered with |
- Cisco TelePresence Software Version TC 5.1 or later
- Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control) |

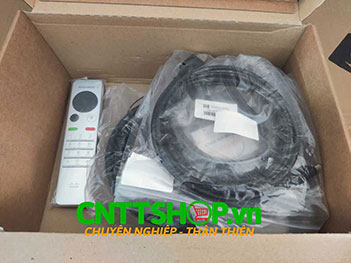

Product delivered with |

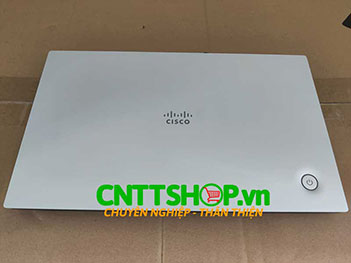

- SX20 Codec
- PrecisionHD 12x Camera
- Cisco Table Microphone 20
- TRC6 remote control
- Cables and power supply
|
Optional hardware components |
Cisco Touch 10 control unit
- Wall mount kit
- Additional microphone
- Presentation cable (VGA or HDMI)
- Camera mount bracket for 12X
- Spare: TRC5 remote control to be used with TC 7.3 software can be acquired as spare
|
Bandwidth |
H.323 and SIP up to 6 Mbps |
Minimum bandwidth for resolution/frame rate |
- 720p30 from 768 kbps
- 720p60 from 1152 kbps
- 1080p30 from 1472 kbps
- 1080p60 from 2560 kbps
|
Firewall Traversal |
- Cisco TelePresence Expressway Technology
- H.460.18, H.460.19 firewall traversal
|
Video standards |
H.263, H.263+, H.264 |
Video Features |
Native 16:9 widescreen
- Advanced screen layouts
- Local auto-layout
|
Audio Standards |
G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS |
Protocols |
H.323
- SIP
- ISDN (requires Cisco ISDN Link)
|
Camera overview part number |
- 12x optical zoom
- Motorized +15°/-25°tilt, +/- 90°pan
- 43.5° vertical field of view
- 70° horizontal field of view
- F 1.7
- 1920 x 1080 pixels progressive @ 60 fps
- Automatic or manual focus, brightness, and white balance
- Far-end camera control
- HDMI, HD-SDI output, and daisy chain
- Upside-down mounting, picture flips automatically
- Focus distance 0.3 m - infinity |
Security Features |
- Management using HTTPS and SSH
- IP administration password
- Menu administration password
- Disable IP services
- Network settings protection
|
Certificate management |
- Certificate Authority Proxy Function (CAPF) support for additional security
- Manufacturer-Installed Certificates (MIC)
- Locally Significant Certificates (LSC)
- X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
|

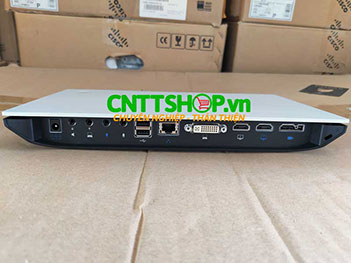

Network Interfaces |
- One LAN and Ethernet (RJ-45) 10/100/1000 Mbit |
Other Interfaces |
- Two USB ports can be used for serial control |
Power |
- Auto-sensing power supply
- 100 - 240 VAC, 50/60 Hz
- Maximum 40 watts for codec and main camera
|
Operating Temperature and Humidity |
- 0°C to 40°C (32°F to 104°F) ambient temperature
- 10% to 90% Relative Humidity (RH)
|
Storage and Transport Temperature |
-20°C to 60°C (-4°F to 140°F) at RH 10% - 90% (non -condensing) |
SX20 Codec Dimensions |
- Width: 11.8 inches (30.0 cm)
- Height: 1.4 inches (3.4 cm)
- Depth: 7.1 inches (18.0 cm)
- Weight: 3.1 pounds (1.4 kg)
|
