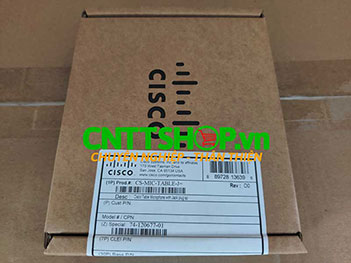

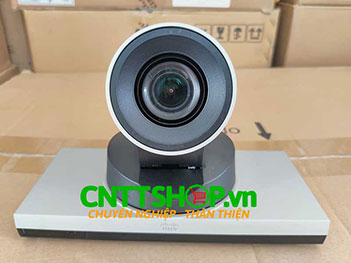

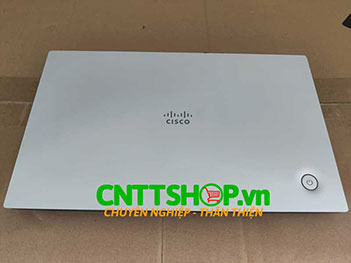

Thiết bị hội nghị truyền hình Cisco SX20 CTS-SX20N-P40-K9
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị hội nghị truyền hình Cisco SX20 CTS-SX20N-P40-K9 có thể chuyển đổi bất kỳ màn hình phẳng nào thành một hệ thống hội nghị truyền hình mạnh mẽ và đẹp mắt. Cisco SX20 được thiết kế để cung cấp video độ phân giải cao và hội thảo nhiều bên với sự linh hoạt để phù hợp với kích thước và cấu hình các loại phòng khác nhau - tất cả đều ở một mức giá. Cisco CTS-SX20N-P40-K9 hỗ trợ hỗ trợ đa điểm nhúng tùy chọn với công nghệ Cisco MultiSite, cho phép nhiều site tham gia vào cuộc gọi video.
Cisco SX20 Datasheet
SX20 Quick Set kết hợp bộ giải mã mạnh mẽ, độ phân giải cao cấp 1080p và tính năng hiển thị kép trong một giải pháp dễ triển khai và dễ sử dụng. Cho dù bạn là một doanh nghiệp nhỏ hay một doanh nghiệp lớn đang tìm cách mở rộng hệ thống hiện tại của mình, Cisco SX20 Quick Set with Precision 40 Camera mang lại hiệu suất mà bạn mong đợi.

Thông tin đặt hàng CTS-SX20N-P40-K9
Product Name
|
Part Number
|
Compliance Model Number
|
Cisco SX20 Quick Set with Precision 40 Camera
(CE8 software and TRC6 remote)
|
CTS-SX20N-P40-K9
|
TTC7-21 (SX20 Codec) TTC8-05 (4x Camera)
|
Cisco SX20 MultiSite option
|
LIC-SX20-MS
L-SX20-MS (through L-SX-SERIES-PAK)
|
|
Cisco Touch 10 Control Unit
|
CTS-CTRL-DVX-10
|
TTC5-09
|
Cisco Touch 10 PoE power injector
|
CTS-PWR-AIR-INJ5=
|
|
Cisco TelePresence Remote Control 5
|
CTS-RMT-TRC5=
|
|
Cisco TelePresence Remote Control 6 (for CE8)
|
CST-RMT-TRC6=
|
|
Cisco Table Microphone 20
|
CTS-MIC-TABL20
|
|
Wall Mount Kit for SX20
|
CTS-SX20-QS-WMK
|
|
Camera Break Out Cable to RJ45 and HDMI (both female)
|
CAB-PHD4XS2-SPLIT
|
|
Extension Cable for the Table Microphone 20
|
CAB-MIC20-EXT
|
|
Screen mount bracket for P40 camera
|
BRKT-P40-MONITR
|
|
Screen mount bracket for 12X camera
|
BRKT-12X-MONITR
|
|
Presentation cable DVI to HDMI (26 feet/8 meter)
|
CAB-DVI-HDMI-8M
|
|
Presentation cable DVI to VGA (26 feet/8 meter)
|
CAB-DVI-VGA-8M
|
|
Thông số kỹ thuật chi tiết của CTS-SX20N-P40-K9

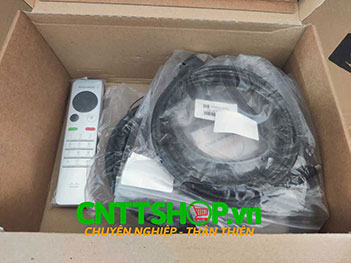

Product delivered with |
- Cisco TelePresence Software Version TC 5.1 or later
- Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control)
|
Product delivered with |
- SX20 Codec
- Cisco Precision 40 Camera
Cisco Table Microphone 20
- TRC6 remote control
- Cables and power supply
|
Optional hardware components |
Cisco Touch 10 control unit
- Wall mount kit
- Additional microphone
- Presentation cable (VGA or HDMI)
- Camera mount bracket for P40
- Spare: TRC5 remote control to be used with TC 7.3 software can be acquired as spare
|
Bandwidth |
H.323 and SIP up to 6 Mbps |
Minimum bandwidth for resolution/frame rate |
- 720p30 from 768 kbps
- 720p60 from 1152 kbps
- 1080p30 from 1472 kbps
- 1080p60 from 2560 kbps
|
Firewall Traversal |
- Cisco TelePresence Expressway Technology
- H.460.18, H.460.19 firewall traversal
|
Video standards |
H.263, H.263+, H.264 |
Video Features |
Native 16:9 widescreen
- Advanced screen layouts
- Local auto-layout
|

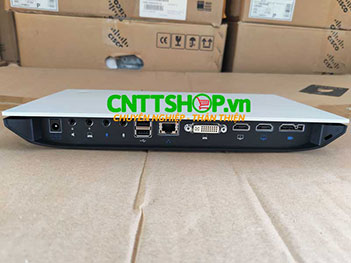

Video Inputs
(Two Inputs) |
One HDMI and One DVI-I (Analog and Digital); supports formats up to maximum 1920x1080 @ 60 fps (HD1080p60), including:
- 640x480
- 720x480
- 720x576
- 800x600
- 848x480
- 1024x768
- 1152x864
- 1280x720
- 1280x1024
- 1280x768
- 1280x800
- 1280x960
- 1360x768
- 1366x768
- 1400x1050
- 1440x900
- 1680x1050
- 1920x1080
Extended Display Identification Data (EDID)
|
Video Outputs
(Two Outputs)
|
Two HDMI Outputs Supported Formats:
- 1920 x 1080@60 fps (1080p60)
- 1920 x 1080@50 fps (1080p50)
- 1280 x 720@60 fps (720p60)
- 1280 x 720@50 fps (720p50)
- 1366 x 768@60 fps (WXGA)
- 1360 x 768@60 fps(WXGA)4
- 1280 x 768@60 fps (WXGA)4
- 1280 x 1024@60 fps4
- 1024 x 768@60 fps4
VESA Monitor Power Management (DPM)
CEC Power Management supported on HDMI output
EDID
Live Video Resolutions (Encode and Decode):
- 176 x 144@30, 60 fps (QCIF) (Decode only)
- 352 x 288@30, 60 fps (CIF)
- 512 x 288@30, 60 fps (w288p)
- 576 x 448@30, 60 fps (448p)
- 768 x 448@30, 60 fps (w448p)
- 704 x 576@30, 60 fps (4CIF)
- 1024 x 576@30, 60 fps (w576p)
- 640 x 480@30, 60 fps (VGA)
- 800 x 600@30, 60 fps (SVGA)
- 1024 x 768@30, 60 fps (XGA)
- 1280 x 768@30, 60 fps (WXGA)
- 1280 x 720@30, 60 fps (HD720p)
- 1920 x 1080@30, 60 fps (HD1080p)
|
Audio Standards |
G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS |
Protocols |
H.323
- SIP
- ISDN (requires Cisco ISDN Link)
|
Camera overview part number |
- 8x zoom (4x optical plus digital)
- Motorized +15°/-25°tilt, +/- 90°pan
- 43.5° vertical field of view
- 70° horizontal field of view
- F 1.7
- 1920 x 1080 pixels progressive @ 60 fps
- Automatic or manual focus, brightness, and white balance
- Far-end camera control
- Dual HDMI/Camera control
- Upside-down mounting, manual picture flip
- Focus distance 0.3 m - infinity |
