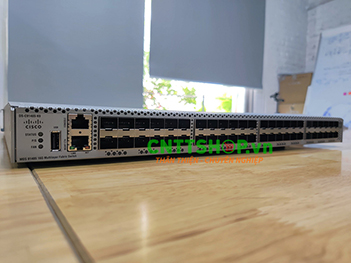

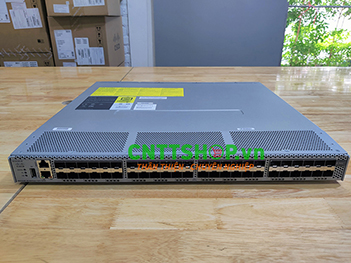

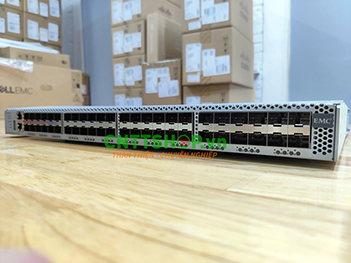

Cisco DS-C9148S-D12PSK9 MDS 9148S 16G Multilayer Fabric Switch

Cisco DS-C9148S-D12PSK9 MDS 9148S 16G Multilayer Fabric Switch with 12 enabled ports and 12 x 16G SW SFP+.

✓ Mã sản phẩm: DS-C9148S-D12PSK9
✓ Tình trạng: Còn Hàng
Check Giá List

Cam Kết Bán Hàng

✓ Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

✓ Giá Cạnh Tranh Rẻ Nhất Thị Trường

✓ Ưu Đãi Lớn Cho Đại Lý Và Dự Án

✓ Bảo Hành, Đổi Trả Nhanh Chóng

✓ Giao Hàng Trên Toàn Quốc

✓ Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

✓ Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

CNTTShop.vn - 19 năm Uy tín cung cấp Thiết bị mạng & Dịch vụ Mạng trên toàn quốc.

NTT03, Thống Nhất Complex, Thanh Xuân, Hà Nội. Số 31B, Đường 1, Phường An Phú, Quận 2 (Thủ Đức), TP HCM.

Cisco DS-C9148S-D12PSK9

Cisco Part Number
List Price
: $
Giá bán
Bảo hành
Made In
Stock

Cisco DS-C9148S-D12PSK9

Thông số kỹ thuật:

Ports
●  Fixed configuration with 48 ports of 16-Gbps Fibre Channel
●  Available in a 12-port configurable base or as a bundle with all 48 ports enabled
●  Enable incremental ports on the 12-port base model, with the 12-port On-Demand Activation license
Security
●   VSAN fabric isolation
●   Hardware zoning by Access Control Lists (ACLs)
●   Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication
●   FC-SP host-to-switch authentication
●   Role-based access control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions
●   Secure FTP (SFTP)
●   Secure Shell Protocol Version 2 (SSHv2)
●   Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES)
●   Control-plane security
Performance
●   Port speed: 2/4/8/16-Gbps autosensing with 16 Gbps of dedicated bandwidth per port
●   Buffer credits: Up to 256 for a group of 4 ports, with a default of 64 buffer credits per port and a maximum of 253 buffer credits for a single port in the group
●   PortChannel: Up to 16 physical links
Reliability and availability
●   ISSU
●   Hot-swappable, dual redundant power supplies
●   Hot-swappable fan tray with integrated temperature and power management
●   Hot-swappable SFP+ optics
●   Passive backplane
●   Stateful process restart
●   Any port configuration for PortChannels
●   Fabric-based multipathing
●   Per-VSAN fabric services
●   Port tracking
●   VRRP for management connections
●   Online diagnostics
Network management
Access methods
Out-of-band 10/100/1000 Ethernet port
 RS-232 serial console port
USB
Access protocols
CLI using the console and Ethernet ports
SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access
Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)
Distributed device alias service
Network security Per-VSAN RBAC using RADIUS and TACACS+-based authentication, authorization, and accounting (AAA) functions
SFTP
SSHv2 implementing AES
SNMPv3 implementing AES
Management applications
Cisco MDS 9000 Family CLI
Cisco Prime DCNM
Programming interfaces
●   Scriptable CLI
●   Cisco Prime DCNM web services API
Physical dimensions (HxWxD)
●   Dimensions (H x W x D): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm), 1RU
●   Rack-mountable in standard 19-inch Electronic Industries Alliance [EIA] rack
●   Weight of fully configured chassis: 19.84 lb (9 kg)
Power
●   Power supply: 300W AC (2 per switch)
●   Power cord: Notched C15 socket connector connecting to C16 plug on power supply
●   AC input characteristics
●   100 to 240V AC (10% range)
●   50 to 60 Hz (nominal)
●   Airflow: back to front (toward ports)
●   200 linear feet per minute (LFM) through system fan assembly
●   Cisco recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating
Temperature range
●   Temperature, ambient operating: 32 to 104°F (0 to 40°C)
●   Temperature, ambient non-operating and storage: -40 to 158°F (-40 to 70°C)
●   Relative humidity, ambient (noncondensing) operating: 10 to 90%
●   Relative humidity, ambient (noncondensing) non-operating and storage: 10 to 95%
●   Altitude, operating: -197 to 6500 ft (-60 to 2000m)
Software Cisco MDS 9000 NX-OS Software Release 6.2(9) or later supporting Cisco MDS 9148S and Cisco Prime DCNM
