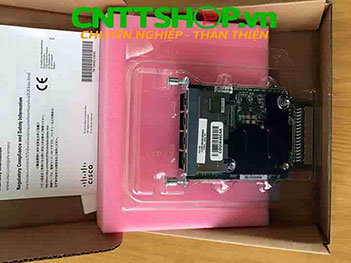

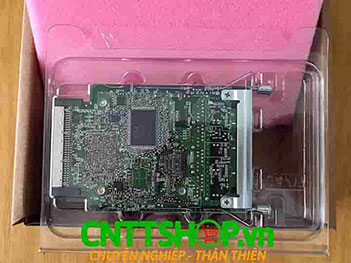

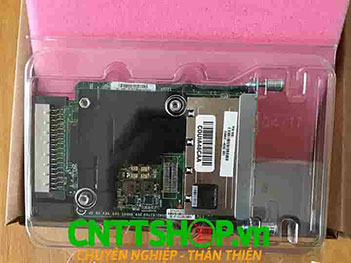

EHWIC-4ESG-P 4 Ports Cisco Gigabit EtherSwitch 10/100/1000BASE-TX with PoE Autosensing EHWIC

Features

EHWIC Switch

New Features

10/100/1000-T

√

√

IEEE 02.1Q Trunking

√

IEEE 802.1D Spanning Tree

√

Static and dynamic MAC address learning

√

IEEE 802.1x port-based and multiple supplicant

√

IEEE 802.3af (15.4W)

√

ePoE (20W)

√

IEEE 802.1p

√

IEEE 802.1u (guest VLAN)

√

Internet Group Management Protocol (IGMP) Snooping

√

Auxiliary VLANs

√

Number of VLANs supported (platform dependent)

16-64

√

4095 possible VLAN IDs

√

Shaped Deficit Weighted Round Robin (SDWRR) and fixed scheduling

√

√

Eight QoS queues per port

√

√

IEEE 802.1p for 802.1q tagged packets

√

Port-based priority for untagged packets

√

Priority override

√

Switched Port Analyzer (SPAN)

√

SPAN across multiple EHWICs

√

√

Number of Spanning Tree Protocol instances

1 per VLAN (64 maximum)

Per-port storm control

√

MAC notification

√

100 secure MAC addresses

√

Dynamic Secure Port

√

√

Secure port filtering (port security)

√

Private VLAN edge (protected port)

√

Intrachassis cascading (no external link between EHWIC cards)

√

√

Protected port (across multiple EHWICs)

√

√

Bridge protocol data unit (BPDU) guard

√

PortFast

√

Jumbo Frames

√

VLAN Trunking Protocol (VTP) (client, server, and transparent modes)

√

Per VLAN Spanning Tree (PVST)

√

Cisco EnergyWise technology

√

Per-port power monitoring and policing

√

√

HSRP, Virtual Router Redundancy Protocol (VRRP), and GLBP on VLAN interfaces

√

Automatic Media-Dependant Interface Crossed Over (Auto-MDIX)

√

MGF integration

√

Multiple cards automatically stacked, no CLI needed

√

√

Number of EHWIC slots limit the number of modules supported; the Cisco 1921 supports only one module

√

√

Complete integration with WLAN through MGF

√

√

CiscoWorks LAN Management Solution (LMS)

√

Remote Monitoring (RMON) support

√

Manufacturer

Cisco

Product ID

EHWIC-4ESG-P

Product Description

Cisco Four port 10/100/1000 Ethernet switch interface card with PoE

Product Type

Interface Module

Application/Usage

Data Networking

Wide Area Network

Interfaces/Ports

4 x 10/100/1000Base-T WAN

Interfaces/Ports Details

4 x RJ-45 10/100/1000Base-T Network WAN

PoE Support

Yes

Power over Ethernet

20W

Connectivity Media

Twisted Pair 10/100/1000Base-T

Data Transfer Rate

10 Mbps Ethernet

100 Mbps Fast Ethernet

1 Gbps Gigabit Ethernet

Management

• Web-Based Management

• Command Line Interface

• SNMP v1, v2, v3

• RMON 1, 2, 3, 9

• Telnet

• VLAN

• QoS

• MIB

Dimensions:

0.8" Height x 3.1" Width x 4.8" Depth

Weight (Approximate):

2.72 oz

Supported Platforms

Number of Modules Supported

Cisco 3945E ISR

3

Cisco 3925E ISR

3

Cisco 3945 ISR

4

Cisco 3925 ISR

4

Cisco 2951 ISR

4

Cisco 2921 ISR

4

Cisco 2911 ISR

4

Cisco 2901 ISR

4

Cisco 1941W ISR

2

Cisco 1941 ISR

2

Cisco 1921 ISR

1
