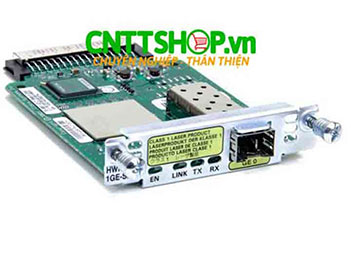

HWIC-1GE-SFP 1 Port 1GE SFP Routed Port HWIC Cisco Router High-Speed WAN Interface Card

Manufacturer

Cisco

Product ID

HWIC-1GE-SFP

Product Description

Cisco GigE High Speed WIC With One SFP Slot

Product Type

HWIC

Technical Information

Wide Area Network

Media & Performance

Data Transfer Rate:

1 Gbps Gigabit Ethernet

I/O Expansions

Expansion Slots:

1 x SFP (mini-GBIC)

Daughter Cards:

No

Management & Protocols

Management:

· CiscoWorks

· Simple Network Management Protocol (SNMP) support

· Remote Monitoring (RMON) support

· Cisco NetFlow accounting

· VLAN

Protocols:

VRRP, HSRP, RMON, SNMP, MPLS, IPSec, IGMP, CGMP, GLBP

Security Features:

IPSec

Environmental Conditions

Temperature:

32°F (0°C) to 104°F (40°C) Operating

-4°F (-20°C) to 149°F (65°C) Storage

Humidity:

10% to 90% Non-condensing Relative Humidity

Physical Characteristics

Dimensions:

0.8" Height x 3.1" Width x 4.8" Depth

Miscellaneous

Additional Information:

· Jumbo frame support up to 9576 bytes

· Hot insertion and removal for SFPs on all platforms

· Media or SFP type display through a command-line interface (CLI)

· Gigabit EtherChannel for link redundancy

· Layer 3 VPN support

System Requirements:

Minimum IOS Software Requirement: Cisco IOS Software Release 12.3(8)T4

Certifications & Standards:

· IEEE 802.3 with 802.2 SAP

· IEEE 802.3 with 802.2 and SNAP

· IEEE 802.1p

· IEEE 802.1q VLAN

· Gigabit Ethernet IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab

Agency Approvals:

· UL 1950 (United States)

· CSA-C22.2 #950 (Canada)

· EN60950 (Europe)

· TUV GS (Germany)

· IEC 950 (International)

Immunity:

· EN300386

· EN55024/CISPR24

· EN50082-1

Emissions:

· FCC Part 15 Class A

· ICES-003 Class A

· EN55022 Class A

· CISPR22 Class A

· AS/NZS 3548 Class A

· VCCI Class A

· EN 300386

· EN61000-3-3

· EN61000-3-2

Supported Platforms

Minimum Software Image

Minimum Software Package

Cisco 1921

15.0(1)M2

IP Base

Cisco 1941

15.0(1)M

IP Base

Cisco 1941W

15.0(1)M

IP Base

Cisco 2901

15.0(1)M

IP Base

Cisco 2911

15.0(1)M

IP Base

Cisco 2921

15.0(1)M

IP Base

Cisco 2951

15.0(1)M

IP Base

Cisco 3925

15.0(1)M

IP Base

Cisco 3945

15.0(1)M

IP Base

Cisco 3925E

15.1(1)T2

IP Base

Cisco 3945E

15.1(1)T2

IP Base

Cisco 1841

12.4(15)T9

IP Base

Cisco 1861

12.4(20)T3

IP Base

Cisco 2801

12.4(15)T9

IP Base

Cisco 2811

12.3(8)T4

IP Base

Cisco 2821

12.3(8)T4

IP Base

Cisco 2851

12.3(8)T4

IP Base

Cisco 3825

12.3(8)T4

IP Base

Cisco 3845

12.3(8)T4

IP Base

1000BASE-T

GLC-T=

100 m

Category 5, 5e, 6

RJ-45

1000BASE-SX

GLC-SX-MM=

300 m

62.5/125 micrometer MMF

LC connector

500 m

50/125 micrometer MMF

1000BASE-LX/LH

GLC-LH-SM=

550 m

50/125 micrometer or 62.5/125 micrometer MMF

LC connector

10 km

9/125 micrometer SMF

1000BASE-ZX

GLC-ZX-SM=

80 km

9/125 micrometer SMF

LC connector

1000BASE-CWDM

CWDM-SFP-1470=
CWDM-SFP-1490=
CWDM-SFP-1510=
CWDM-SFP-1530=
CWDM-SFP-1550=
CWDM-SFP-1590=
CWDM-SFP-1610=

100 km

9/125 micrometer SMF

LC connector
