HWIC-D-9ESW-POE Cisco 9 Port PoE EtherSwitch 10BASE-T/100BASE-TX

Phân phối HWIC-D-9ESW-POE (HWIC D 9ESW POE) Cisco 9 Port PoE EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC Router Card chính hãng giá tốt

Mã sản phẩm: HWIC-D-9ESW-POE


HWIC-D-9ESW-POE Cisco 9 Port PoE EtherSwitch 10BASE-T/100BASE-TX autosensing

Part Number           : HWIC-D-9ESW-POE
Spare Part Number : HWIC-D-9ESW-POE=

Bảo hành                 : 12 tháng
Made In                   : Asia

Mô tả tổng quan Card Router Cisco HWIC-D-9ESW-POE

Card HWIC-D-9ESW-POE của Cisco trang bị 9 cổng chuyển mạch 10/100 để tích hợp với các thiết bị định tuyến Integrated Services Routers của Cisco (ISR2). Card HWIC-D-9ESW-POE để mở rộng hệ thống mạng hay cung cấp các kết nối trực tiếp tới router. Card HWIC-D-9ESW-POE hỗ trợ chuẩn PoE 802.3af cung cấp nguồn cho các thiết bị Camera, IP Phone, Wifi....

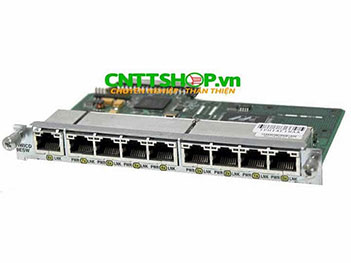

HWIC-D-9ESW-POE Cisco 9-port PoE EtherSwitch 10BASE-T/100BASE-TX autosensing

Các tính năng của Cisco HWIC-D-9ESW-POE



Target Applications

Data, voice, and video

Supported Router Platforms

● Cisco 1800 (modular), Cisco 2800, and Cisco 3800 series integrated services routers:
● Cisco 2801
● Cisco 2811
● Cisco 2821
● Cisco 2851
● Cisco 3825
● Cisco 3845
• Cisco 1941
• Cisco 2901
• Cisco 2911
• Cisco 2921
• Cisco 2951
• Cisco 3925
• Cisco 3945

Form Factor

Double-wide HWIC form factor

Dimensions (W x D x H)

6.20 x 4.74 x 0.76 in


196 grams (0.43 lb)


IEEE Protocols

● Ethernet: IEEE 802.3, 10BASE-T
● Fast Ethernet: IEEE 802.3u, 100BASE-TX
● IEEE 802.1d Spanning Tree Protocol
● IEEE 802.1p CoS for Traffic Prioritization
● IEEE 802.1q VLAN
● IEEE 802.1x Security
● IEEE 802.3x Full Duplex
● IEEE 802.3af Power over Ethernet Standard


RFC 2284, PPP Extensible Authentication Protocol (EAP)


● RFC 1213
● OSPF MIB (RFC 1253)


● SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management.
● An embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.
● A Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer.
● Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.
● Network Timing Protocol (NTP) provides an accurate and consistent time stamp to all switches within theintranet.
● Two LEDs per port provide convenient visual indication of the port link and inline power status.
● Crash information support helps enable a switch to generate a crash file for improved troubleshooting.
● Show-interface capabilities provide information about the configuration capabilities of any interface.
● The Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device.

Connectors and Cabling

● 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
● 100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling


● Link status LED: One LED per port for indicating link status
● Inline power LED: One LED per port system for inline power status indication

Power Requirements

Internal Power Supply

Optional PoE system power supply available for all Cisco 2800 and Cisco 3800 series routers

External Redundant Power Supply (RPS2300)

Optional for the Cisco 2800 series and Cisco 2900 Series routers

Internal Redundant Power Supply

For the Cisco 3845, 3925 and 3945 router only

DC Power Support

● DC system power input available on the Cisco 2811/2911, Cisco 2821/2921, Cisco 2851/2951, Cisco 3825/3925, and Cisco 3845/3945 routers; PoE option not available with DC system power input

Software Support

● Minimum Cisco IOS Software Release 12.3(8)T for 1841. 280 Series and 3800 Series routers:
IP Base image.
• Minimum Cisco IOS Software Release 15.0(1)M for Cisco 1900 Series, Cisco 2900 Series and
Cisco 3900 Series routers: IP Base License of the Universal image.


Operating Temperature

32 to 104°F (0 to 40°C)

Operating Humidity

10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating

Nonoperating Temperature

-4 to 149°F (-20 to 65°C)

Operating Altitude

(Moderate 1.5°C per 1000 feet)

Regulatory Compliance, Safety, EMC

● When installed in a Cisco 1841, Cisco 2800, or Cisco 3800 router, the Cisco EtherSwitch HWIC meets the standards (regulatory compliance, safety, EMC) of the router itself. Refer to the data sheets for the Cisco 1841, Cisco 2800, and Cisco 3800 series routers for more details

Thông số kỹ thuật Card Router Cisco HWIC-D-9ESW-POE



Product ID


Product Description

Cisco 9 port 10/100 PoE Ethernet switch interface card

Product Type

Interface Module

Technical Information


Data Networking

Wide Area Network



9 x 10/100Base-T WAN

Interfaces/Ports Details

9 x RJ-45 10/100Base-T Network WAN

Media & Performance

Connectivity Media

Twisted Pair 10/100Base-T

Data Transfer Rate

10 Mbps Ethernet

100 Mbps Fast Ethernet

Management & Protocols


  • Web-Based Management

  • Command Line Interface

  • SNMP v1, v2, v3

  • RMON 1, 2, 3, 9

  • Telnet

  • VLAN

  • QoS

  • MIB

Physical Characteristics


6.20 x 4.74 x 0.76 in


196 grams (0.43 lb)
