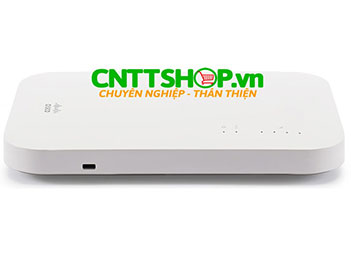

Cisco Meraki MR12-HW Cloud Managed 802.11n Access Point

WI-FI

Radios

• 802.11b/g/n radio
• Max throughput 300 Mbit/s
• Operating band: 2.412-2.484 GHz

802.11n Capabilities

• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• Packet aggregation
• 20 and 40 MHz channels
• Cyclic shift diversity (CSD) support

Power

• Power over Ethernet: 24 - 57 V (802.3af compatible)
• 12V DC
• Power consumption: 6.5 W max
• Power over Ethernet injector and DC adapter sold separately

Mounting

• All standard mounting hardware included
• Desktop
• Wall mount
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes

Physical Security

• Security screw included
• Kensington lock hard point, Anti-tamper cable bay
• Concealed mount plate

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 7.3” x 5.8” x 1.0” (185 mm x 147 mm x 25 mm) not including deskmount feet or mount plate
• Weight: 16 oz (0.45 kg)

Antenna

• Integrated omni-directional antennas
• Gain: 3 dBi

Interfaces

• 1x 100/1000Base-T Ethernet (RJ45) with 48V DC 802.3af PoE,
• 1x 10/100Base-T Ethernet (RJ45)
• 1x DC power connector (5mm x 2.1mm, center positive)

Security

• Integrated policy firewall (Identity Policy Manager)
• Mobile device policies
• Air Marshal: Real-time WIPS (wireless intrusion prevention system) with alarms
• Rogue containment policies
• Guest isolation
• Teleworker VPN with IPsec
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1q)

Quality of Service

• Wireless Quality of Service (WMM/802.11e)
• DSCP (802.1p)
• Layer 7 application traffic shaping and firewall

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• L3 roaming

LED Indicators

• 4 signal strength
• 1 Ethernet connectivity
• 1 power/booting/firmware upgrade status
