| Specifications |
| Radios |
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Concurrent operation of all four radios
- Supported frequency bands (country-specific restrictions apply)
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
|
| Antenna |
Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz) |
| 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities |
- DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
- 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
- Maximal ratio combining (MRC) & beamforming
- 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
- Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
- Packet aggregation
|
| Power |
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Alternative: 12 V DC input
- Power consumption: 15W max (802.3at)
- Power over Ethernet injector and DC adapter sold separately
|
| Interfaces |
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
|
| Mounting |
- All standard mounting hardware included
- Desktop, ceiling, and wall mount capable
- Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
|
| Physical Security |
- Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
|
| Environment |
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
|
| Physical Dimensions |
- 9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate
- Weight: 492 g
|
| Security |
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1q) and tunneling with IPsec VPN
- PCI compliance reporting
- WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Cisco ISE integration for Guest access and BYOD Posturing
|
| Quality of Service |
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
|
| Mobility |
- PMK, OKC, & 802.11r for fast Layer 2 roaming
- Distributed or centralized layer 3 roaming
|
| Analytics |
- Embedded location analytics reporting and device tracking
- Global L7 traffic analytics reporting per network, per device, & per application
|
| LED Indicators |
1 power/booting/firmware upgrade status |
| Regulatory |
- RoHS
- For additional country-specific regulatory information, please contact Meraki sales
|
| Warranty |
Lifetime hardware warranty with advanced replacement included |
| Ordering Information |
- MR36-HW: Meraki MR36 Cloud Managed 802.11ax AP
- MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
- MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- Note: Meraki access point license required.
|
| Compliance and Standards |
| IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u |
| Safety Approvals |
- CSA and CB 60950 & 62368
- Conforms to UL 2043 (Plenum Rating)
|
| Radio Approvals |
- Canada: FCC Part 15C, 15E, RSS-247
- Europe: EN 300 328, EN 301 893
- Australia/NZ: AS/NZS 4268
- Mexico: IFT, NOM-208
- Taiwan: NCC LP0002
- For additional country-specific regulatory information, please contact Meraki Sales
|
| EMI Approvals (Class B) |
- Canada: FCC Part 15B, ICES-003
- Europe: EN 301 489-1-17, EN 55032, EN 55024
- Australia/NZ: CISPR 22
- Japan: VCCI
|
| Exposure Approvals |
- Canada: FCC Part 2, RSS-102
- Europe: EN 50385, EN 62311, EN 62479
- Australia/NZ: AS/NZS 2772
|
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: MR36-HW ?

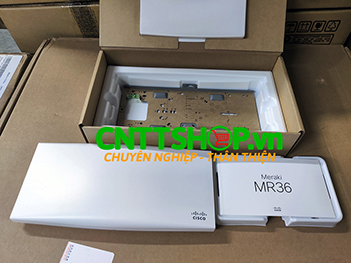

Chào anh/chị, phụ kiện đi kèm bộ phát wifi meraki MR36-HW bao gồm sách hướng dẫn, giấy phép để thêm thiết bị vào cloud, bộ vít nở và chân đế để treo tường ạ.
CNTT Shop có phân phối wifi Meraki với giá tốt nhất thị trường, giá của bộ phát wifi Meraki MR36-HW đã được gửi vào mail, bạn vui lòng check mail để biết thông tin nhé.
Chào anh/chị, bộ phát wifi Meraki MR36-HW có thể cấu hình được tối đa 15 mạng wifi (SSID), tuy nhiên nhà sản xuất khuyến nghị không nên tạo nhiều hơn 3 SSID ạ.
Chào anh/chị, bộ phát wifi Meraki MR36-HW có khả năng chịu tải tối đa 1024 client theo thông số của hãng đưa ra ạ.
CNTTShop đã gửi báo giá mã wifi Meraki MR36-HW qua mail cho anh rồi ạ. Anh vui lòng check mail nhé
